$78.57 / EA
Local stock: 0
Lead time:
1
-
2
working days

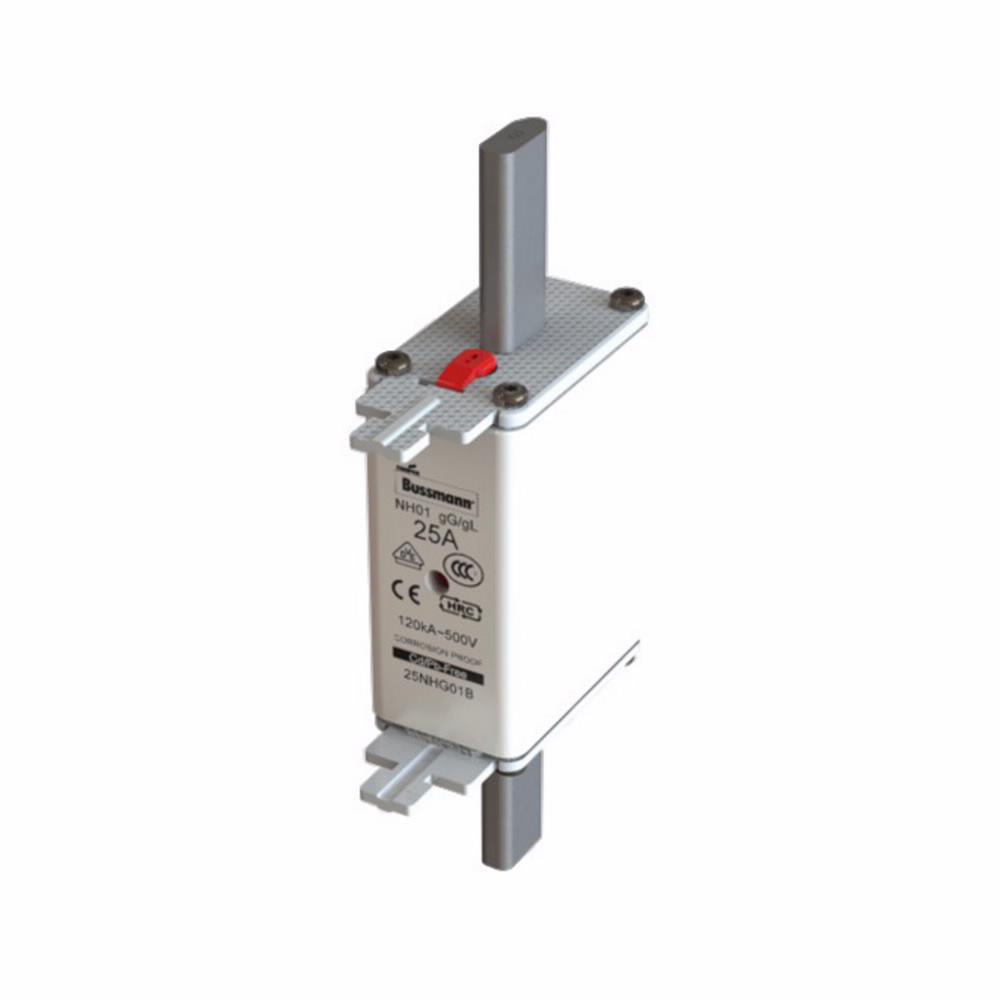

Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 25A, 120 kAIC, Combination fuse status indicator, fuse, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Ceramic body
Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 25A, 120 kAIC, Combination fuse status indicator, fuse, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Ceramic body
Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class...150
Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.
- UPC
- 051712625920
- UNSPSC
- 39121627
- Country of Origin
- IN
- Amperage Rating:
- 25 A
- Material:
- Ceramic
- Type:
- Low voltage NH fuse
- Voltage Rating:
- 500 V
- Amperage Rating:
- 25 A
- Class:
- Class C gL/gG
- Connection:
- Blade end
- Dimensions:
- 5.3150 IN X 1.1634 IN X 2.2756 IN
- Interrupt Rating:
- 120 kAIC
- Material:
- Ceramic
- Standard:
- CCC Marked ,CCC Marked ,CCC gemarkeerd ,UL Listed ,CCC Marked ,Répertorié UL ,UL Listed ,CCC Marked ,UL Listed ,UL Listed ,Marqué CCC ,UL geregistreerd,CE-Kennzeichnung,RoHS-konform,Conforme a RoHS,Conformité RoHS,Marquage CE,RoHS Compliant,CE-markering,RoHS-compliant,CE Marked,RoHS-kompatibel,CE-merket,Con marchio CE
- Sub Brand:
- Bussmann Series
- Type:
- Low voltage NH fuse
- Voltage Rating:
- 500 V
