$3.14 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

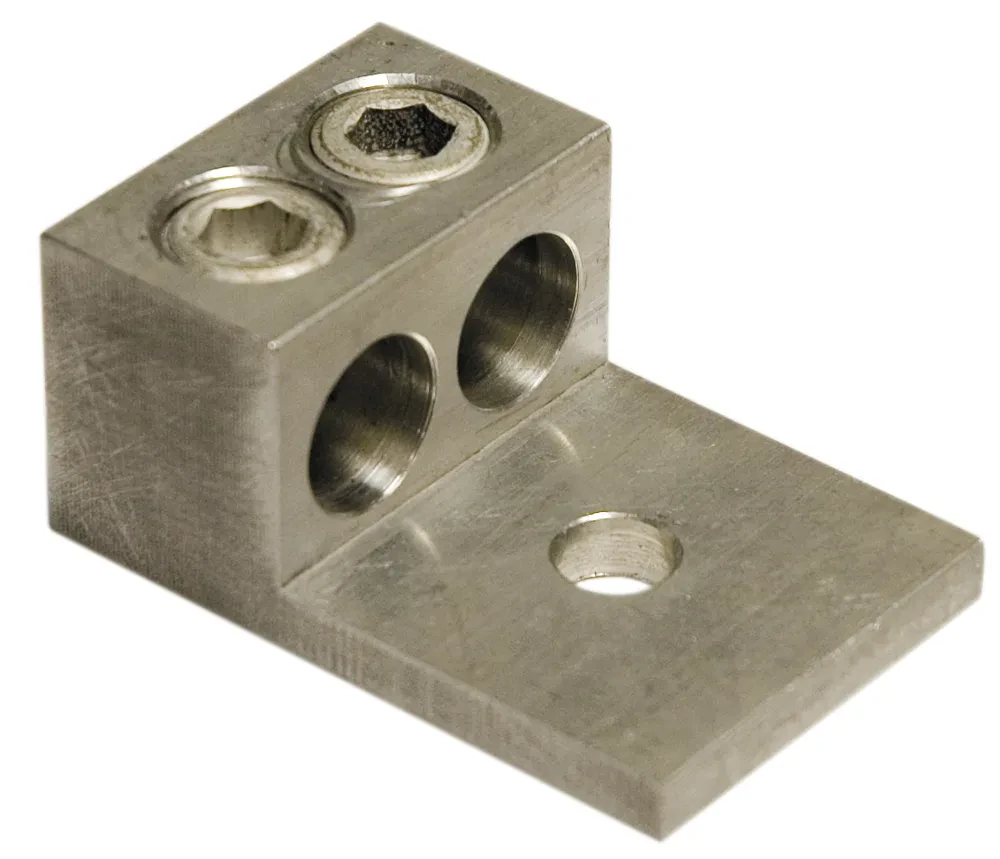

Mechanical Lug Double - Dual Rated, Aluminum, #14 - 1/0
Mechanical Lug Double - Dual Rated, Aluminum, #14 - 1/0
Topaz carries a complete line of mechanical lugs fabricated from strong and long-lasting aluminum th...150
Topaz carries a complete line of mechanical lugs fabricated from strong and long-lasting aluminum that provide maximum conductivity in a compact and efficient design. Available in a variety of assemblies for multiple applications. Two conductor design features easy installation and is temperature rated up to 90�C. Provides positive grounding points in load centers or other metal enclosures. All models UL listed and confidently backed by the Topaz lifetime guarantee.
- Two conductor design
- Fast and easy installation
- 90�C temperature rating
- Two conductor design
- Fast and easy installation
- 90�C temperature rating
- UPC
- 751338818309
- UNSPSC
- 39121405
- Country of Origin
- MUL
- Material:
- Aluminum
- Size:
- 1.50 x 1.1875 x 0.8125 IN
- Type:
- Solderless Double Hole Lug
- Cable Range:
- 14 to 1/0
- Cable Size:
- 14 to 1/0 AWG
- Cable Type:
- 14 to 1/0 AWG
- Environmental Conditions:
- 90
- For Use With:
- Copper or Aluminum Conductor
- Hole Diameter:
- 0.25 IN
- Label Description:
- SOLDERLESS LUGS
- Material:
- Aluminum
- Number Of Holes:
- 2
- Size:
- 1.50 x 1.1875 x 0.8125 IN
- Standard:
- UL 467, UL File Number E155861, US Federal Specification Number A-A-50552, CSA Certified, NEMA/ANSI FB-1, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D
- Type:
- Solderless Double Hole Lug
- Wire Size:
- #14 - 1/0
819-TOPAZ
$34.96 /ea
3/8" Mechanical Lug Single, Aluminum 350 MCM - 800 MCM
Attributed Data | Included |
---|---|
Cable Range | 350 to 800 Yes |
Cable Size | 350 to 800 MCM Yes |
Cable Type | 350 to 800 MCM Yes |
Environmental Conditions | 90 Yes |
For Use With | Copper or Aluminum Conductor Yes |
Label Description | SOLDERLESS LUGS Yes |
Material | Aluminum Yes |
Number Of Holes | 1 Yes |
Standard | UL 467, UL File Number E155861, US Federal Specification Number A-A-50552, CSA Certified, NEMA/ANSI FB-1, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D Yes |
Type | Solderless Single Hole Lug Yes |
Wire Size | 350 MCM - 800 MCM Yes |
3202-TOPAZ
$1.88 /ea
Two Hole - Long Barrel Compression Lugs, #6, 1/4" Bolt Size, Blue Color Code
Attributed Data | Included |
---|---|
Cable Range | 6 Yes |
Cable Size | 6 AWG Yes |
Cable Type | 6 AWG Yes |
Color | Blue Yes |
Label Description | COMPRESSION LUGS Yes |
Material | Copper Yes |
Number Of Holes | 2 Yes |
Standard | UL 467, UL File Number E155861, US Federal Specification Number A-A-50552, NEMA/ANSI FB-1, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D Yes |
Type | Compression Long Barrel Lug Yes |
3011-TOPAZ
$14.06 /ea
One Hole - Long Barrel Compression Lugs, 500 MCM Wire, 1/2" Bolt Size, Brown Color Code
Attributed Data | Included |
---|---|
Label Description | COMPRESSION LUGS Yes |
Product Image | |||
---|---|---|---|
819-TOPAZ
3/8" Mechanical Lug Single, Aluminum 350 MCM - 800 MCM
$34.96 / EA
|
3202-TOPAZ
Two Hole - Long Barrel Compression Lugs, #6, 1/4" Bolt Size, Blue Color Code
$1.88 / EA
|
3011-TOPAZ
One Hole - Long Barrel Compression Lugs, 500 MCM Wire, 1/2" Bolt Size, Brown Color Code
$14.06 / EA
|
|
Attributed Data | |||
AMP Rating (AMP) | 486 AMP 486 AMP | ||
Amperage Rating | 486 A 486 A | ||
Bolt (IN) | 1/4 IN 1/4 IN | 3/8 IN 3/8 IN | |
Cable Range | 6 6 | 350 to 800 350 to 800 | |
Cable Size | 6 AWG 6 AWG | 350 to 800 MCM 350 to 800 MCM | |
Cable Type | 6 AWG 6 AWG | 350 to 800 MCM 350 to 800 MCM | |
Color | Blue Blue | ||
Environmental Conditions | 90 90 | ||
For Use With | Copper or Aluminum Conductor Copper or Aluminum Conductor | ||
Hole Diameter | 0.50 IN 0.50 IN | ||
Hole Spacing | 0.625 IN 0.625 IN | ||
Label Description | COMPRESSION LUGS COMPRESSION LUGS | SOLDERLESS LUGS SOLDERLESS LUGS | |
Material | Aluminum Aluminum | Copper Copper | |
Number Of Holes | 1 1 | 2 2 | |
Size | 2.24 x 0.42 IN 2.24 x 0.42 IN | 3.50 x 1.50 x 1.75 IN 3.50 x 1.50 x 1.75 IN | |
Standard | UL 467, UL File Number E155861, US Federal Specification Number A-A-50552, CSA Certified, NEMA/ANSI FB-1, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D UL 467, UL File Number E155861, US Federal Specification Number A-A-50552, CSA Certified, NEMA/ANSI FB-1, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D | UL 467, UL File Number E155861, US Federal Specification Number A-A-50552, NEMA/ANSI FB-1, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D UL 467, UL File Number E155861, US Federal Specification Number A-A-50552, NEMA/ANSI FB-1, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D | |
Stud Size | 0.25 in 0.25 in | 0.375 in 0.375 in | |
Type | Compression Long Barrel Lug Compression Long Barrel Lug | Solderless Single Hole Lug Solderless Single Hole Lug | |
Voltage (V) | 35000 V 35000 V | ||
Voltage Rating | 35,000 V 35,000 V | ||
Wire Size | 350 MCM - 800 MCM 350 MCM - 800 MCM | ||
