Videos & documents
Documents
2807
SKU: 2807TZ
MPN: 2807
Key specs
View all- Material
- Aluminum
- Size
- 1.50 x 1.1875 x 0.8125 IN
- Type
- Solderless Double Hole Lug
Description
Product overview

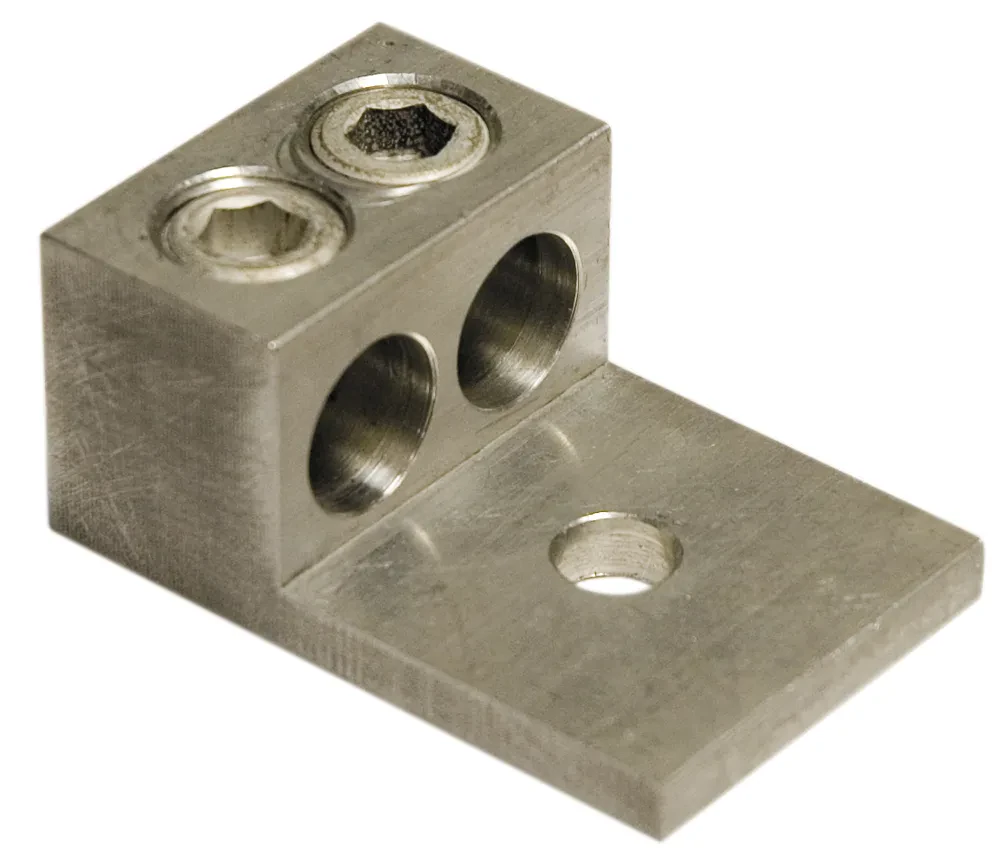

Mechanical Lug Double - Dual Rated, Aluminum, #14 - 1/0
Mechanical Lug Double - Dual Rated, Aluminum, #14 - 1/0
Manufacturer highlights
Topaz carries a complete line of mechanical lugs fabricated from strong and long-lasting aluminum that provide maximum conductivity in a compact and e...
Topaz carries a complete line of mechanical lugs fabricated from strong and long-lasting aluminum that provide maximum conductivity in a compact and efficient design. Available in a variety of assemblies for multiple applications. Two conductor design features easy installation and is temperature rated up to 90'C. Provides positive grounding points in load centers or other metal enclosures. All models UL listed and confidently backed by the Topaz lifetime guarantee.
- Two conductor design
- Fast and easy installation
- 90'C temperature rating
Additional manufacturer notes
- Short name
- TPZ
- Feed description
- TPZ 2807 ALUM.LUG DOUBLE 1/0 10/100
- Invoice description
- ALUM.LUG DOUBLE 1/0 10/100-PK
Specifications
- UPC
- 751338818309
- UNSPSC
- 39121405
- Country of Origin
- MUL
- Material
- Aluminum
- Size
- 1.50 x 1.1875 x 0.8125 IN
- Type
- Solderless Double Hole Lug
- Cable Range
- 14 to 1/0
- Cable Size
- 14 to 1/0 AWG
- Cable Type
- 14 to 1/0 AWG
- Environmental Conditions
- 90
- For Use With
- Copper or Aluminum Conductor
- Hole Diameter
- 0.25 IN
- Label Description
- SOLDERLESS LUGS
- Material
- Aluminum
- Number Of Holes
- 2
- Size
- 1.50 x 1.1875 x 0.8125 IN
- Standard
- UL 467, UL File Number E155861, US Federal Specification Number A-A-50552, CSA Certified, NEMA/ANSI FB-1, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D
- Type
- Solderless Double Hole Lug
- Wire Size
- #14 - 1/0
- Manufacturer keywords
- ALUM.LUG DOUBLE 1/0 10/100-PK
