3-800L2/L4
SKU: 3-800L2/L4
MPN: 3-800L2/L4
Key specs
View all- Color
- Silver
- Material
- Aluminum
- Number Of Poles
- 1
- Voltage Rating
- 600 V
Description
Product overview

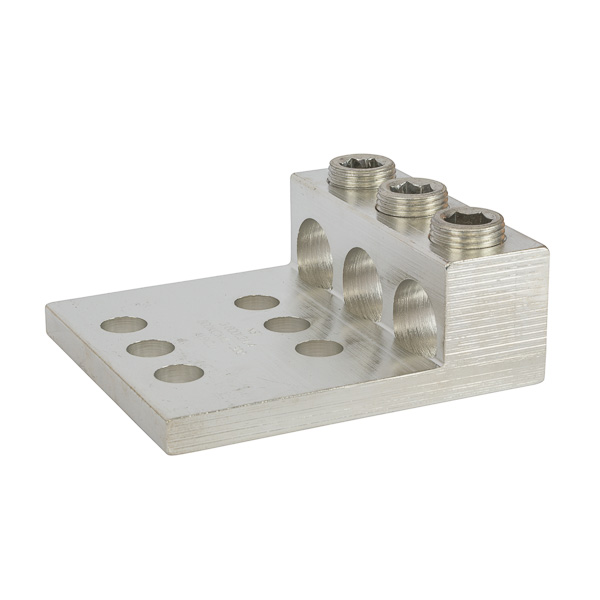

3 Port Panelboard Lug 800 MCM - 350 MCM Panelboard style for multi-conductor with NEMA mounting hole spacing for turn prevent and secureness. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. For use with copper or aluminum conductors. Rated 600 volts (2000V max per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C. All hole spacing is NEMA standard of 1.750".
3 Port Panelboard Lug 800 MCM - 350 MCM Panelboard style for multi-conductor with NEMA mounting hole spacing for turn prevent and secureness. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. For use with copper or aluminum conductors. Rated 600 volts (2000V max per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C. All hole spacing is NEMA standard of 1.750".
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI 3-800L2/L4 NEMA PANELBOARD LUG
- Invoice description
- Nema Panel Lug (3)800-300
Specifications
- UPC
- 662381001535
- Color
- Silver
- Material
- Aluminum
- Number Of Poles
- 1
- Voltage Rating
- 600 V
- Color
- Silver
- Environmental Conditions
- 90 C
- Finish
- Aluminum
- Material
- Aluminum
- Number Of Poles
- 1
- Sub Brand
- Mechanical Connector
- Temperature Rating
- 90 C
- Voltage Rating
- 600 V
