300TP
SKU: 300TP
MPN: 300TP
Key specs
View all- Color
- Silver
- Material
- Aluminum
- Number Of Poles
- 1
- Voltage Rating
- 600 V
Description
Product overview

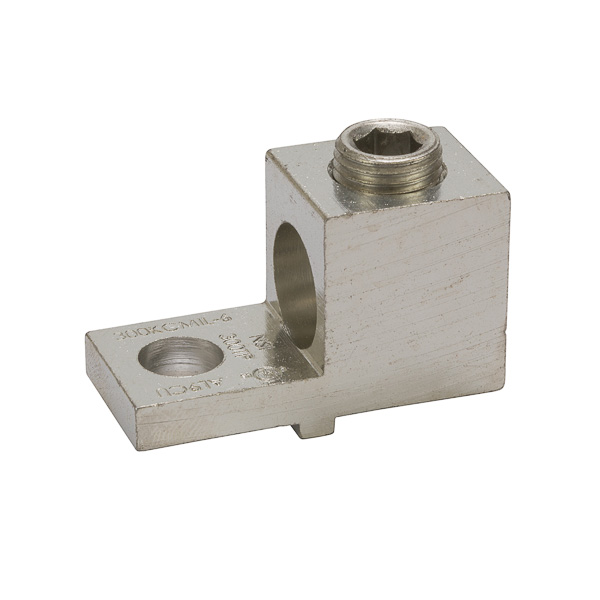

Dual Rated Turn Prevent Lug 300 MCM - 6 AWG Dual Rated Turn Prevent Lugs are made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. For use with both copper and aluminum conductors. Rated 600V (2000V max. per UL486B). UL 486A/B Listed. Temperature Rating 90 degrees C.
Dual Rated Turn Prevent Lug 300 MCM - 6 AWG Dual Rated Turn Prevent Lugs are made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. For use with both copper and aluminum conductors. Rated 600V (2000V max. per UL486B). UL 486A/B Listed. Temperature Rating 90 degrees C.
Manufacturer highlights
Additional manufacturer notes
- Short name
- NSI
- Feed description
- NSI 300TP TURN PREVENT LUG 300 MCM
- Invoice description
- Turn Prevent Lug 300-6
Specifications
- UPC
- 662381002419
- Color
- Silver
- Material
- Aluminum
- Number Of Poles
- 1
- Voltage Rating
- 600 V
- Color
- Silver
- Environmental Conditions
- 90 C
- Finish
- Aluminum
- Material
- Aluminum
- Number Of Poles
- 1
- Sub Brand
- Mechanical Connector
- Temperature Rating
- 90 C
- Voltage Rating
- 600 V
