Videos & documents
Documents
314U-BIN
SKU: 314U-BIN-3M
MPN: 314U-BIN
Key specs
View all- Color
- White
- Type
- Insulation Displacement
- Voltage Rating
- 600 V
Description
Product overview

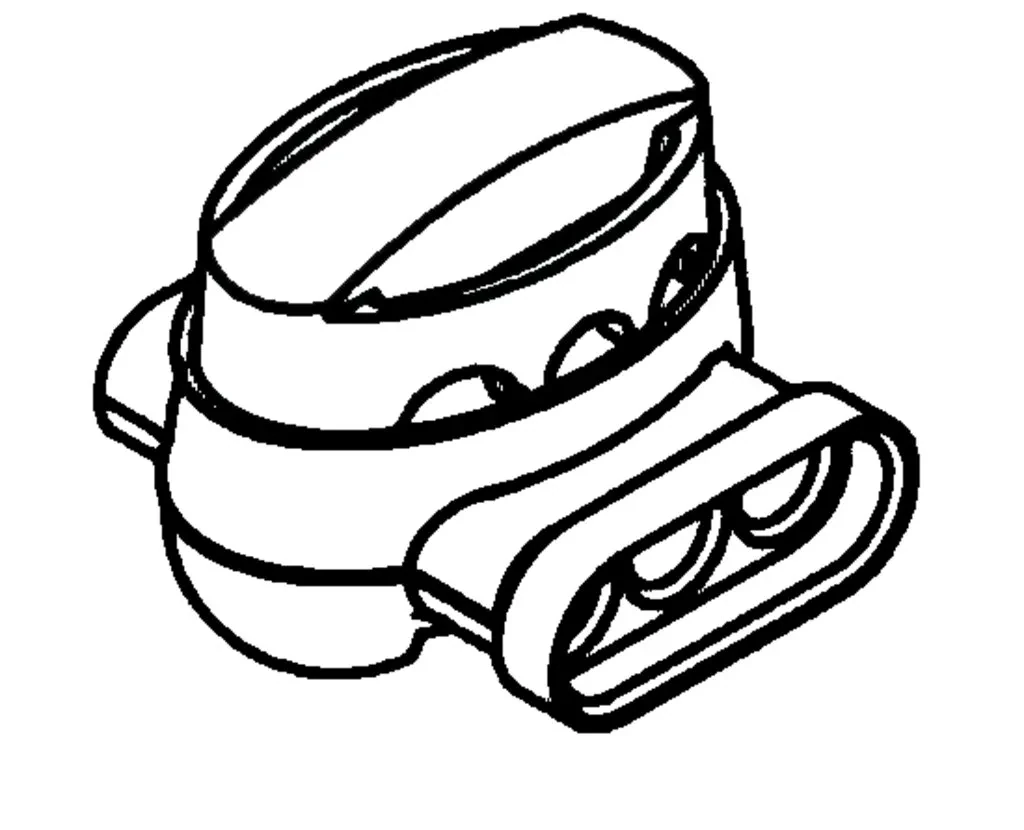

3M™ Scotchlok™ Insulation Displacement Connector 314U provides a dual element connection for dry environment applications. The connector is nylon insulated and used to connect 2 or 3 wires. It is self stripping and flame retardant.
3M™ Scotchlok™ Insulation Displacement Connector 314U provides a dual element connection for dry environment applications. The connector is nylon insulated and used to connect 2 or 3 wires. It is self stripping and flame retardant.
Manufacturer highlights
3M™ Scotchlok™ Insulation Displacement Connector 314U is 600V rated for building wire and 1000V rated for signs, fixtures and luminaires. It withstand...
3M™ Scotchlok™ Insulation Displacement Connector 314U is 600V rated for building wire and 1000V rated for signs, fixtures and luminaires. It withstands temperatures of 221 degrees F (105 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
- White cap and white body nylon-insulated connector is suitable to connect 2 or 3 wires
- Accommodates a wire range of 1,5 - 2,5 mm2 solid or stranded
Additional manufacturer notes
- Short name
- 3M
- Feed description
- 3M 314U-BIN 314U SELF-STRIPPING CON
- Label description
- 3M(TM) Scotchlok(TM) Electrical IDC 314U-BIN, Pigtail, Flame Retardant
- Invoice description
- 314U SELF-STRIPPING CONNECTOR BULK
Specifications
- UPC
- 054007092339
- UNSPSC
- 39121409
- Country of Origin
- USA
- Color
- White
- Type
- Insulation Displacement
- Voltage Rating
- 600 V
- Color
- White
- Standard
- UL and CSA
- Sub Brand
- Scotchlok
- Temperature Rating
- 221 F
- Type
- Insulation Displacement
- Voltage Rating
- 600 V
- Wire Size
- 22 - 14 AWG
