Videos & documents
Documents
316-IR BAG
SKU: 316-IR BAG
MPN: 316-IR BAG
Key specs
View all- Color
- Black/White
- Size
- 22 - 16 AWG
Description
Product overview

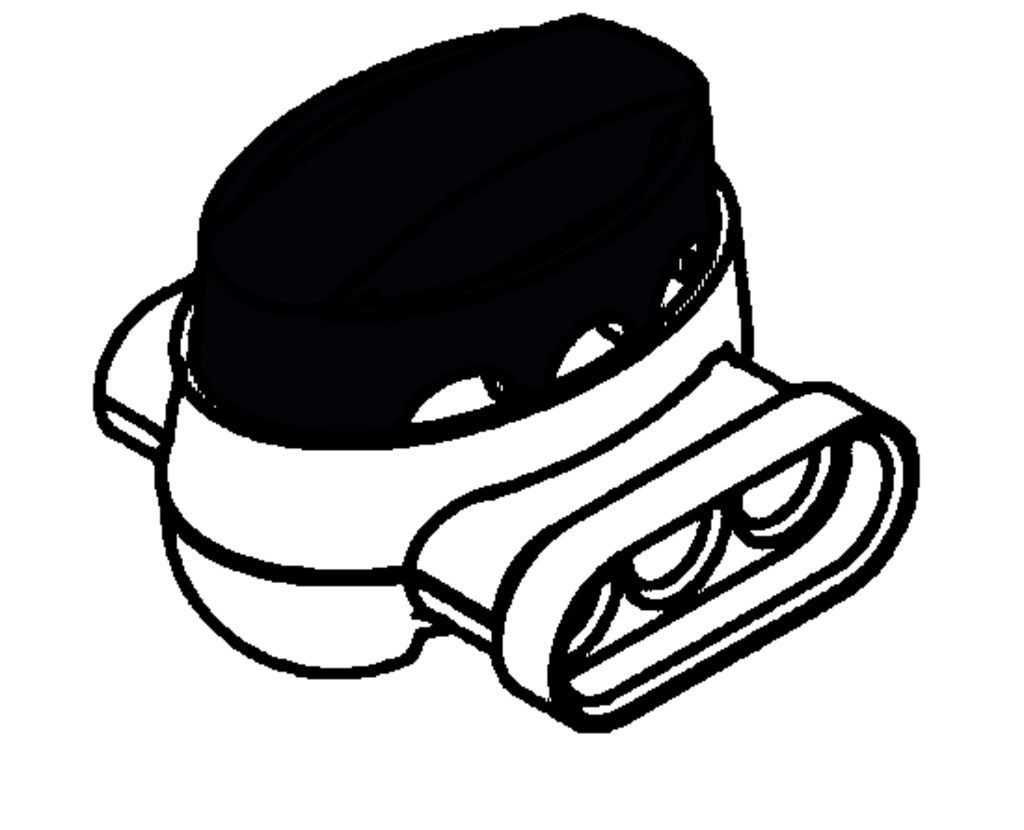

3M™ Scotchlok™ Insulation Displacement Connector 316IR is ideal for use with low energy underground circuit wires, sprinkler systems, landscape lighting or other applications requiring moisture resistance. The connector is nylon insulated and used to connect 2 or 3 wires. It is self stripping and moisture resistant.
3M™ Scotchlok™ Insulation Displacement Connector 316IR is ideal for use with low energy underground circuit wires, sprinkler systems, landscape lighting or other applications requiring moisture resistance. The connector is nylon insulated and used to connect 2 or 3 wires. It is self stripping and moisture resistant.
Manufacturer highlights
3M™ Scotchlok™ Insulation Displacement Connector 316IR is 600V rated for building wire. It withstands temperatures of 221 degrees F (105 degrees C). U...
3M™ Scotchlok™ Insulation Displacement Connector 316IR is 600V rated for building wire. It withstands temperatures of 221 degrees F (105 degrees C). UL Listed and RoHS 2011/65/EU Compliant.
- Helps provide a moisture-resistant seal
- Suitable for applications requiring moisture and UV protection
- Accommodates 16 to 14 AWG solid/stranded, 12 AWG stranded (outer ports) and 18 AWG solid/stranded, 20 AWG stranded (inner port)
- C UL Listed and RoHS 2011/65/EU Compliant
Additional manufacturer notes
- Short name
- 3M
- Feed description
- 3M 316-IR-BAG 316-IR LV IRRIGATION
- Label description
- 3M(TM) Scotchlok(TM) IDC Connector 316IR, Pigtail, Irrigation Applications
- Invoice description
- 316-IR LV IRRIGATION CONNECTOR
Specifications
- UPC
- 054007504191
- UNSPSC
- 39121409
- Country of Origin
- USA
- Color
- Black/White
- Size
- 22 - 16 AWG
- Color
- Black/White
- Connection
- Pigtail
- Size
- 22 - 16 AWG
- Standard
- UL
Do you have a question about 316-IR BAG?
