$38.82 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

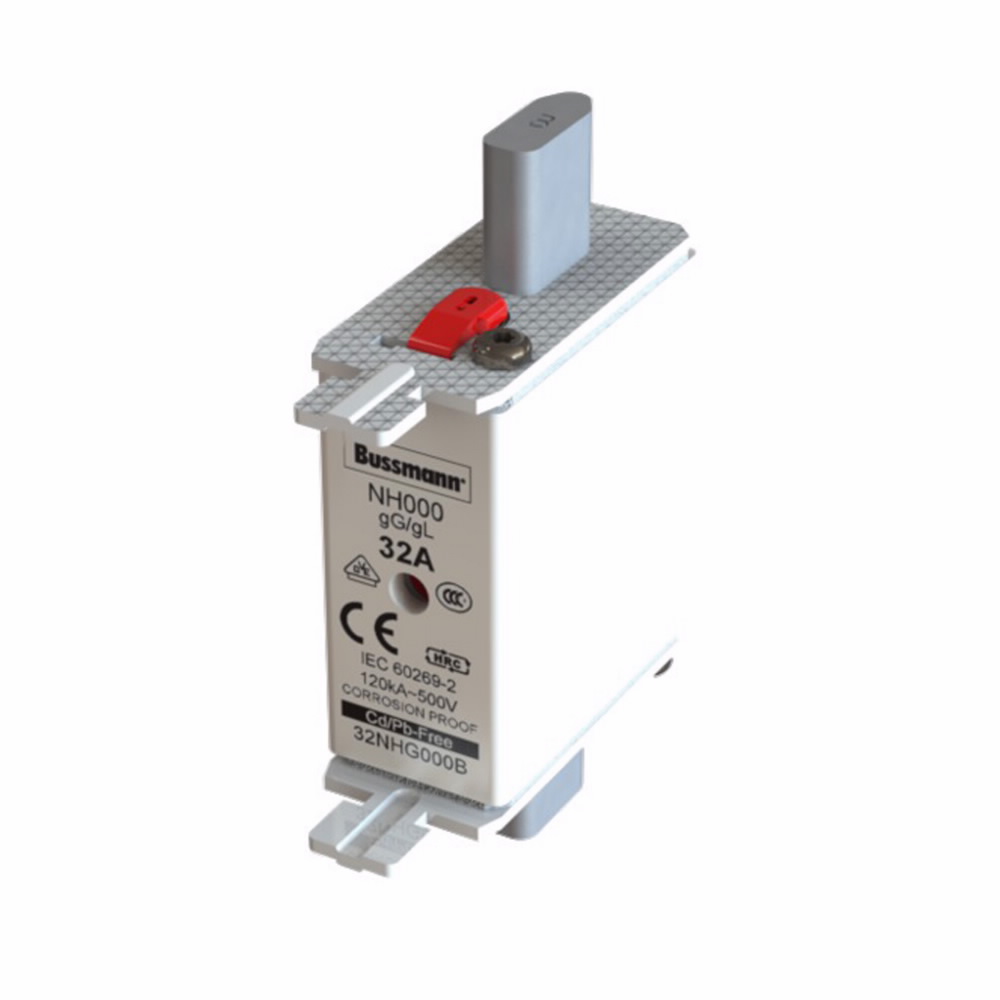

Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 32A, 120 kAIC, Combination fuse status indicator, fuse, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Ceramic body - 32NHG000B
Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 32A, 120 kAIC, Combination fuse status indicator, fuse, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Ceramic body - 32NHG000B
Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class...150
Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.
- UPC
- 051712625807
- UNSPSC
- 39121627
- Country of Origin
- IN
- Amperage Rating:
- 32 A
- Material:
- Ceramic
- Type:
- Low voltage NH fuse
- Voltage Rating:
- 500 V
- Amperage Rating:
- 32 A
- Class:
- Class C gL/gG
- Connection:
- Blade end
- Dimensions:
- 3.1102 IN X 0.8268 IN X 2.0079 IN
- Interrupt Rating:
- 120 kAIC
- Material:
- Ceramic
- Standard:
- CCC Marked ,VDE ,EAC ,VDE ,CCC gemarkeerd ,UL geregistreerd ,UL Listed ,VDE ,Répertorié UL ,VDE ,EAC ,VDE ,UL Listed ,CCC Marked ,UL Listed ,Marqué CCC ,CCC Marked ,EAC ,EAC ,EAC ,VDE ,CCC Marked ,UL Listed ,EAC,Conformité RoHS,Con marchio CE,RoHS-kompatibel,RoHS-compliant,Conforme a RoHS,CE-markering,CE-merket,RoHS-konform,CE-Kennzeichnung,Marquage CE,CE Marked,RoHS Compliant
- Sub Brand:
- Bussmann Series
- Type:
- Low voltage NH fuse
- Voltage Rating:
- 500 V
16H07-660
$53.64 /ea
Fuse-link, low voltage, 16 A, AC 660 V, DC 250 V, BS88/A2, 22 x 82 mm, gL/gG, BS
Attributed Data | Included |
---|---|
Class | Class C gL/gG Yes |
Dimensions | 3.3071 IN X 0.9055 IN X 0.9055 IN Yes |
Interrupt Rating | 80 kAIC Yes |
Standard | Contact factory Yes |
Sub Brand | Bussmann Series Yes |
Type | Low voltage British standard fuse Yes |
300P09C
$514.79 /ea
Eaton Bussmann series low voltage British standard fuse, 600V, 300A, None, Industrial fuse, Class gG/gL, Ceramic body
Attributed Data | Included |
---|---|
Class | Class gG/gL Yes |
Dimensions | 2.3228 IN X 5.3543 IN X 2.3228 IN Yes |
Material | Ceramic Yes |
Standard | Contact factory,RoHS Compliant Yes |
Sub Brand | Bussmann Series Yes |
Type | Low voltage British standard fuse Yes |
10NHG01B
$78.57 /ea
Fuse-link, LV, 10 A, AC 500 V, NH01, gL/gG, IEC, dual indicator, live gripping lugs
Attributed Data | Included |
---|---|
Class | Class C gL/gG Yes |
Connection | Blade end Yes |
Dimensions | 5.3150 IN X 1.1634 IN X 2.2756 IN Yes |
Interrupt Rating | 120 kAIC Yes |
Material | Ceramic Yes |
Standard | UL Listed ,CCC Marked,RoHS Compliant,CE Marked Yes |
Sub Brand | Bussmann Series Yes |
Type | Low voltage NH fuse Yes |
Product Image | ||||
---|---|---|---|---|
16H07-660
Fuse-link, low voltage, 16 A, AC 660 V, DC 250 V, BS88/A2, 22 x 82 mm, gL/gG, BS
$53.64 / EA
|
300P09C
Eaton Bussmann series low voltage British standard fuse, 600V, 300A, None, Industrial fuse, Class gG/gL, Ceramic body
$514.79 / EA
|
10NHG01B
Fuse-link, LV, 10 A, AC 500 V, NH01, gL/gG, IEC, dual indicator, live gripping lugs
$78.57 / EA
|
||
Attributed Data | ||||
Amperage Rating | 10 A 10 A | 16 A 16 A | 300 A 300 A | |
Class | Class C gL/gG Class C gL/gG | Class gG/gL Class gG/gL | ||
Connection | Blade end Blade end | |||
Dimensions | 2.3228 IN X 5.3543 IN X 2.3228 IN 2.3228 IN X 5.3543 IN X 2.3228 IN | 3.3071 IN X 0.9055 IN X 0.9055 IN 3.3071 IN X 0.9055 IN X 0.9055 IN | 5.3150 IN X 1.1634 IN X 2.2756 IN 5.3150 IN X 1.1634 IN X 2.2756 IN | |
Interrupt Rating | 80 kAIC 80 kAIC | 120 kAIC 120 kAIC | ||
Material | Ceramic Ceramic | |||
Standard | Contact factory Contact factory | Contact factory,RoHS Compliant Contact factory,RoHS Compliant | UL Listed ,CCC Marked,RoHS Compliant,CE Marked UL Listed ,CCC Marked,RoHS Compliant,CE Marked | UL Listed,CCC Marked,RoHS Compliant,CE Marked UL Listed,CCC Marked,RoHS Compliant,CE Marked |
Sub Brand | Bussmann Series Bussmann Series | |||
Type | Low voltage British standard fuse Low voltage British standard fuse | Low voltage NH fuse Low voltage NH fuse | ||
Voltage Rating | 500 V 500 V | 600 V 600 V | 660 V 660 V | |
