Short Barrel Compression Lug Splices, 1/0 Wire, Pink Color Code
Short Barrel Compression Lug Splices, 1/0 Wire, Pink Color Code
Short Barrel Compression Lug Splices, 1/0 Wire, Pink Color Code
Short Barrel Compression Lug Splices, 1/0 Wire, Pink Color Code

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

3306

sku: 3306-TOPAZ

Manufacturer
Topaz Electric

$3.21 / EA

Available to order

Local stock: 0
Lead time: over 7 working days

Short Barrel Compression Lug Splices, 1/0 Wire, Pink Color Code

Short Barrel Compression Lug Splices, 1/0 Wire, Pink Color Code

Topaz�s Short Barrel Compression Lug Splices are fabricated from seamless, high conductivity copper...150

Topaz�s Short Barrel Compression Lug Splices are fabricated from seamless, high conductivity copper tubing and can withstand use in heavy duty applications. Tin plated for optimal corrosion resistance and color coded for easy identification. Available for wire sizes from 8 to 750 MCM; UL listed.

  • Seamless, high conductivity copper tubing, suitable for heavy duty applications
  • Tin-plated to provide corrosion resistance
  • Color coded
  • Seamless, high conductivity copper tubing, suitable for heavy duty applications
  • Tin-plated to provide corrosion resistance
  • Color coded
UPC
751338816046
UNSPSC
39121449
Country of Origin
MUL
Amperage Rating:
486 A
Color:
Pink
Material:
Copper
Size:
0.44 x 1.75 IN
Type:
Short Barrel Compression Splice
Voltage Rating:
35,000 V
AMP Rating (AMP):
486 AMP
Amperage Rating:
486 A
Color:
Pink
Conductor Range:
1/0 AWG
Connection:
Compression
Connectors (IN):
Compression IN
Label Description:
COMPRESSION LUG SPLICES
Material:
Copper
Max Number of Conductors:
1/0 AWG
Size:
0.44 x 1.75 IN
Standard:
UL 467, UL File Number E155861, US Federal Specification Number A-A-50552, CSA Certified, NEMA/ANSI FB-1, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D
Type:
Short Barrel Compression Splice
Voltage (V):
35000 V
Voltage Rating:
35,000 V

Recently Viewed

  • placeholder image

    3306-TOPAZ

    TOPAZ ELECTRIC
    Short Barrel Compression Lug Splices, 1/0 Wire, Pink Color Code
    See more details
  • placeholder image

    43692BK

    KICHLER LIGHTING
    Unfortunately, we do not have a description available for 43692BK. Please call (800) 462-7733...
    See more details
  • placeholder image

    HC6PK50

    BRYANT ELECTRIC

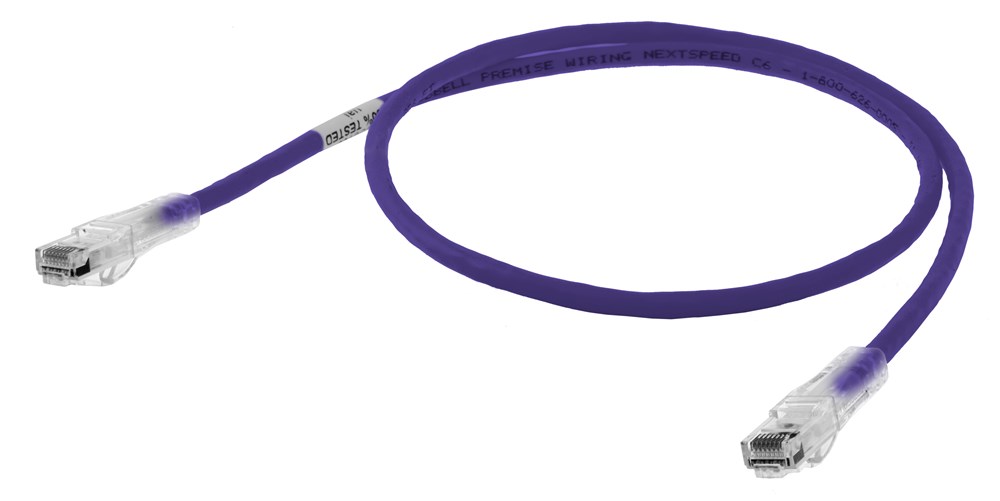

    Hubbell Premise Wiring Products, Copper Solutions, Patch Cords,NEXTSPEED, Cat 6, Slim, 50' Length, Pink
