336MSS
SKU: 336MSS
MPN: 336MSS
Key specs
View all- Material
- Malleable Iron
- Size
- 2 IN
- Type
- Metallic Set Screw Grounding Bushing
Description
Product overview
2" Insulated Malleable Iron Metallic Grounding Bushings Threadless
2" Insulated Malleable Iron Metallic Grounding Bushings Threadless
Manufacturer highlights
Insulated metallic grounding bushings are for use with accompanying aluminum lay-in grounding lug to terminate conduit service; recommended for applic...
Insulated metallic grounding bushings are for use with accompanying aluminum lay-in grounding lug to terminate conduit service; recommended for applications with copper or aluminum bare ground connectors. Protective thermoplastic throat liners are rated to 105 ' C and help prevent wire insulation damage. Set screw, threadless models available in 1/2' to 6' sizes. Built to last high grade malleable iron construction, always in stock and ready for fast delivery. All models UL listed.
- Liner is rated flame retardant to 105'C
- Set-screws allowing the fitting to lock bushing in any desired position
- For use on threaded or threadless Rigid conduit or IMC
Additional manufacturer notes
- Short name
- TPZ
- Feed description
- TPZ 336MSS 2" MIGB S.S. 4-14 LAYIN
- Invoice description
- 2" MIGB S.S. 4-14 LAYIN LUG 10/100PK
Specifications
- UPC
- 751338133716
- UNSPSC
- 39121312
- Country of Origin
- MUL
- Material
- Malleable Iron
- Size
- 2 IN
- Type
- Metallic Set Screw Grounding Bushing
- Connection
- Female Threaded
- Connectors (IN)
- Female Threaded IN
- Diameter
- 3.03 IN
- For Use With
- Copper/Aluminum Bare Ground Connector, Rigid & IMC Conduit
- Height
- 0.80 IN
- ISTMT (testing temp) (DEG C)
- +105 DEG C
- Label Description
- INSULATED METALLIC GROUNDING BUSHINGS
- Material
- Malleable Iron
- Size
- 2 IN
- Size (IN)
- 2" IN
- Size (trade) (IN)
- 2" IN
- Standard
- UL E170258, CSA Certified, UL 514B, US Federal Specification A-A-50552, NEMA/ANSI FB-1, Military Specification W-F-406D, W-F-406E, W-F-408D, W-S-610D
- Temperature Rating
- +105 DEG C
- Type
- Metallic Set Screw Grounding Bushing
- Wire Size
- 14 to 4 AWG
- Manufacturer keywords
- 2" MIGB S.S. 14-4 LAYIN LUG 1
Do you have a question about 336MSS?
Request a quoteVideos & documents
Documents
Similar items
Compare alternates in this category before ordering.
Similar item
EMT75
EMT Insulating bushing, press fit, holds firmly in place while pulling cables. Trade Size 3/4"
$0.17 / EA
52 available
Similar item
RB18

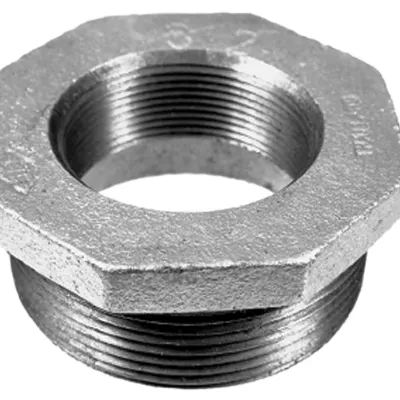

2-1/2" x 1-1/4" Malleable Iron, Reducing Bushings
