$24.23 / EA
Local stock: 0
Lead time:
over 7 working days

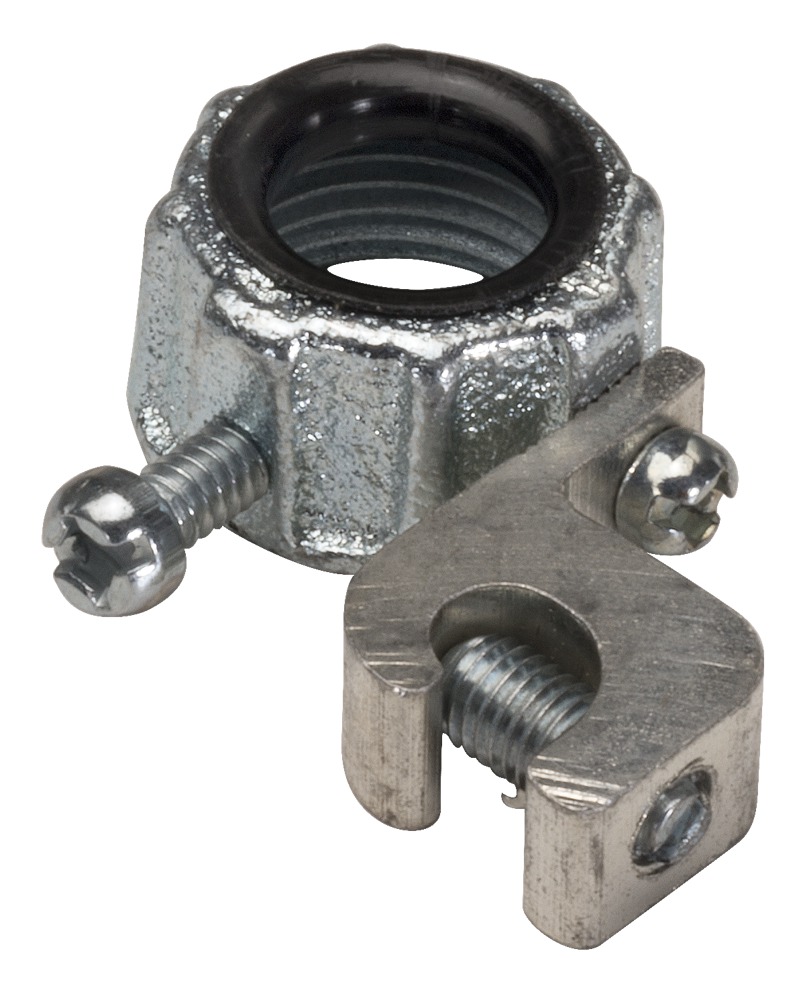

4" Insulated Malleable Iron Metallic Grounding Bushings
4" Insulated Malleable Iron Metallic Grounding Bushings
Insulated metallic grounding bushings are for use with accompanying aluminum lay-in grounding lug to...150
Insulated metallic grounding bushings are for use with accompanying aluminum lay-in grounding lug to terminate conduit service; recommended for applications with copper or aluminum bare ground connectors. Protective thermoplastic throat liners are rated to 105 � C and help prevent wire insulation damage. Built to last high grade malleable iron construction; trade sizes from 1/2� to 6� available and always in stock. All models UL listed.
- Liner is rated flame retardant to 105�C
- UL listed for use with copper or aluminum grounding conductor
- Liner is rated flame retardant to 105�C
- UL listed for use with copper or aluminum grounding conductor
- UPC
- 751338134607
- UNSPSC
- 39121312
- Country of Origin
- MUL
- Material:
- Malleable Iron
- Size:
- 4 IN
- Type:
- Metallic Grounding Bushing
- Connection:
- Female Threaded
- Connectors (IN):
- Female Threaded IN
- Diameter:
- 6.15 IN
- For Use With:
- Copper/Aluminum Bare Ground Connector, Rigid & IMC Conduit
- Height:
- 1.30 IN
- ISTMT (testing temp) (DEG C):
- +105 DEG C
- Label Description:
- INSULATED METALLIC GROUNDING BUSHINGS
- Material:
- Malleable Iron
- Size:
- 4 IN
- Size (IN):
- 4" IN
- Standard:
- UL E170258, CSA Certified, UL 514B, US Federal Specification A-A-50552, NEMA/ANSI FB-1, Military Specification W-F-406D, W-F-406E, W-F-408D, W-S-610D
- Temperature Rating:
- +105 DEG C
- Type:
- Metallic Grounding Bushing
- Wire Size:
- 6 AWG, 250 MCM
