$1,347.20 / EA *
* This is the minimum price that we are able to advertise. Call us at (800) 462-7733 and we will offer a lower price.
manufacturer discounts
learn about discounts
- $1,299.74 for $1,500.00+
- $1,246.47 for $2,500.00+
- $1,193.20 for $4,000.00+
Local stock: 0
Lead time:
over 7 working days
Electric Infrared Heater, 7.5KW, 240V, Dimensions- 33 Length x 21-1/2 Width x 11 Height IN, 1, 3 PH, Galvanized Steel Housing, Mul-T-Mount, BTU Rating- 25298, TH Series, 60° Symmetric
Electric Infrared Heater, 7.5KW, 240V, Dimensions- 33 Length x 21-1/2 Width x 11 Height IN, 1, 3 PH, Galvanized Steel Housing, Mul-T-Mount, BTU Rating- 25298, TH Series, 60° Symmetric
150
- UPC
- 686334490962
- UNSPSC
- 40101824
- Country of Origin
- US
- Type:
- Infrared Heater
- Voltage Rating:
- 240 VAC
- Wattage:
- 7.5 kW
- Coverage:
- 11.5 x 10.5 @ 8 FT, 14 x 13 @ 10 FT, 16 x 15 @ 12 FT, 18 x 17 @ 14 FT, 20.5 x 19.5 @ 16 FT, 23 x 22 @ 18 FT FT
- Dimensions:
- 33 (L) x 21-1/2 (W) x 11 (H) IN
- Heating Capacity:
- 25298 BTU
- Housing Material:
- Galvanized Steel
- Lamp Size:
- 8 MM
- Lamp Type:
- Quartz Lamp
- Model:
- 343-60-TH-240V-AG
- Mounting:
- Mul-T-Mount
- Mounting Hole Spacing:
- 32-1/2 IN
- Number of Lamps:
- 3
- Phase:
- 1, 3
- Reflector Material:
- Gold Anodized Aluminum
- Reflector Type:
- 60° Symmetric
- Series:
- TH
- Standard:
- cETLus Listed
- Type:
- Infrared Heater
- Voltage Rating:
- 240 VAC
- Wattage:
- 7.5 kW
- Weight:
- 33 LB
Recently Viewed
-
34360TH240VAG
TPI CORPORATION
Electric Infrared Heater, 7.5KW, 240V, Dimensions- 33 Length x 21-1/2 Width x 11 Height IN, 1, 3 PH, Galvanized Steel Housing, Mul-T-Mount, BTU Rating...
See more details -
ECS4T3R1RF13N
SIEMENS INDUSTRY, INC.
SIEMENS ELEVATOR CONTROL SWITCH, 200A, 240V ICT, 120Vac Coil, Red Pilot Light, 1P Fire Alarm Monitoring Relay, NEMA 3R, Isolated Neutral Lug
See more details -
SLVBR3634G
SIEMENS INDUSTRY, INC.
3 Phase 3 Wire Sentron II Heavy Duty Fusible Switch, Riser Orientation. 600V , 100A Max Ampere Rating, IP55, Internal Ground
See more details -
MD62B800AFAF
SIEMENS INDUSTRY, INC.
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. UN-ASSEMBLED STANDARD 40 DEG C BREAKER MD FRAME WITH STANDAR...
See more details -

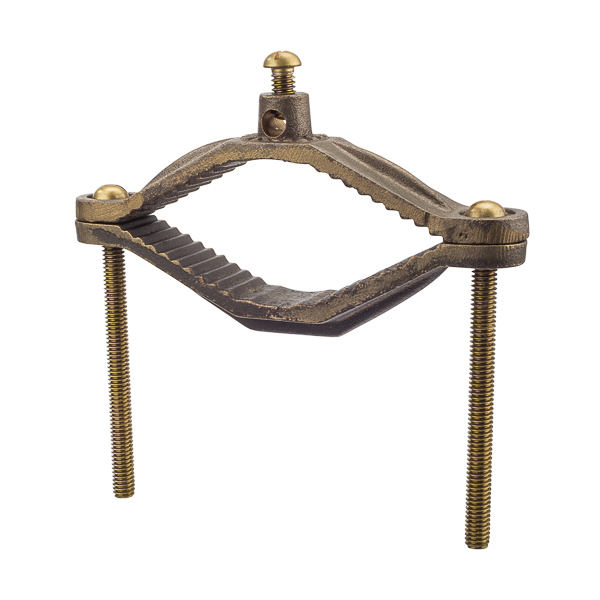

G-4-SBS
