3523
SKU: 3523
MPN: 3523
Key specs
View all- Amperage Rating
- 20 A
- Color
- Black/White
- Material
- Composite
- Number Of Poles
- 4
- Size
- 2.11 in x 2.11 in x 3.73 in
- Type
- Connector Body
Description
Product overview

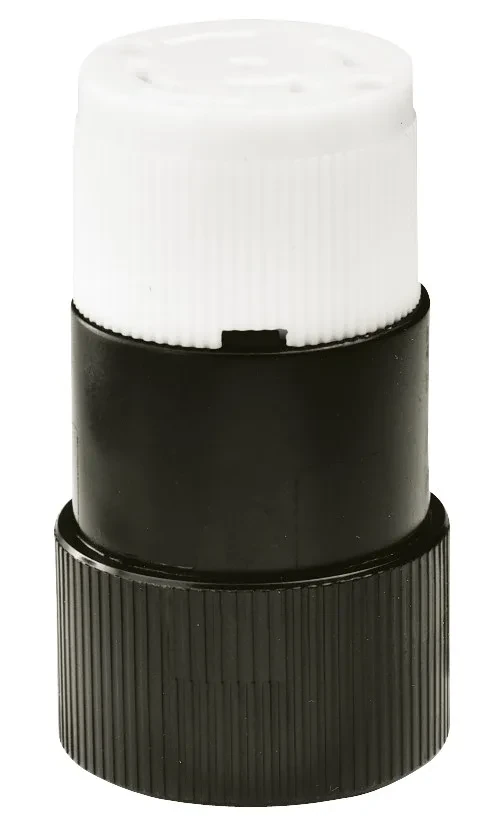

Locking Devices, Industrial, Female Connector Body, 20A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal, Black and White.
Locking Devices, Industrial, Female Connector Body, 20A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal, Black and White.
Manufacturer highlights
Additional manufacturer notes
- Short name
- BRYANT
- Feed description
- BRYANT 3523 LKG CONN, 4P5W, 20A 3PH
- Invoice description
- LKG CONN, 4P5W, 20A 3PH 120/208V
Specifications
- UPC
- 781786651708
- UNSPSC
- 39121421
- Country of Origin
- US
- Amperage Rating
- 20 A
- Color
- Black/White
- Material
- Composite
- Number Of Poles
- 4
- Size
- 2.11 in x 2.11 in x 3.73 in
- Type
- Connector Body
- Voltage Rating
- 3 Phase Y 120/208 VAC
- Amperage Rating
- 20 A
- Brand ID
- BRYANT
- Carton Quantity
- 10
- Catalog Number
- 3523
- Color
- Black/White
- Conductor Range
- #12 AWG to #8 AWG
- Cord Diameter
- 0.625-1.150 in
- Current Rating
- 20 A
- Description - Long
- Locking Devices, Industrial, Female Connector Body, 20A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal, Black and White.
- Description - Short
- Locking Devices, Locking Devices, Industrial, Female Connector Body, 30A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal, Black and White
- EU RoHS Indicator
- Yes
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- FEATURES - Bullets
- Face and body feature alignment keys for easy assembly;Amperage, voltage and NEMA configuration imprinted on face for easy identification;Impact/chemical resistant, toughened nylon construction;Internal “self-centering” Triple Gripper® cord grip with “radius teeth” design provides secure cord retention
- FV_Current/Amperage Rating Description
- 20 Amp
- FV_Voltage Rating Description
- 3 Phase Y 120/208 VAC
- Insulation
- Insulated Body
- Item Type
- 20A Nylon Connector Non-NEMA
- Material
- Composite
- Material - Mounting Hardware
- Cord Mounted
- NEMA Rating
- Non-NEMA
- Number Of Conductors
- 3-Wire Non-Grounding
- Number Of Poles
- 4
- OEM Brand Name
- Hubbell Bryant
- Product Name
- 3523
- Size
- 2.11 in x 2.11 in x 3.73 in
- Temperature Rating
- Maximum Continuous: 75В° C; Minimum Continuous: -40В° C w/o impact, -25В° with impact.
- Type
- Connector Body
- UPC
- 781786651708
- Voltage Rating
- 3 Phase Y 120/208 VAC
- Voltage Rating Description
- 3 Phase Y 120/208 VAC
