20 Amp, 250 Volt, 10 Amp 600 Volt AC, 4P, 5W, Non-NEMA, Locking Flanged Outlet, Grounding, Industrial Grade, White
20 Amp, 250 Volt, 10 Amp 600 Volt AC, 4P, 5W, Non-NEMA, Locking Flanged Outlet, Grounding, Industrial Grade, White

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

3525-C

$99.19 / EA

manufacturer discounts
learn about discounts

  • $85.51 for $1,300.00+
  • $80.72 for $2,000.00+
  • $76.62 for $3,000.00+
Available to order

Local stock: 0
Lead time: 1 - 2 working days

20 Amp, 250 Volt, 10 Amp 600 Volt AC, 4P, 5W, Non-NEMA, Locking Flanged Outlet, Grounding, Industrial Grade, White

20 Amp, 250 Volt, 10 Amp 600 Volt AC, 4P, 5W, Non-NEMA, Locking Flanged Outlet, Grounding, Industrial Grade, White

150

UPC
078477829554
UNSPSC
39121406
Country of Origin
US
Amperage Rating:
10/20 A
Color:
White
Material:
Nylon
Number Of Poles:
4
Size:
3-1/32 Dia x 2-5/16 H IN
Type:
Locking Flanged Outlet
Voltage Rating:
250/600 V
Amperage Rating:
10/20 A
Color:
White
Connection:
Back Wired
Dielectric Strength:
2000 (Min.) V
Environmental Conditions:
Flammability (Rated V-2 per UL94)
Material:
Nylon
Mounting:
Flange
NEMA Rating:
Non-Nema
Number Of Poles:
4
Number Of Wires:
5
Size:
3-1/32 Dia x 2-5/16 H IN
Standard:
NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Listed 498
Sub Brand:
Black & White
Temperature Rating:
-40 to +60 DEG C
Type:
Locking Flanged Outlet
Voltage Rating:
250/600 V
Wire Size:
14-8 AWG

Recently Viewed

  • placeholder image

    3525-C

    LEVITON MANUFACTURING
    20 Amp, 250 Volt, 10 Amp 600 Volt AC, 4P, 5W, Non-NEMA, Locking Flanged Outlet, Grounding, Industrial Grade, White
    See more details
  • placeholder image

    90-922

    SATCO PRODUCTS
    Heavy Duty Harp; Polished Brass Finish; 10" Height; 1/8 IP Saddle; 1/4-27 Thread; 125 Carton
    See more details
  • placeholder image

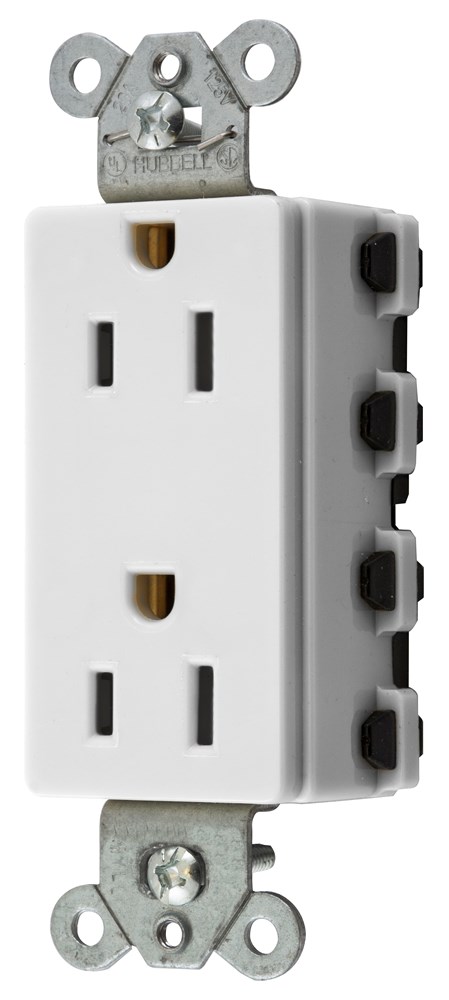

    SNAP2152WNA
