$323.18 / EA
manufacturer discounts
learn about discounts
- $278.60 for $1,300.00+
- $263.00 for $2,000.00+
- $249.63 for $3,000.00+
Local stock: 0
Lead time:
1
-
2
working days
60 Amp, 480 Volt, IEC 309-1 & 309-2, 2P, 3W, Inlet North American Pin & Sleeve Receptacle, Industrial Grade, IP67, Watertight - Red
60 Amp, 480 Volt, IEC 309-1 & 309-2, 2P, 3W, Inlet North American Pin & Sleeve Receptacle, Industrial Grade, IP67, Watertight - Red
150
- UPC
- 078477837467
- UNSPSC
- 39122208
- Country of Origin
- UKN
- Action:
- DP
- Amperage Rating:
- 60 A
- Color:
- Red
- Number Of Poles:
- 2
- Size:
- 4.37 H x 5.39 D IN
- Type:
- Pin & Sleeve Watertight Inlet
- Voltage Rating:
- 480 VAC
- Action:
- DP
- Amperage Rating:
- 60 A
- Color:
- Red
- Corrosion Resistance:
- Ferrous Parts Immersed in 20DEG C, 10 PCT Ammonium Chloride Solution for 10 min
- Current Interrupting:
- Certified for Current Interrupting at Full Rated Current
- Environmental Conditions:
- Humidity (32 DEG C, 93 PCT, 168 HR);Flammability (Rated UL94 V-2)
- Gasket Material:
- Chloroprene
- Insulation Resistance:
- 5 @ 500 V for 1 min Ohms
- Interrupt Rating:
- IP67 Watertight
- Moisture Resistance:
- Per UL 1682 Immersed for 24 Hours in 5cm of 25ªC Water
- Mounting:
- Flange Mount
- Number Of Poles:
- 2
- Replacement Parts Material:
- Reinforced Nylon (Contact Carrier), Brass (Phase and Ground Pins), Valox 357 (Locking Ring), Valox 357 (Mounting Flange)
- Size:
- 4.37 H x 5.39 D IN
- Standard:
- UL Listed 1682 and 1686, CSA Certified C22.2 No 182.1, Per low voltage directives 73\23\EEC, 93\68\EEC, IEC Rated 60309-1 and 60309-2
- Type:
- Pin & Sleeve Watertight Inlet
- Voltage Rating:
- 480 VAC
- Wire Size:
- 3
Recently Viewed
-
360B7WLEV
LEVITON MANUFACTURING
60 Amp, 480 Volt, IEC 309-1 & 309-2, 2P, 3W, Inlet North American Pin & Sleeve Receptacle, Industrial Grade, IP67, Watertight - Red
See more details -
-

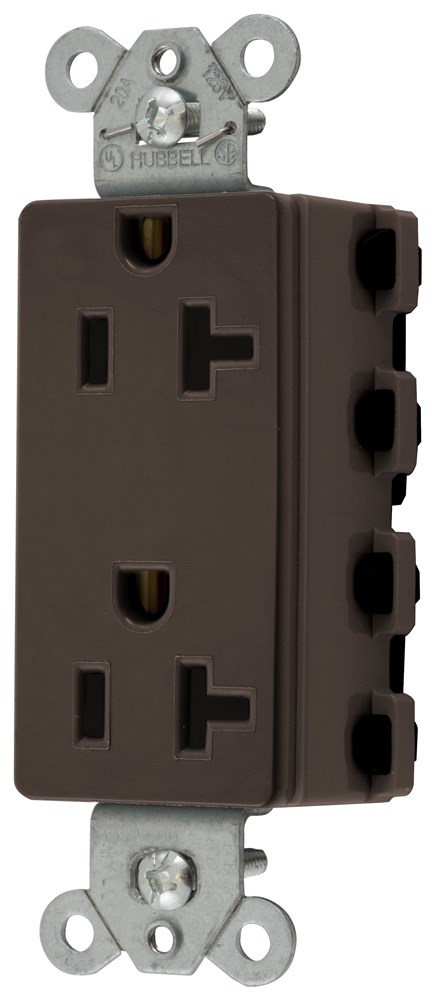

SNAP2162A
