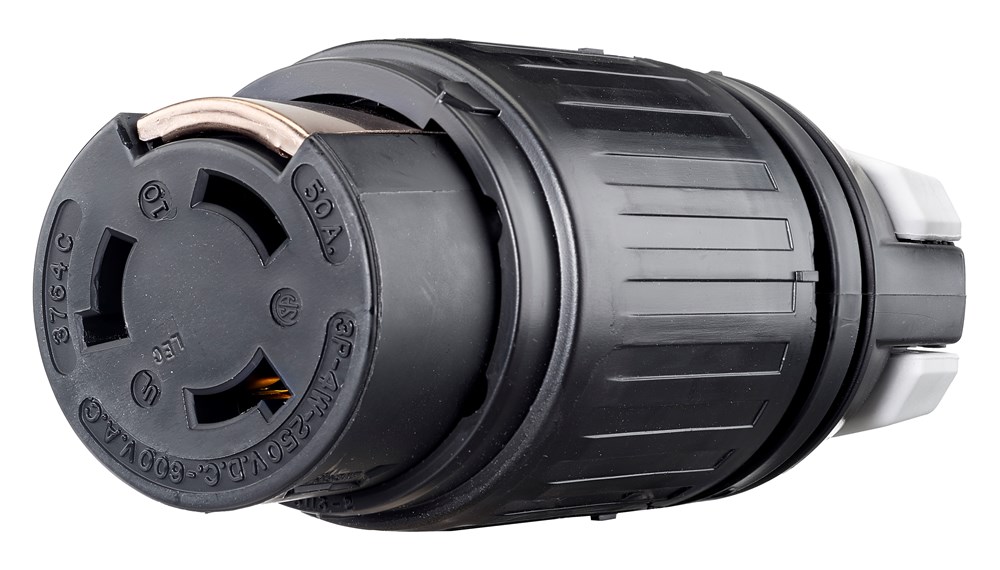

Bryant Electric 3764 Electrical Connector Assembly product image

Bryant Electric 3764 Electrical Connector Assembly product image view 2

Bryant Electric 3764 Electrical Connector Assembly product image view 3

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

Videos & documents

Documents

Spec Sheet

3764

SKU: 3764-BRY

MPN: 3764

Purchase options

$212.80 / EA

manufacturer discounts
learn about discounts

$191.52 for $300.00+
$182.40 for $500.00+
$174.80 for $1,000.00+

Available to order

Lead time: over 7 working days

Must be purchased in multiples of 10

Lead time: over 7 working days
Secure checkout with protected order handling.
Minimum order multiple: 10 units.

Dale Electric Supply ships electrical products across the U.S. and supports international orders through customer service. Local delivery may be available in defined regional delivery zones, and larger same-manufacturer orders may qualify for factory-direct shipping. Shipping and fulfillment can vary by product, vendor, manufacturer program, stock state, destination, quantity, and quote workflow.

Customer Service International Sales Factory Direct Shipping

Hill Electric Supply

Established 1948

Secure checkout and protected order handling
Phone support for compatibility and stock questions

Need cross-reference help?

Send us the SKU, manufacturer, photo, or catalog reference. We can cross-reference, confirm availability, and help source hard-to-find electrical supplies.

Contact support Browse catalog Search products

Key specs

View all

Amperage Rating: 50 A
Color: Black
Material: Composite
Number Of Poles: 3
Size: 6.50 in x 2.56 in x 2.56 in
Type: Connector Body

Description

Product overview

Locking Devices, Industrial, Female Connector Body, 50A 250V DC/600V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black and White

Manufacturer highlights

Additional manufacturer notes

Feed description: BRYANT 3764 LKG CONN, 3P4W, 50A 250
Invoice description: LKG CONN, 3P4W, 50A 250/600V, 37 SER

Specifications

UPC: 781786652552

UNSPSC: 39121421

Country of Origin: US

Amperage Rating: 50 A

Color: Black

Material: Composite

Number Of Poles: 3

Size: 6.50 in x 2.56 in x 2.56 in

Type: Connector Body

Voltage Rating: 250 VDC/600 VAC

Amperage Rating: 50 A

Brand ID: BRYANT

Carton Quantity: 10

Catalog Number: 3764

Color: Black

Conductor Range: #6 AWG

Cord Diameter: 0.830-1.250 in

Current Rating: 50 A

Description - Long: Locking Devices, Industrial, Female Connector Body, 50A 250V DC/600V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black and White

Description - Short: Locking Devices, Locking Devices, Industrial, Female Connector Body, 50A 250V DC/600V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Black and White

EU RoHS Indicator: No

Environmental Conditions: Indoor Dry Unless Protected By Additional Means

FV_Current/Amperage Rating Description: 50 Amp

FV_Voltage Rating Description: 250 VDC/600 VAC

Insulation: Insulated Body

Item Type: 50A Heavy Duty Connector-For Replacement Use

Material: Composite

Material - Mounting Hardware: Cord Mounted

Number Of Conductors: 4-Wire Grounding

Number Of Poles: 3

OEM Brand Name: Hubbell Bryant

Product Name: 3764

Size: 6.50 in x 2.56 in x 2.56 in

Temperature Rating: Maximum Continuous: 75В° C; Minimum Continuous: -40В° C w/o impact, -25В° with impact.

Type: Connector Body

UPC: 781786652552

Voltage Rating: 250 VDC/600 VAC

Voltage Rating Description: 250 VDC/600 VAC
