3LD2003-0TK51
SKU: 3LD2003-0TK51
MPN: 3LD2003-0TK51
Key specs
View all- Amperage Rating
- 16 A
- Number Of Poles
- 3
- Size
- 92.5x67x84mm
- Type
- 3LD
- Voltage Rating
- 690 V
- Wattage
- N/A
Description
Product overview

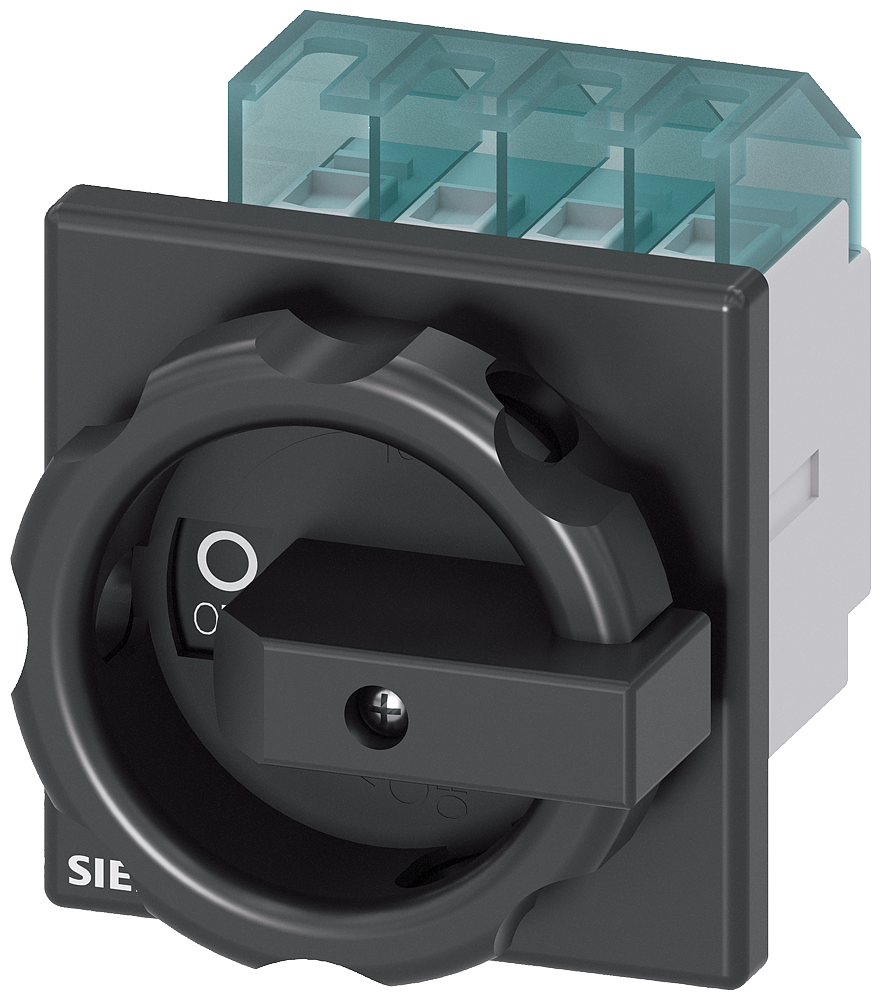

MAIN CTRL SW,3-PL,P/AC-16A AT 400V=7,5KW ROTARY ACTUATOR BLACK FRONT MOUNTING 4-HOLE MOUNTING IU=16, P/AC-23A AT 400V=7.5KW 3-P. MAIN CTR./EM.-STOP SWITCH
MAIN CTRL SW,3-PL,P/AC-16A AT 400V=7,5KW ROTARY ACTUATOR BLACK FRONT MOUNTING 4-HOLE MOUNTING IU=16, P/AC-23A AT 400V=7.5KW 3-P. MAIN CTR./EM.-STOP SWITCH
Manufacturer highlights
Additional manufacturer notes
- Short name
- S-A
- Feed description
- S-A 3LD2003-0TK51 DISC SW 16A ROT H
- Invoice description
- DISC SW 16A ROT HDL 4HOLE BLK 3P
Specifications
- UPC
- 754554739045
- UNSPSC
- 39122233
- Country of Origin
- DE
- Amperage Rating
- 16 A
- Number Of Poles
- 3
- Size
- 92.5x67x84mm
- Type
- 3LD
- Voltage Rating
- 690 V
- Wattage
- N/A
- Actuator
- Rotary
- Amperage Rating
- 16 A
- Conduit Connection
- N/A
- Connection
- N/A
- Contact Configuration
- N/A
- Contact Rating
- N/A
- Enclosure
- N/A
- Environmental Conditions
- Indoor
- Indicator
- N/A
- Interrupt Rating
- 7.5kW
- Mounting
- 4 Hole Mounted
- Number Of Poles
- 3
- Operating Cycles
- N/A
- Operating Temperature
- -20F to 120F Ambient Temp
- Size
- 92.5x67x84mm
- Standard
- UL
- Sub Brand
- Sentron
- Trip Type
- N/A
- Type
- 3LD
- Voltage Rating
- 690 V
- Wattage
- N/A
