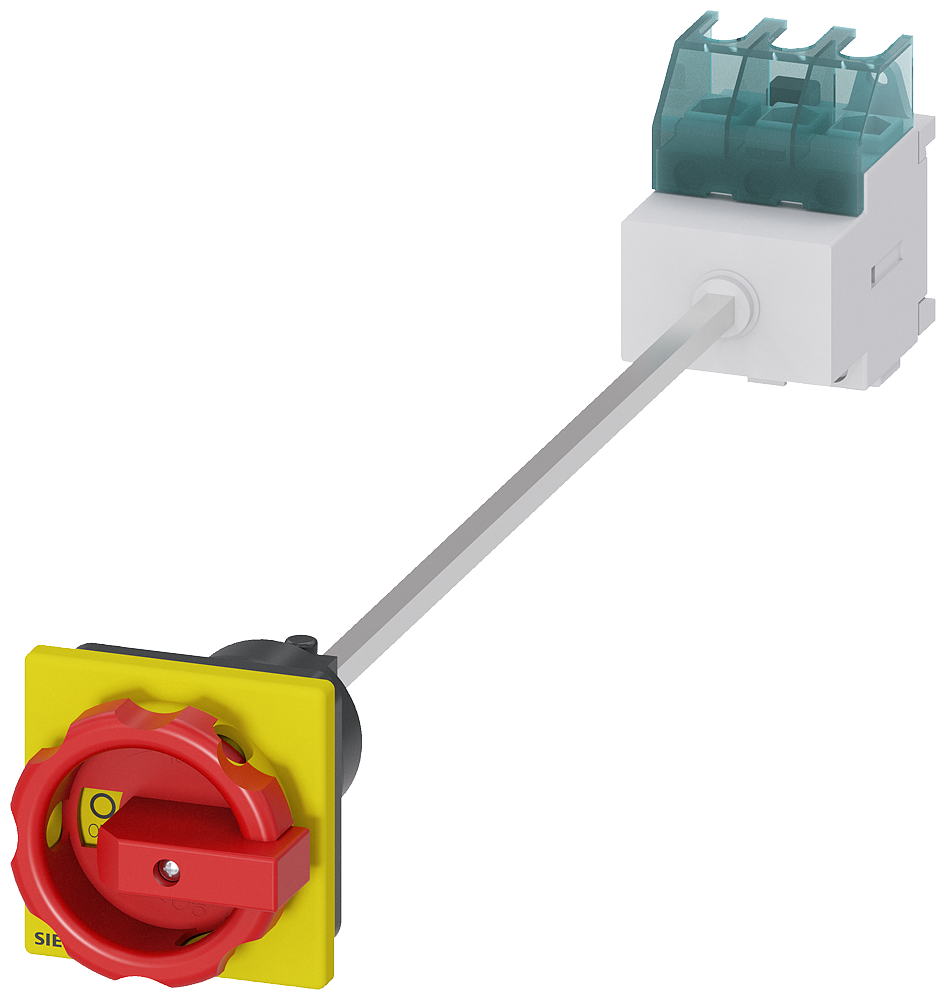

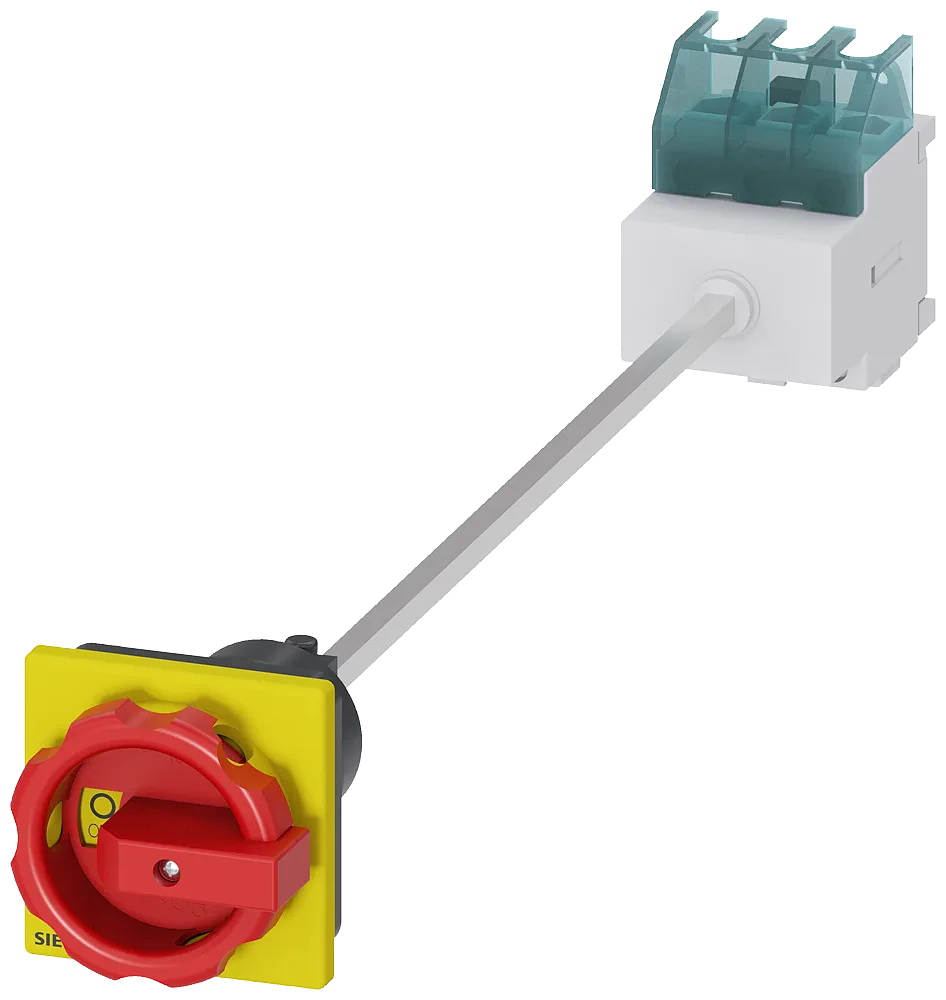

DISC SWITCH 3P R/Y ROTARY 25A DINRL BASE ROTARY ACTUATOR RED/YELLOW MOUNTING RAIL/TWO-HOLE MOUNTING BASE MOUNTING IU=25, P/AC-23A AT 400V=9,5KW EMGNCY MAIN CNTRL SWITCH 3-POLE
DISC SWITCH 3P R/Y ROTARY 25A DINRL BASE ROTARY ACTUATOR RED/YELLOW MOUNTING RAIL/TWO-HOLE MOUNTING BASE MOUNTING IU=25, P/AC-23A AT 400V=9,5KW EMGNCY MAIN CNTRL SWITCH 3-POLE

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

3LD2113-0TK53

$240.53 / EA

manufacturer discounts
learn about discounts

  • $215.64 for $1,500.00+
  • $207.35 for $2,500.00+
  • $199.06 for $3,500.00+

In stock (0)
Lead time: over 7 days
may be longer on small orders

DISC SWITCH 3P R/Y ROTARY 25A DINRL BASE ROTARY ACTUATOR RED/YELLOW MOUNTING RAIL/TWO-HOLE MOUNTING BASE MOUNTING IU=25, P/AC-23A AT 400V=9,5KW EMGNCY MAIN CNTRL SWITCH 3-POLE

DISC SWITCH 3P R/Y ROTARY 25A DINRL BASE ROTARY ACTUATOR RED/YELLOW MOUNTING RAIL/TWO-HOLE MOUNTING BASE MOUNTING IU=25, P/AC-23A AT 400V=9,5KW EMGNCY MAIN CNTRL SWITCH 3-POLE

150

UPC
754554732886
UNSPSC
39122233
Country of Origin
DE
Amperage Rating:
25 A
Number Of Poles:
3
Size:
3x3x17
Type:
3LD
Voltage Rating:
690 V
Wattage:
N/A
Actuator:
Rotary
Amperage Rating:
25 A
Conduit Connection:
N/A
Connection:
N/A
Contact Configuration:
N/A
Contact Rating:
N/A
Enclosure:
N/A
Environmental Conditions:
Indoor
Indicator:
N/A
Interrupt Rating:
9.5kW
Mounting:
2 Hole Mounted
Number Of Poles:
3
Operating Cycles:
N/A
Operating Temperature:
-20F to 120F Ambient Temp
Size:
3x3x17
Standard:
UL
Sub Brand:
Sentron
Trip Type:
N/A
Type:
3LD
Voltage Rating:
690 V
Wattage:
N/A
