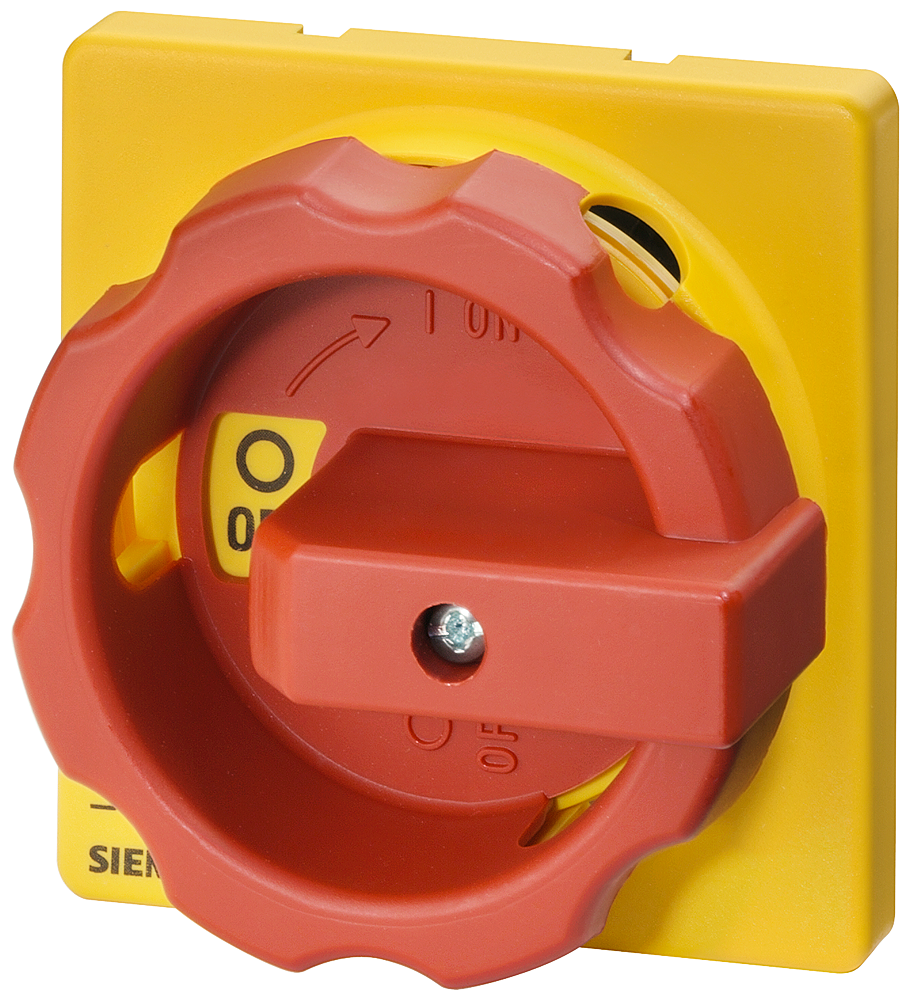

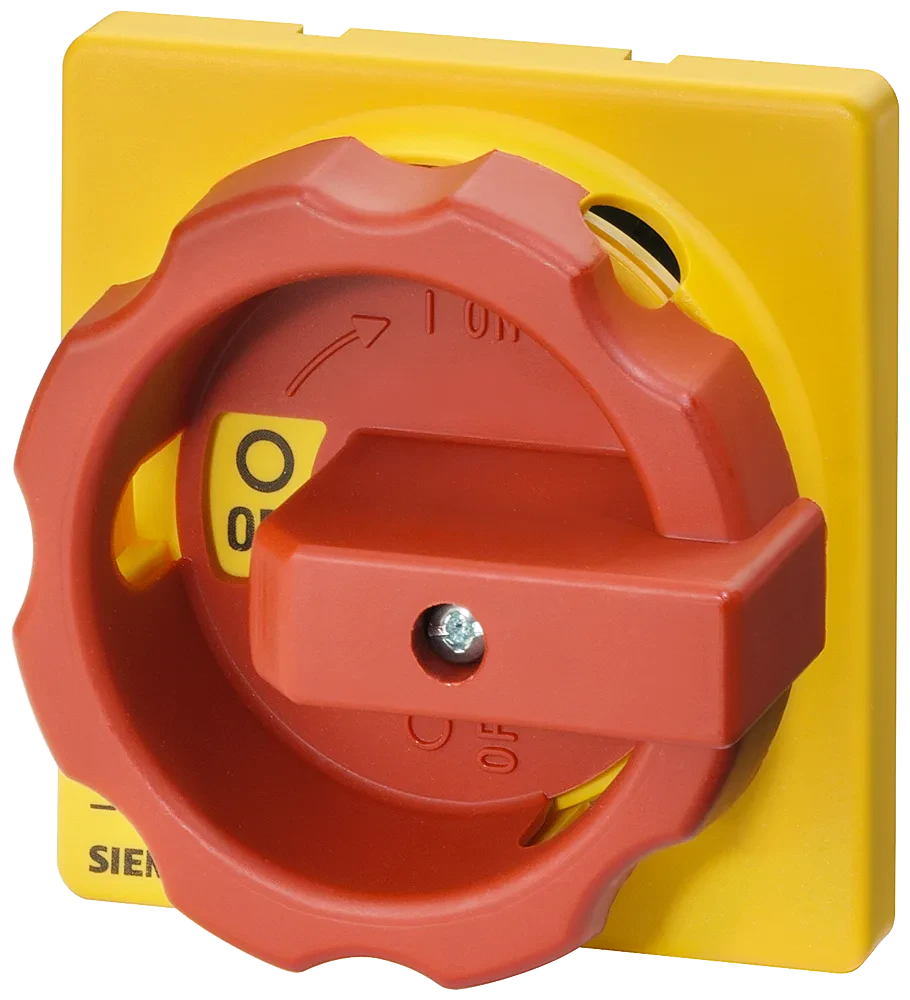

3LD2 SWITCH ACC R/Y ROTARY 4H F. =63A DO FOUR-HOLE MOUNTING FOR FRONT MOUNTING F. SWITCH 3LD2, 63 UP TO 125A ROTARY ACTUATOR RED/YELLOW

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

3LD9284-3B

Manufacturer: Siemens Industry, Inc.

Category: Disconnect Switch

$74.27 / EA

manufacturer discounts
learn about discounts

$66.59 for $1,500.00+
$64.03 for $2,500.00+
$61.46 for $3,500.00+

In stock (0)
Lead time: over 7 days
may be longer on small orders

3LD2 SWITCH ACC R/Y ROTARY 4H F. =63A DO FOUR-HOLE MOUNTING FOR FRONT MOUNTING F. SWITCH 3LD2, 63 UP TO 125A ROTARY ACTUATOR RED/YELLOW

UPC: 754554733746
UNSPSC: 39122233
Country of Origin: DE
Amperage Rating:: 63 to 125 A
Number Of Poles:: N/A
Size:: 5x4x4
Type:: 3LD
Voltage Rating:: N/A
Wattage:: N/A
Actuator:: Rotary
Amperage Rating:: 63 to 125 A
Conduit Connection:: N/A
Connection:: N/A
Contact Configuration:: N/A
Contact Rating:: N/A
Enclosure:: N/A
Environmental Conditions:: Indoor
Indicator:: N/A
Interrupt Rating:: N/A
Mounting:: 4 Hole Mounted
Number Of Poles:: N/A
Operating Cycles:: N/A
Operating Temperature:: -20F to 120F Ambient Temp
Size:: 5x4x4
Standard:: UL
Sub Brand:: Sentron
Trip Type:: N/A
Type:: 3LD
Voltage Rating:: N/A
Wattage:: N/A
