$370.36 / EA
manufacturer discounts
learn about discounts
- $332.05 for $1,500.00+
- $319.28 for $2,500.00+
- $306.50 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days

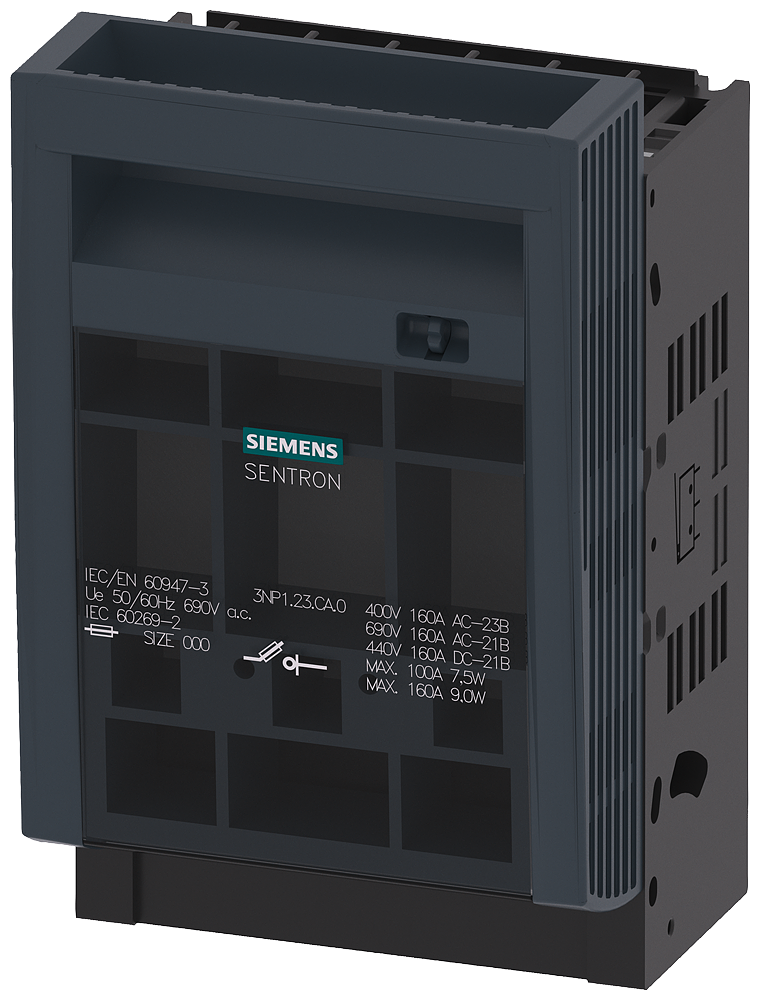

SENTRON, fuse switch disconnector 3NP1, 3-pole, NH000, 160 A, for assembly and installation on mounting plate, Rahmenklemme, cover level 45mm
SENTRON, fuse switch disconnector 3NP1, 3-pole, NH000, 160 A, for assembly and installation on mounting plate, Rahmenklemme, cover level 45mm
150
- UPC
- 040892553222
- UNSPSC
- 39122233
- Country of Origin
- DE
- Amperage Rating:
- 160 A
- Number Of Poles:
- 3
- Size:
- 3x4x6
- Type:
- OEM Dscnct & Accs 3K/3N/3P Dscnct Swches
- Voltage Rating:
- 690 V
- Wattage:
- 9 W
- Actuator:
- N/A
- Amperage Rating:
- 160 A
- Conditional short-circuit current (Iq) / at AC / at 240 V / with high-speed activation / rated value:
- 80kA
- Conditional short-circuit current (Iq) / with closed switch / at AC / at 240 V / rated value:
- 120kA
- Conduit Connection:
- N/A
- Connection:
- Box Terminals
- Contact Configuration:
- N/A
- Contact Rating:
- N/A
- Enclosure:
- Not Enclosed
- Environmental Conditions:
- Indoor
- Indicator:
- N/A
- Insulation voltage / rated value:
- 690
- Insulation voltage / with degree of pollution 2 / at AC / rated value:
- 1000V
- Insulation voltage / with degree of pollution 3 / rated value:
- 690
- Interrupt Rating:
- 120kA
- Let-through I2t value / at 240 V / maximum:
- 137000A2.s
- Let-through current (Ic) / at 240 V / maximum permissible:
- 15000A
- Mounting:
- Floor Mounting Horizontal/Vertical
- Mounting Type:
- mountingplate
- Number Of Poles:
- 3
- Operating Cycles:
- 2000
- Operating Temperature:
- (-25C -- 55C)
- Operating current / at AC-23 B / at 240 V / rated value:
- 160A
- Operating current / at DC-21 B / at 120 V / rated value:
- 160A
- Operating current / at DC-22 B / at 120 V / rated value:
- 100A
- Operating current / at DC-23 B / at 120 V / rated value:
- 80A
- Size:
- 3x4x6
- Standard:
- CB/CCC/UL/EAC/EG-KONG
- Sub Brand:
- Sentron
- Surge voltage resistance / rated value:
- 8
- Trip Type:
- N/A
- Type:
- OEM Dscnct & Accs 3K/3N/3P Dscnct Swches
- Voltage Rating:
- 690 V
- Wattage:
- 9 W
