$1,501.65 / EA
manufacturer discounts
learn about discounts
- $1,346.31 for $1,500.00+
- $1,294.52 for $2,500.00+
- $1,242.74 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days

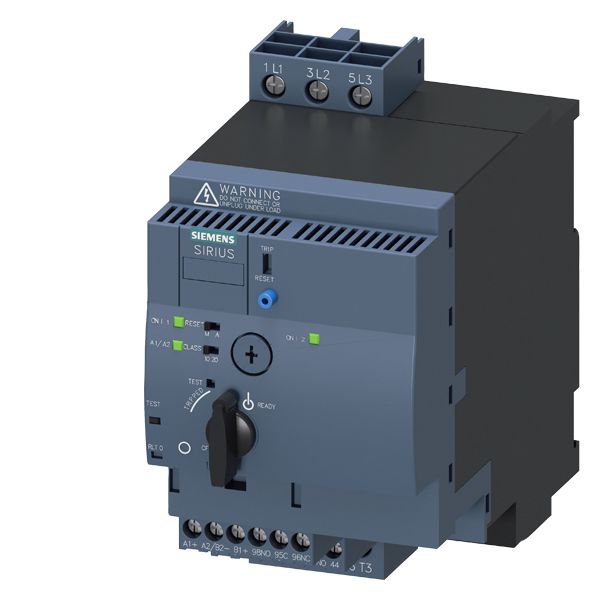

SIRIUS, compact starter, reversing starter 690 V, 24 V AC/DC, 50 ... 60 HZ, 3 ... 12 a, IP20, main circuit connection screw terminal, auxiliary circuit connection screw terminal
SIRIUS, compact starter, reversing starter 690 V, 24 V AC/DC, 50 ... 60 HZ, 3 ... 12 a, IP20, main circuit connection screw terminal, auxiliary circuit connection screw terminal
150
- UPC
- 662643359978
- UNSPSC
- 39121521
- Country of Origin
- DE
- Adjustable pick-up value current / of the current-dependent overload release / Full-scale value:
- 12 A
- Adjustable pick-up value current / of the current-dependent overload release / initial value:
- 3 A
- Ambient temperature / during operation / maximum:
- 60 °C
- Ambient temperature / during operation / minimum:
- -20 °C
- Control supply voltage / 1 / at AC / at 50 Hz / rated value:
- 24 V
- Control supply voltage / 1 / at DC / rated value:
- 24 V
- Failure rate [FIT] / with low demand rate / acc. to SN 31920:
- 100 FIT
- Operating current / at AC / at 400 V / rated value:
- 12 A
- Operating power / at AC-3 / at 400 V / rated value:
- 5.50 k kW
- Type of assignment:
- continousoperationaccordingtoIEC60947-6-2
