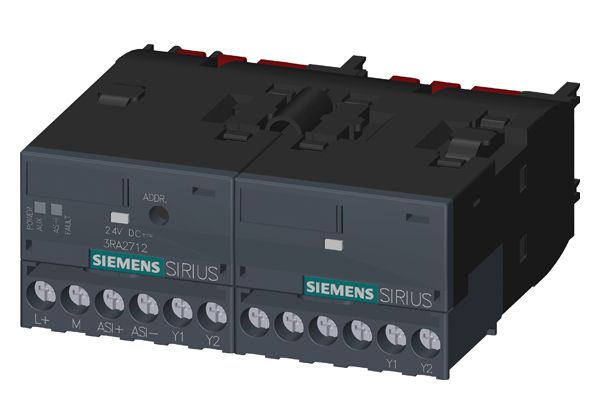

3RA27122BA00
FUNCTION MODULE FOR AS-I, REVERSING START, SPRING-LOADED CONNECTION, MOUNTED ONCONTACTORS 3RT2 S00/ S0 COMM. CAPABLE CONTACTOR REQUIRED
$960.19 / EA
Available to order
Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
Videos & documents
Documents
3RB2956-2TG2
SKU: 3RB2956-2TG2
MPN: 3RB2956-2TG2
Key specs
View all- Adjustable pick-up value current / of the current-dependent overload release / Full-scale value
- 200 A
- Adjustable pick-up value current / of the current-dependent overload release / initial value
- 20 A
- Application area
- foroverloadrelays
- Certificate of suitability / according to ATEX directive 2014/34/EU
- PTB05ATEX3022
- Mounting type
- Contactormounting/stand-aloneinstallation
- Product designation
- Currentmeasuringmodule
Description
Product overview
Current transformer 20...200 a for 3RB22/23 size s6 mount. onto cont./ stand-alone main circuit through transf. aux. circuit --
Current transformer 20...200 a for 3RB22/23 size s6 mount. onto cont./ stand-alone main circuit through transf. aux. circuit --
Manufacturer highlights
Additional manufacturer notes
- Short name
- S-A
- Feed description
- S-A 3RB2956-2TG2 TRANSFORMER,CURREN
- Invoice description
- TRANSFORMER,CURRENT 20...200 A FOR 3RB2
Specifications
- UPC
- 040892553772
- UNSPSC
- 39121552
- Country of Origin
- DE
- Adjustable pick-up value current / of the current-dependent overload release / Full-scale value
- 200 A
- Adjustable pick-up value current / of the current-dependent overload release / initial value
- 20 A
- Application area
- foroverloadrelays
- Certificate of suitability / according to ATEX directive 2014/34/EU
- PTB05ATEX3022
- Mounting type
- Contactormounting/stand-aloneinstallation
- Product designation
- Currentmeasuringmodule
- Type of electrical connection / for main current circuit
- straight-throughtransformers
- Type of protection
- PTB05ATEX3022ExII(2)GD
- Type of protection / according to ATEX directive 2014/34/EU
- ExII(2)GD
- product brand name
- SIRIUS
