Aux.switch block,front,3NO, curr.path 1NO, 1NO, 1NO, f. cont. relays a. motor cont., sz s00 and s0, screw terminal .3 / .4, .3 / .4, .3 / .4
Aux.switch block,front,3NO, curr.path 1NO, 1NO, 1NO, f. cont. relays a. motor cont., sz s00 and s0, screw terminal .3 / .4, .3 / .4, .3 / .4

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

3RH29111HA30

$31.78 / EA

manufacturer discounts
learn about discounts

  • $28.50 for $1,500.00+
  • $27.40 for $2,500.00+
  • $26.30 for $3,500.00+
Available to order

Local stock: 0
Lead time: over 7 working days

Aux.switch block,front,3NO, curr.path 1NO, 1NO, 1NO, f. cont. relays a. motor cont., sz s00 and s0, screw terminal .3 / .4, .3 / .4, .3 / .4

Aux.switch block,front,3NO, curr.path 1NO, 1NO, 1NO, f. cont. relays a. motor cont., sz s00 and s0, screw terminal .3 / .4, .3 / .4, .3 / .4

150

UPC
662643910124
UNSPSC
39121522
Country of Origin
CZ
Design of the product:
forsnappingontothefront
Insulation voltage / with degree of pollution 3 / rated value:
690 V
Mounting type:
snap-onmounting
Product designation:
auxiliaryswitch
Protection class IP / on the front:
IP20
Size of contactor:
S00,S0,S2,S3
Type of connectable conductor cross-sections / at AWG conductors / for auxiliary contacts:
2x(20...16),2x(18...14)
Type of connectable conductor cross-sections / for auxiliary contacts / finely stranded / with core end processing:
2x(0.5...1.5mm²),2x(0.75...2.5mm²)
Type of electrical connection / for auxiliary and control current circuit:
screw-typeterminals
product brand name:
SIRIUS

Recently Viewed

  • placeholder image

    3RH29111HA30

    SIEMENS INDUSTRY, INC.
    Aux.switch block,front,3NO, curr.path 1NO, 1NO, 1NO, f. cont. relays a. motor cont., sz s00 and s0, screw terminal .3 / .4, .3 / .4, .3 / .4
    See more details
  • placeholder image

    4428802EN3-710

    MURRAY FEISS
    Unfortunately, we do not have a description available for 4428802EN3-710. Please call (800) 462-77...
    See more details
  • placeholder image

    3RM13022AA14

    SIEMENS INDUSTRY, INC.
    MOTOR STARTER SIRIUS 3RM1 REVERSING STARTER SAFETY 500 V 0,4-2,0 A 110-230 V ACPUSH-IN-TYPE CONNECTION SYSTEM
    See more details
  • placeholder image

    FMR12BLA

    TECHNICAL CONSUMER PRODUCT TCP
    Unfortunately, we do not have a description available for FMR12BLA. Please call (800) 462-7733...
    See more details
  • placeholder image

    22390THSS240V

    TPI CORPORATION

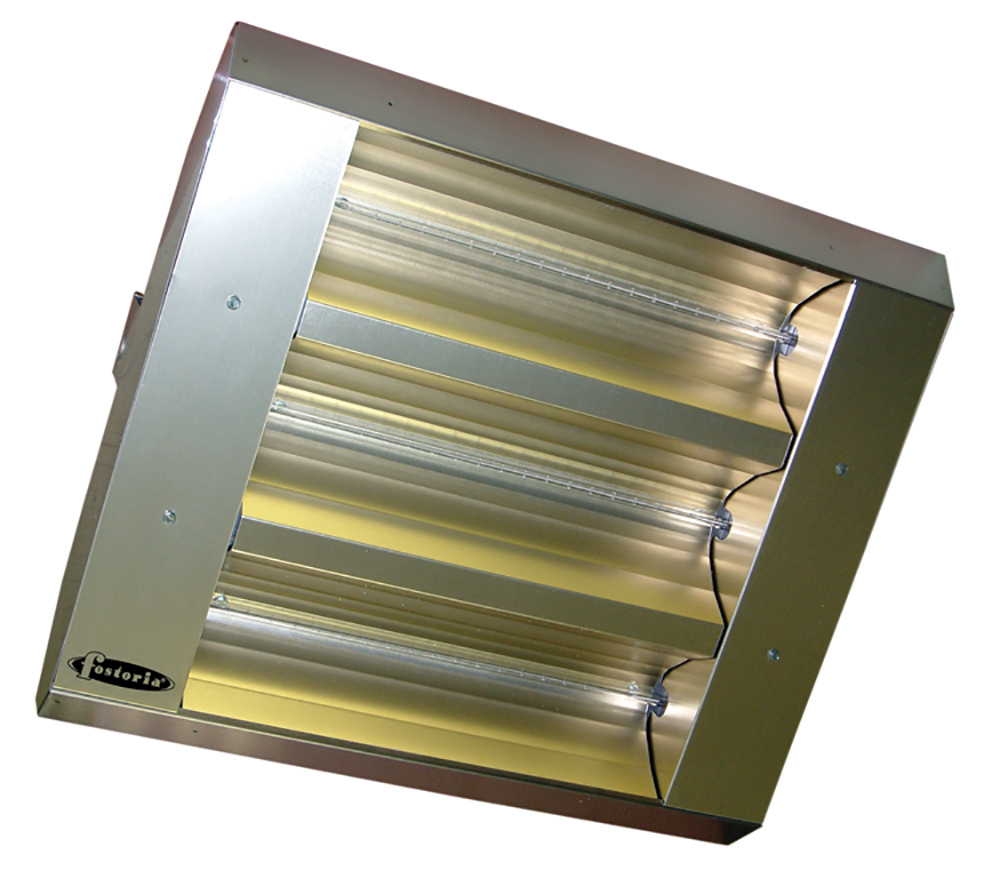

    Electric Infrared Heater, Fostoria, 4.8 KW, 240 V, Dimensions- 24 Length X 21-1/2 Width X 10-7/8 Height IN, 1/3 PH, Stainless Steel Housing, Mul-T-Mou...
