3RK31221AC00

SKU: 3RK31221AC00

MPN: 3RK31221AC00

Purchase options

$1,574.92 / EA

manufacturer discounts
learn about discounts

$1,412.00 for $1,500.00+
$1,357.69 for $2,500.00+
$1,303.38 for $3,500.00+

Available to order

Local stock: 0
Lead time: over 7 working days

Lead time: over 7 working days
Secure checkout with protected order handling.
Single-unit ordering available.

Dale Electric Supply ships electrical products across the U.S. and supports international orders through customer service. Local delivery may be available in defined regional delivery zones, and larger same-manufacturer orders may qualify for factory-direct shipping. Shipping and fulfillment can vary by product, vendor, manufacturer program, stock state, destination, quantity, and quote workflow.

Customer Service International Sales Factory Direct Shipping

Buying confidence

Established 1948
Secure checkout and protected order handling
Phone support for compatibility and stock questions

Need cross-reference help?

Send us the SKU, manufacturer, photo, or catalog reference. We can cross-reference, confirm availability, and help source hard-to-find electrical supplies.

Contact support Browse catalog Search products

Request a quote

Key specs

View all

Ambient temperature / during storage / maximum: 85 °C
Ambient temperature / during storage / minimum: -40 °C
Degree of pollution: 3
Design of the product: 2/4F-DI,4DI,1F-RO,1F-DO
Height: 111 mm
Installation altitude / at height above sea level / maximum: 2000 m

Description

Product overview

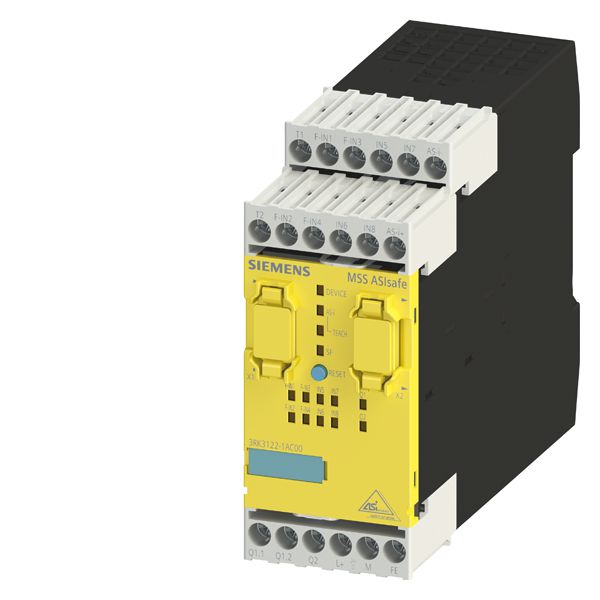

SIRIUS, CENTRAL UNIT 3RK3 ASISAFE EXTENDED FOR MODULAR SAFETY SYSTEM 3RK3 2/4F-DI,4DI,1F-RO,1F-DO,24V DC MONITORING OF ASI SLAVES, CONTROL OF 10 SAFE OUTPUTS ON AS-I BUS PARAMETERIZABLE VIA SW MSS ES WIDTH 45MM SCREW TERMINAL UP TO SIL3 (IEC 61508) UP TO PERFORMANCE LEVEL E (ISO 13849-1) 2 EXPANSION MODULES CAN BE CONNECTED

Manufacturer highlights

Additional manufacturer notes

Short name: S-A
Feed description: S-A 3RK31221AC00 MSS ASIsafe Extend
Invoice description: MSS ASIsafe Extended - Screw

Specifications

UPC: 887621034320

UNSPSC: 32151705

Country of Origin: DE

Ambient temperature / during storage / maximum: 85 °C

Ambient temperature / during storage / minimum: -40 °C

Degree of pollution: 3

Design of the product: 2/4F-DI,4DI,1F-RO,1F-DO

Height: 111 mm

Installation altitude / at height above sea level / maximum: 2000 m

Product designation: Centralunit

Protection class IP: IP20

Shock resistance: 15g/11ms

Width: 45 mm

mounting position: vertical

product brand name: SIRIUS
