$719.64 / EA
manufacturer discounts
learn about discounts
- $645.19 for $1,500.00+
- $620.38 for $2,500.00+
- $595.56 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days

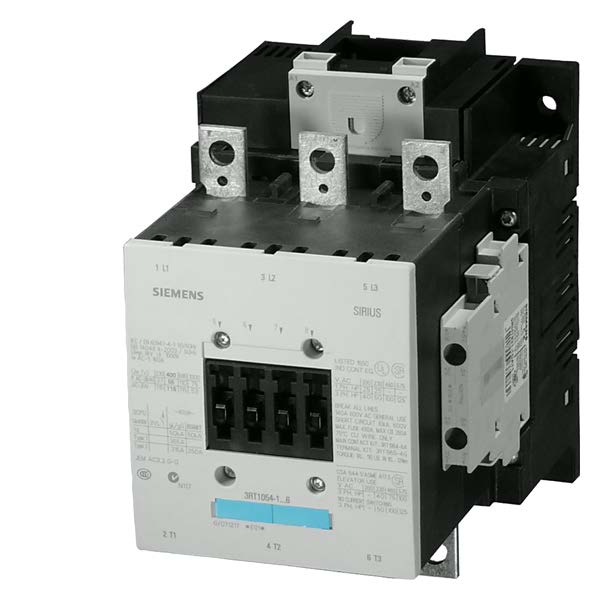

Contactor,IEC,Sirius,Standard 3 Pole,Non-Reversing 110 - 127 AC/DC Coil Frame Size S6,115A Panel Mount 2 NO ( & ) 2 NC Auxiliaries No Suppression Lugs (Not Included) Terminals UL File E31519 in Vol.11 Sec. 5
Contactor,IEC,Sirius,Standard 3 Pole,Non-Reversing 110 - 127 AC/DC Coil Frame Size S6,115A Panel Mount 2 NO ( & ) 2 NC Auxiliaries No Suppression Lugs (Not Included) Terminals UL File E31519 in Vol.11 Sec. 5
150
- UPC
- 754554771014
- UNSPSC
- 39121529
- Country of Origin
- DE

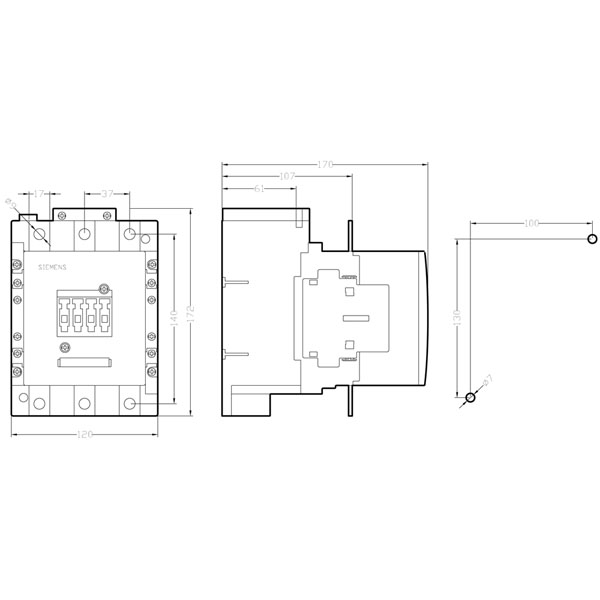

- Size:
- 172 MM Height x 120 MM Width x 170 MM Depth
- Type:
- Non-Reversing
- Wattage:
- 55 kW
- Coil Voltage:
- 110/127@40/60Hz V
- Connection:
- Screw, bar
- Contact Configuration:
- 3 NO Main, 2 NO 2 NC Auxillary
- Operating Cycles:
- 10000000 of the contactor / typical, 10000000 of the contactor with added auxiliary switch block / typical, 5,000,000 of the contactor with added electronics-compatible auxiliary switch block / typical
- Operating Temperature:
- -25 To 60 DEG C
- Phase:
- 3
- Size:
- 172 MM Height x 120 MM Width x 170 MM Depth
- Standard:
- GOST, CCC, UL, KETI Listed, CSA Certified
- Sub Brand:
- SIRIUS
- Type:
- Non-Reversing
- Wattage:
- 55 kW
