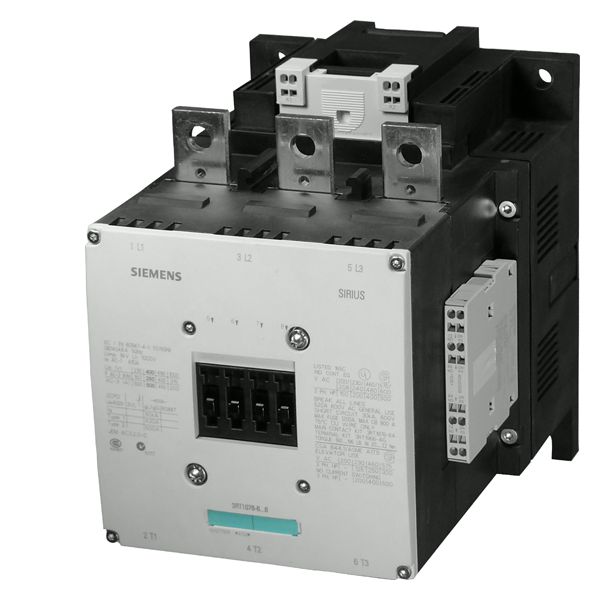

Siemens Industry, Inc. 3RT14762AP36 Contactors product image

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

Videos & documents

Documents

Spec Sheet

3RT14762AP36

SKU: 3RT14762AP36

MPN: 3RT14762AP36

Purchase options

$4,357.45 / EA

manufacturer discounts
learn about discounts

$3,906.68 for $1,500.00+
$3,756.42 for $2,500.00+
$3,606.17 for $3,500.00+

Available to order

Lead time: over 7 working days

Lead time: over 7 working days
Secure checkout with protected order handling.
Single-unit ordering available.

Dale Electric Supply ships electrical products across the U.S. and supports international orders through customer service. Local delivery may be available in defined regional delivery zones, and larger same-manufacturer orders may qualify for factory-direct shipping. Shipping and fulfillment can vary by product, vendor, manufacturer program, stock state, destination, quantity, and quote workflow.

Customer Service International Sales Factory Direct Shipping

Buying confidence

Established 1948
Secure checkout and protected order handling
Phone support for compatibility and stock questions

Need cross-reference help?

Send us the SKU, manufacturer, photo, or catalog reference. We can cross-reference, confirm availability, and help source hard-to-find electrical supplies.

Contact support Browse catalog Search products

Key specs

View all

Design of the surge suppressor: withvaristor
Mounting type: screwfixing
Mounting type / Side-by-side mounting: Yes
Product function / Bus communication: No
Protection class IP / on the front: IP00
Size of contactor: S12

Description

Product overview

CONTACTOR, 690A/AC-1 AC(40...60HZ)/DC OPERATION UC 220-240V AUX. CONTACTS 2NO+2NC 3-POLE, SIZE S12 BAR CONNECTIONS CONVENT.OPERATING MECHANISM COIL AND AUX. SWITCH IN SPRING-LOADED TECHNOLOGY

Manufacturer highlights

Additional manufacturer notes

Short name: S-A
Feed description: S-A 3RT14762AP36 CONTACTOR RES S12
Invoice description: CONTACTOR RES S12 690A 220-240VUC 3P BAR

Specifications

UPC: 887621149536

UNSPSC: 39121529

Country of Origin: DE

Design of the surge suppressor: withvaristor

Mounting type: screwfixing

Mounting type / Side-by-side mounting: Yes

Product function / Bus communication: No

Protection class IP / on the front: IP00

Size of contactor: S12

Type of electrical connection / for auxiliary and control current circuit: spring-loadedterminals

Type of voltage: AC/DC

mounting position: withverticalmountingsurface+/-90°rotatable,withverticalmountingsurface+/-22.5°tiltabletothefrontandback

product brand name: SIRIUS
