Cont., AC-3, 4KW/400V AC-1 18a, AC 110v 50HZ/120v 60HZ, 4-pole, 2s+2oe, size s00, spring-type term.
Cont., AC-3, 4KW/400V AC-1 18a, AC 110v 50HZ/120v 60HZ, 4-pole, 2s+2oe, size s00, spring-type term.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

3RT25162AK60

Category
Contactors

$96.29 / EA

manufacturer discounts
learn about discounts

  • $86.33 for $1,500.00+
  • $83.01 for $2,500.00+
  • $79.69 for $3,500.00+
Available to order

Local stock: 0
Lead time: over 7 working days

Cont., AC-3, 4KW/400V AC-1 18a, AC 110v 50HZ/120v 60HZ, 4-pole, 2s+2oe, size s00, spring-type term.

Cont., AC-3, 4KW/400V AC-1 18a, AC 110v 50HZ/120v 60HZ, 4-pole, 2s+2oe, size s00, spring-type term.

150

UPC
662643916560
UNSPSC
39121529
Country of Origin
DE
Operating current / at 1 current path / at DC-1 / at 110 V / rated value:
2.1 A
Operating current / at 1 current path / at DC-1 / at 220 V / rated value:
0.8 A
Operating current / at 1 current path / at DC-1 / at 24 V / rated value:
20 A
Operating current / at 1 current path / at DC-1 / at 440 V / rated value:
0.6 A
Operating power / at AC-1 / at 230 V / rated value:
6.5 kW
Operating power / at AC-1 / at 400 V / rated value:
11.00 k kW
Operating power / at AC-2 / at AC-3 / at 230 V / per NC contact / rated value:
2.2 kW
Operating power / at AC-2 / at AC-3 / at 230 V / per NO contact / rated value:
2.2 kW
Operating power / at AC-2 / at AC-3 / at 400 V / per NC contact / rated value:
4 kW
Operating power / at AC-2 / at AC-3 / at 400 V / per NO contact / rated value:
4 kW

Recently Viewed

  • placeholder image

    3RT25162AK60

    SIEMENS INDUSTRY, INC.
    Cont., AC-3, 4KW/400V AC-1 18a, AC 110v 50HZ/120v 60HZ, 4-pole, 2s+2oe, size s00, spring-type term.
    See more details
  • placeholder image

    WM 2917FO-WH

    WIREMOLD
    2900 Series Radiused Interior Elbow. Makes right angle turns around internal corners of 2900 Series Raceway running at right angles. Maintains 1 1/4"...
    See more details
  • placeholder image

    T5093CR-SL

    LITE MASTER
    Unfortunately, we do not have a description available for T5093CR-SL. Please call (800) 462-7733 See more details
  • placeholder image

    NLCBC2-45140MPW/10LE4

    NORA LIGHTING
    Unfortunately, we do not have a description available for NLCBC2-45140MPW/10LE4. Please call (800)...
    See more details
  • placeholder image

    WM RD3RWH10

    WIREMOLD

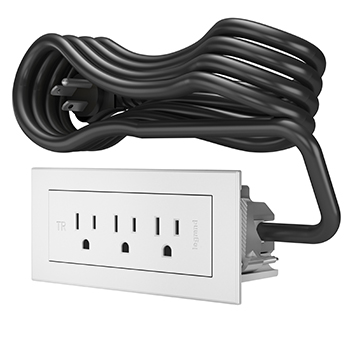

    radiant Furniture Power Centers bring convenient power and charging right to the spaces where people work and play, all in a compact, aesthetically pl...
