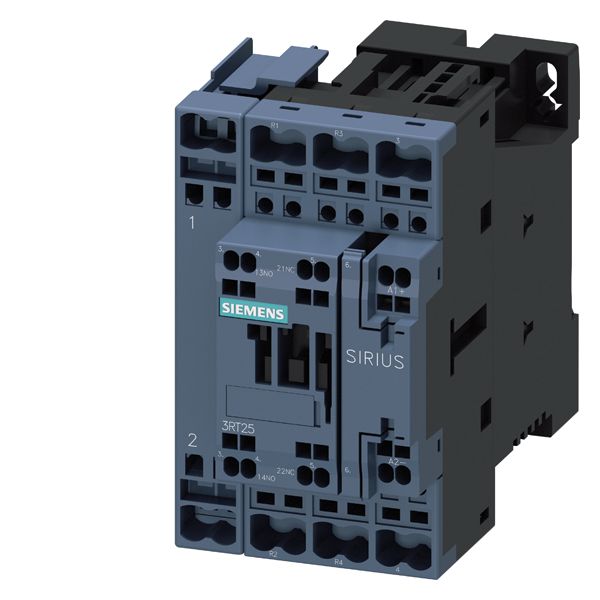

CONT., AC-3, 11KW/400V, AC-1 40A, 1S+1OE, DC 110V, 4-POLE, 2S+2OE, SIZE S0, SPRING-TYPE TERM.
CONT., AC-3, 11KW/400V, AC-1 40A, 1S+1OE, DC 110V, 4-POLE, 2S+2OE, SIZE S0, SPRING-TYPE TERM.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

3RT25262BF40

Category
Contactors

$400.77 / EA

manufacturer discounts
learn about discounts

  • $359.31 for $1,500.00+
  • $345.49 for $2,500.00+
  • $331.67 for $3,500.00+
Available to order

Local stock: 0
Lead time: over 7 working days

CONT., AC-3, 11KW/400V, AC-1 40A, 1S+1OE, DC 110V, 4-POLE, 2S+2OE, SIZE S0, SPRING-TYPE TERM.

CONT., AC-3, 11KW/400V, AC-1 40A, 1S+1OE, DC 110V, 4-POLE, 2S+2OE, SIZE S0, SPRING-TYPE TERM.

150

UPC
662643918359
UNSPSC
39121529
Country of Origin
DE
Operating current / at 1 current path / at DC-1 / at 110 V / rated value:
4.5 A
Operating current / at 1 current path / at DC-1 / at 220 V / rated value:
1 A
Operating current / at 1 current path / at DC-1 / at 24 V / rated value:
35 A
Operating current / at 1 current path / at DC-1 / at 440 V / rated value:
0.4 A
Operating power / at AC-1 / at 230 V / rated value:
15 kW
Operating power / at AC-1 / at 400 V / rated value:
26.00 k kW
Operating power / at AC-2 / at AC-3 / at 230 V / per NC contact / rated value:
5.5 kW
Operating power / at AC-2 / at AC-3 / at 230 V / per NO contact / rated value:
5.5 kW
Operating power / at AC-2 / at AC-3 / at 400 V / per NC contact / rated value:
7.5 kW
Operating power / at AC-2 / at AC-3 / at 400 V / per NO contact / rated value:
11 kW
