3RT26171AP63
SKU: 3RT26171AP63
MPN: 3RT26171AP63
Key specs
View all- Number Of Poles
- 3
Description
Product overview

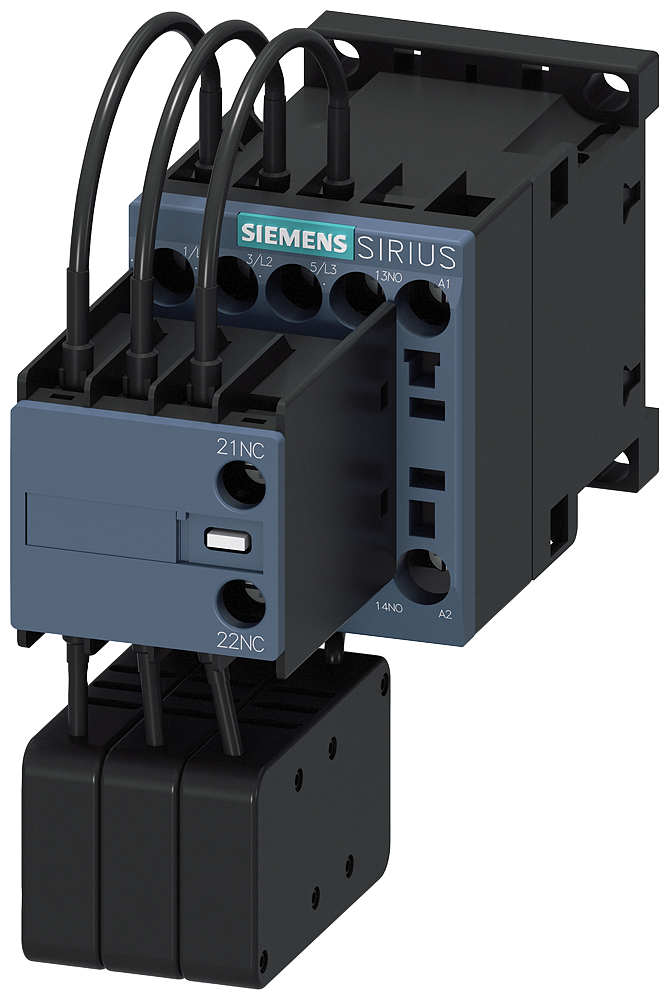

CONT.. AC-6B. 12.5KVAR/400V. 1NO+1NC. 220 V 50 HZ / 240 V 60 HZ. 3-POLE. SIZE S00 SCREW TERMINALS
CONT.. AC-6B. 12.5KVAR/400V. 1NO+1NC. 220 V 50 HZ / 240 V 60 HZ. 3-POLE. SIZE S00 SCREW TERMINALS
Manufacturer highlights
Additional manufacturer notes
- Short name
- S-A
- Feed description
- S-A 3RT26171AP63 CAP CONTACTOR 12.5
- Invoice description
- CAP CONTACTOR 12.5KVAR 240VAC 50/60HZ
Specifications
- UPC
- 804766233654
- UNSPSC
- 39121529
- Country of Origin
- DE
- Number Of Poles
- 3
- Design of the fuse link / for short-circuit protection of the main circuit / with type of coordination 1 / required
- gG:40A(690V,50kA)
- Number Of Poles
- 3
- Operating current / of auxiliary contacts / at DC-12 / at 600 V
- 0.15 A
- Operational reactive power / at 110/120 V / at 60 Hz / 1 phase / at ambient temperature 40 °C / rated value
- 2 kvar
- Operational reactive power / at 110/120 V / at 60 Hz / 3 phase / at ambient temperature 40 °C / rated value
- 3.4 kvar
- Operational reactive power / at AC-6b / at 400 V / at 50/60 Hz / at ambient temperature 60 °C / rated value / maximum
- 12.5 kvar
- Product extension / Auxiliary switch
- No
- Shock resistance / at rectangular impulse / at AC
- 6,7g/5ms,4,2g/10ms
- Size of contactor
- S00
- Type of connectable conductor cross-sections / for main contacts / finely stranded / with core end processing
- 2x(0.5...1.5mm²),2x(0.75...2.5mm²)
Do you have a question about 3RT26171AP63?
