$298.58 / EA
manufacturer discounts
learn about discounts
- $267.70 for $1,500.00+
- $257.40 for $2,500.00+
- $247.10 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days

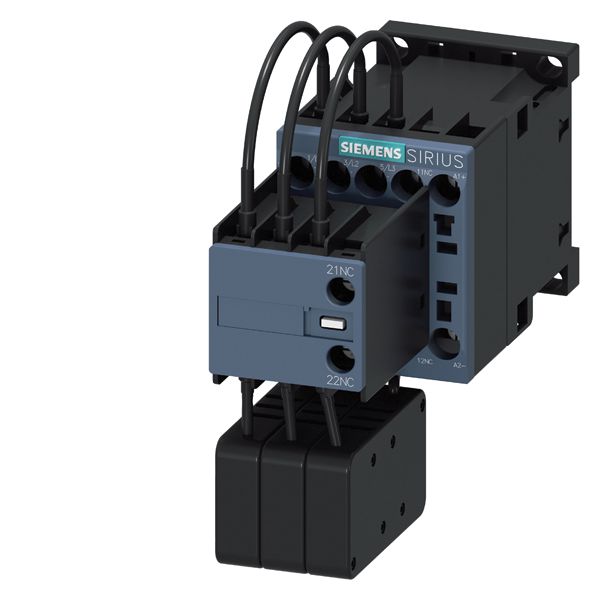

CONTACTOR, AC-6B,12.5KVAR/400V, 2NC, 24 V DC 3-POLE, SIZE S00 SCREW TERMINAL
CONTACTOR, AC-6B,12.5KVAR/400V, 2NC, 24 V DC 3-POLE, SIZE S00 SCREW TERMINAL
150
- UPC
- 804766160202
- UNSPSC
- 39121529
- Country of Origin
- DE
- Number Of Poles:
- 3
- Design of the fuse link / for short-circuit protection of the main circuit / with type of coordination 1 / required:
- gG:40A(690V,50kA)
- Number Of Poles:
- 3
- Operating current / of auxiliary contacts / at DC-12 / at 600 V:
- 0.15 A
- Operational reactive power / at 110/120 V / at 60 Hz / 1 phase / at ambient temperature 40 °C / rated value:
- 2 kvar
- Operational reactive power / at 110/120 V / at 60 Hz / 3 phase / at ambient temperature 40 °C / rated value:
- 3.4 kvar
- Operational reactive power / at AC-6b / at 400 V / at 50/60 Hz / at ambient temperature 60 °C / rated value / maximum:
- 12.5 kvar
- Product extension / Auxiliary switch:
- No
- Product function / Mirror contact acc. to IEC 60947-4-1:
- No
- Size of contactor:
- S00
- Type of connectable conductor cross-sections / for main contacts / finely stranded / with core end processing:
- 2x(0.5...1.5mm²),2x(0.75...2.5mm²)
