CONTACTOR, AC-6B,12.5KVAR/400V, 2NC, 110 V DC 3-POLE, SIZE S00 SCREW TERMINAL
CONTACTOR, AC-6B,12.5KVAR/400V, 2NC, 110 V DC 3-POLE, SIZE S00 SCREW TERMINAL
150
- UPC
- 804766160226
- UNSPSC
- 39121529
- Country of Origin
- DE
- Number Of Poles:
- 3
- Design of the fuse link / for short-circuit protection of the main circuit / with type of coordination 1 / required:
- gG:40A(690V,50kA)
- Number Of Poles:
- 3
- Operating current / of auxiliary contacts / at DC-12 / at 600 V:
- 0.15 A
- Operational reactive power / at 110/120 V / at 60 Hz / 1 phase / at ambient temperature 40 °C / rated value:
- 2 kvar
- Operational reactive power / at 110/120 V / at 60 Hz / 3 phase / at ambient temperature 40 °C / rated value:
- 3.4 kvar
- Operational reactive power / at AC-6b / at 400 V / at 50/60 Hz / at ambient temperature 60 °C / rated value / maximum:
- 12.5 kvar
- Product extension / Auxiliary switch:
- No
- Product function / Mirror contact acc. to IEC 60947-4-1:
- No
- Size of contactor:
- S00
- Type of connectable conductor cross-sections / for main contacts / finely stranded / with core end processing:
- 2x(0.5...1.5mm²),2x(0.75...2.5mm²)
Recently Viewed
-
3RT26171BF45
SIEMENS INDUSTRY, INC.
CONTACTOR, AC-6B,12.5KVAR/400V, 2NC, 110 V DC 3-POLE, SIZE S00 SCREW TERMINAL
See more details -
-
IAMLGL7NG6BHS
APPLETON ELECTRIC CO
Unfortunately, we do not have a description available for IAMLGL7NG6BHS. Please call (800) 462-773...
See more details -
-
BRY28W09
BRYANT ELECTRIC

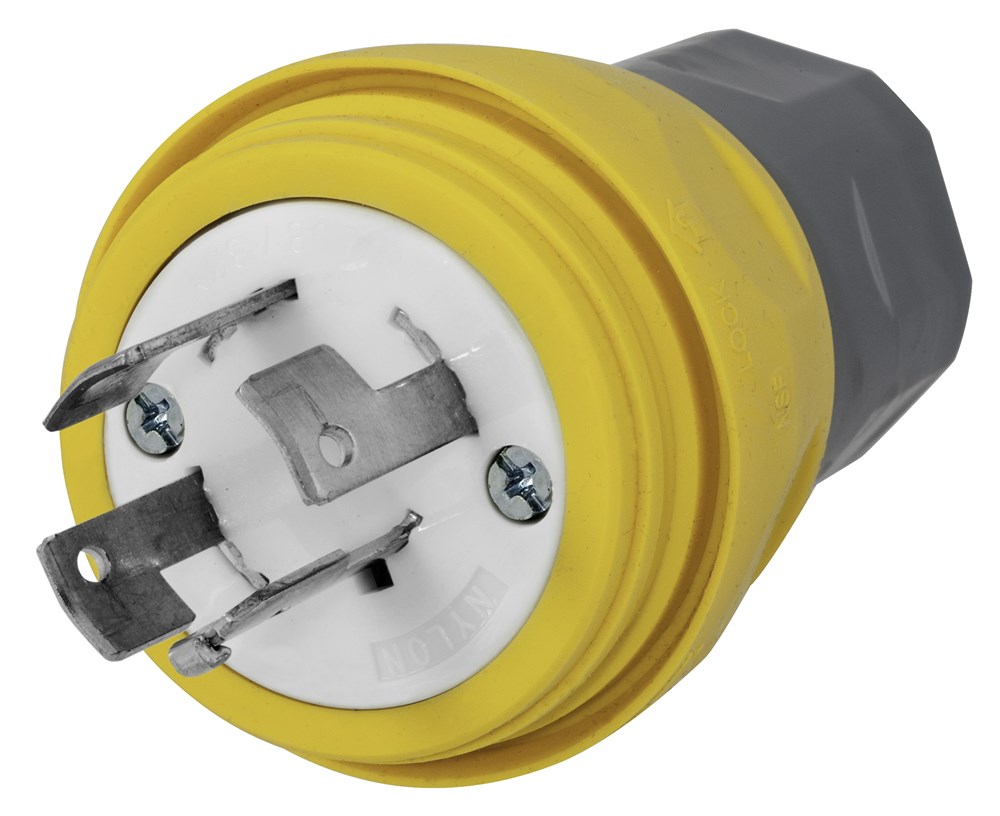

Watertight Devices, Locking Devices, Elastomeric, Male Plug, 30A 3-Phase 120/208V AC, 4-Pole 4-Wire Non-Grounding, Non-NEMA, Screw Terminal, Yellow,...
