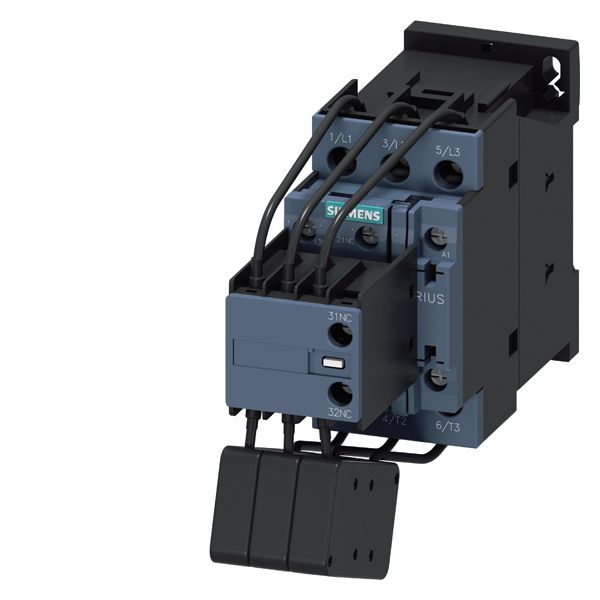

CONTACTOR, AC-6B,16.7KVAR/400V, 1NO+2NC, 24 V AC 50HZ 3-POLE, SIZE S0 SCREW TERMINAL
CONTACTOR, AC-6B,16.7KVAR/400V, 1NO+2NC, 24 V AC 50HZ 3-POLE, SIZE S0 SCREW TERMINAL

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

3RT26251AB05

Category
Contactors

$214.60 / EA

manufacturer discounts
learn about discounts

  • $192.40 for $1,500.00+
  • $185.00 for $2,500.00+
  • $177.60 for $3,500.00+
Available to order

Local stock: 0
Lead time: over 7 working days

CONTACTOR, AC-6B,16.7KVAR/400V, 1NO+2NC, 24 V AC 50HZ 3-POLE, SIZE S0 SCREW TERMINAL

CONTACTOR, AC-6B,16.7KVAR/400V, 1NO+2NC, 24 V AC 50HZ 3-POLE, SIZE S0 SCREW TERMINAL

150

UPC
804766160233
UNSPSC
39121529
Country of Origin
DE
Number Of Poles:
3
Design of the fuse link / for short-circuit protection of the main circuit / with type of coordination 1 / required:
gG:50A(690V,50kA)
Number Of Poles:
3
Operating current / of auxiliary contacts / at DC-12 / at 600 V:
0.15 A
Operational reactive power / at 110/120 V / at 60 Hz / 1 phase / at ambient temperature 40 °C / rated value:
2.7 kvar
Operational reactive power / at 110/120 V / at 60 Hz / 3 phase / at ambient temperature 40 °C / rated value:
4.6 kvar
Operational reactive power / at AC-6b / at 400 V / at 50/60 Hz / at ambient temperature 60 °C / rated value / maximum:
16.7 kvar
Product extension / Auxiliary switch:
No
Shock resistance / at rectangular impulse / at AC:
7,5g/5ms,4,7g/10ms
Size of contactor:
S0
Type of connectable conductor cross-sections / for main contacts / finely stranded / with core end processing:
2x(1...2.5mm²),2x(2.5...6mm²),1x10mm²
