$329.41 / EA
manufacturer discounts
learn about discounts
- $295.33 for $1,500.00+
- $283.98 for $2,500.00+
- $272.62 for $3,500.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders

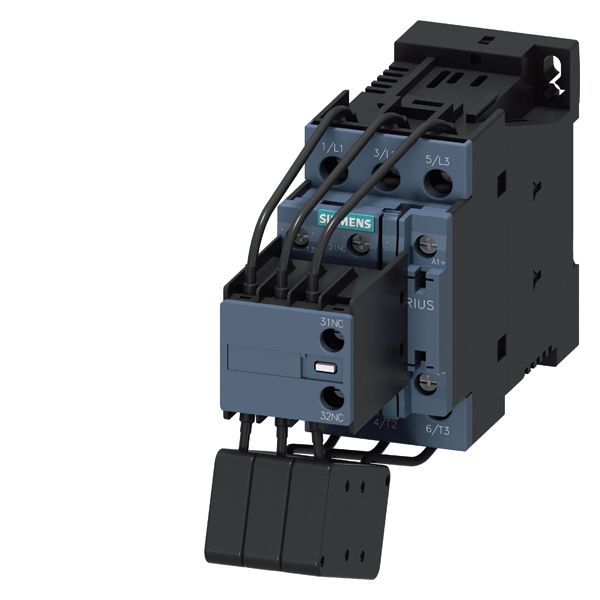

CONTACTOR, AC-6B, 20KVAR/400V, 1NO+2NC, 24 V DC, 3-POLE, SIZE S0 SCREW TERMINAL
CONTACTOR, AC-6B, 20KVAR/400V, 1NO+2NC, 24 V DC, 3-POLE, SIZE S0 SCREW TERMINAL
150
- UPC
- 804766160349
- UNSPSC
- 39121529
- Country of Origin
- DE
- Number Of Poles:
- 3
- Design of the fuse link / for short-circuit protection of the main circuit / with type of coordination 1 / required:
- gG:63A(690V,50kA)
- Number Of Poles:
- 3
- Operating current / of auxiliary contacts / at DC-12 / at 600 V:
- 0.15 A
- Operational reactive power / at 110/120 V / at 60 Hz / 1 phase / at ambient temperature 40 °C / rated value:
- 3.2 kvar
- Operational reactive power / at 110/120 V / at 60 Hz / 3 phase / at ambient temperature 40 °C / rated value:
- 5.5 kvar
- Operational reactive power / at AC-6b / at 400 V / at 50/60 Hz / at ambient temperature 60 °C / rated value / maximum:
- 20 kvar
- Product extension / Auxiliary switch:
- No
- Product function / Mirror contact acc. to IEC 60947-4-1:
- No
- Size of contactor:
- S0
- Type of connectable conductor cross-sections / for main contacts / finely stranded / with core end processing:
- 2x(1...2.5mm²),2x(2.5...6mm²),1x10mm²
45377
$14.22 /ea
CONTACT,BLACK (ES750) (50453777)
86645
$158.01 /ea
CONTACTOR (91866456)
3RT1466-6AB36
$1,840.20 /ea
DRIVE CONVENTIONAL RAIL CONNECTIONS 3-POLE, SIZE S10 AUXILIARY CONTACTS 2NO+2NCAC/DC OPERATION 23-26V UC CONTACTOR, 400A/AC-1
| Attributed Data | Included |
|---|---|
| Design of the surge suppressor | withvaristor Yes |
| Mounting type | screwfixing Yes |
| Mounting type / Side-by-side mounting | Yes Yes |
| Product function / Bus communication | No Yes |
| Protection class IP / on the front | IP00 Yes |
| Size of contactor | S10 Yes |
| Type of electrical connection / for auxiliary and control current circuit | screw-typeterminals Yes |
| Type of voltage | AC/DC Yes |
| mounting position | withverticalmountingsurface+/-90°rotatable,withverticalmountingsurface+/-22.5°tiltabletothefrontandback Yes |
| product brand name | SIRIUS Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
45377
CONTACT,BLACK (ES750) (50453777)
$14.22 / EA
|
86645
CONTACTOR (91866456)
$158.01 / EA
|
3RT1466-6AB36
DRIVE CONVENTIONAL RAIL CONNECTIONS 3-POLE, SIZE S10 AUXILIARY CONTACTS 2NO+2NCAC/DC OPERATION 23-26V UC CONTACTOR, 400A/AC-1
$1,840.20 / EA
|
|
| Attributed Data | |||
| Design of the surge suppressor | withvaristor withvaristor | ||
| Mounting type | screwfixing screwfixing | ||
| Mounting type / Side-by-side mounting | Yes Yes | ||
| Product function / Bus communication | No No | ||
| Protection class IP / on the front | IP00 IP00 | ||
| Size of contactor | S10 S10 | ||
| Type of electrical connection / for auxiliary and control current circuit | screw-typeterminals screw-typeterminals | ||
| Type of voltage | AC/DC AC/DC | ||
| mounting position | withverticalmountingsurface+/-90°rotatable,withverticalmountingsurface+/-22.5°tiltabletothefrontandback withverticalmountingsurface+/-90°rotatable,withverticalmountingsurface+/-22.5°tiltabletothefrontandback | ||
| product brand name | SIRIUS SIRIUS | ||
| Add a product to the cart | Show more details | Show more details | Show more details |
