3RT26281AC25

SKU: 3RT26281AC25

MPN: 3RT26281AC25

Key specs

View all
Number Of Poles
3

Description

Product overview

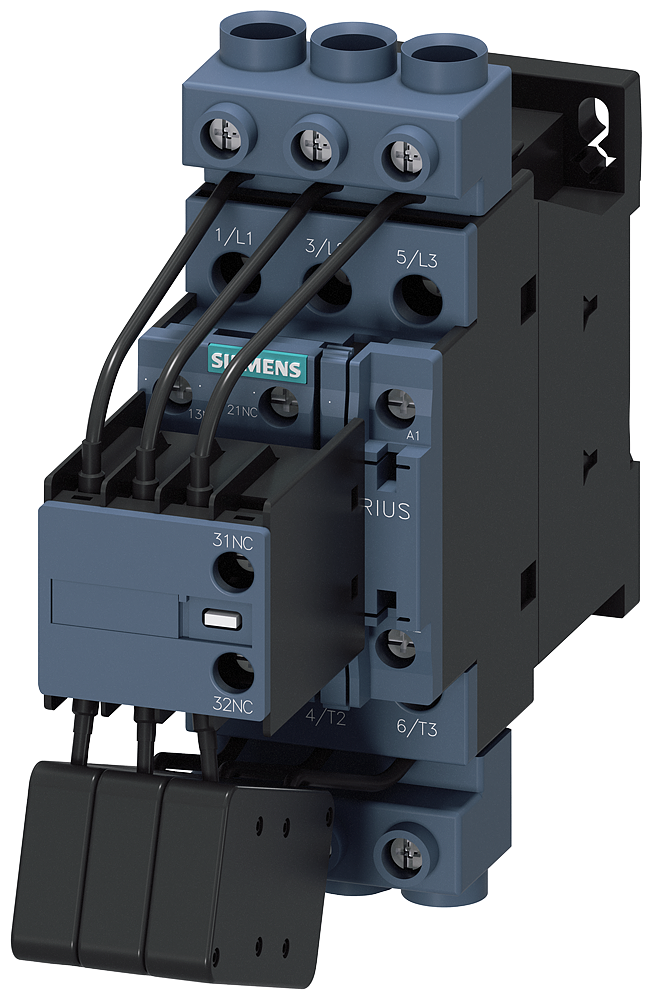

Contactor. AC-6b. 33kvar/400v. 1NO+2NC. 24 V AC 50/60 HZ. 3-pole. size s0 screwterminal

Contactor. AC-6b. 33kvar/400v. 1NO+2NC. 24 V AC 50/60 HZ. 3-pole. size s0 screwterminal

Manufacturer highlights

Additional manufacturer notes

Feed description
S-A 3RT26281AC25 CAP CONTACTOR 33KV
Invoice description
CAP CONTACTOR 33KVAR 1NO+2NC 24VAC

Specifications

UPC
804766233708
UNSPSC
39121529
Country of Origin
DE
Number Of Poles
3
Design of the fuse link / for short-circuit protection of the main circuit / with type of coordination 1 / required
gG:100A(690V,50kA)
Number Of Poles
3
Operating current / of auxiliary contacts / at DC-12 / at 600 V
0.15 A
Operational reactive power / at 110/120 V / at 60 Hz / 1 phase / at ambient temperature 40 °C / rated value
4.8 kvar
Operational reactive power / at 110/120 V / at 60 Hz / 3 phase / at ambient temperature 40 °C / rated value
8.3 kvar
Operational reactive power / at AC-6b / at 400 V / at 50/60 Hz / at ambient temperature 60 °C / rated value / maximum
33 kvar
Product extension / Auxiliary switch
No
Shock resistance / at rectangular impulse / at AC
8,3g/5ms,5,3g/10ms
Size of contactor
S0
Type of connectable conductor cross-sections / for main contacts / finely stranded / with core end processing
1x(2.5...16mm²)

Rate this product

Do you have a question about 3RT26281AC25?

Videos & documents

Documents

3RT26281AC25

$399.16 / EA
