$738.92 / EA
manufacturer discounts
learn about discounts
- $662.48 for $1,500.00+
- $637.00 for $2,500.00+
- $611.52 for $3,500.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders

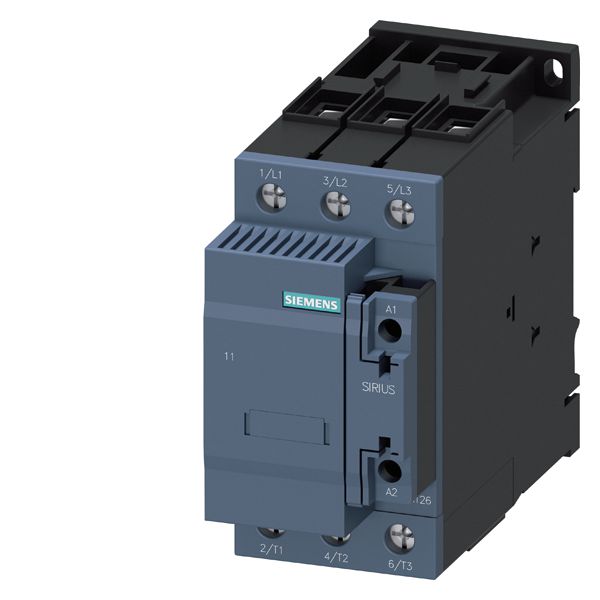

Contactor, AC-6b, 50kvar/400V, 2 nc, AC(50-60HZ)//DC operation 20 to 33V AC/DC,3p., size s2 screw terminal
Contactor, AC-6b, 50kvar/400V, 2 nc, AC(50-60HZ)//DC operation 20 to 33V AC/DC,3p., size s2 screw terminal
150
- UPC
- 804766160639
- UNSPSC
- 39121529
- Country of Origin
- DE
- Number Of Poles:
- 3
- Design of the fuse link / for short-circuit protection of the main circuit / with type of coordination 1 / required:
- gG:160A(690V,50kA)
- Number Of Poles:
- 3
- Operating current / of auxiliary contacts / at DC-12 / at 600 V:
- 0.15 A
- Operational reactive power / at 110/120 V / at 60 Hz / 1 phase / at ambient temperature 40 °C / rated value:
- 7.9 kvar
- Operational reactive power / at 110/120 V / at 60 Hz / 3 phase / at ambient temperature 40 °C / rated value:
- 14 kvar
- Operational reactive power / at AC-6b / at 400 V / at 50/60 Hz / at ambient temperature 60 °C / rated value / maximum:
- 50 kvar
- Product extension / Auxiliary switch:
- Yes
- Shock resistance / at rectangular impulse / at AC:
- 6,8g/5ms,4g/10ms
- Size of contactor:
- S2
- Type of connectable conductor cross-sections / for main contacts / finely stranded / with core end processing:
- 2x(1...25mm²),1x(1...35mm²)
