3RX9501-2BA00
SKU: 3RX9501-2BA00
MPN: 3RX9501-2BA00
Key specs
View all- Connections / Output
- spring-loadedterminalconnectionoutput(0.2...2.5mm²)/diagnosis(0.14...1.5mm²)
- Connections / input
- spring-loadedterminalconnectioninput(0.2...2.5mm2)/diagnosis(0.14...1.5mm2)
- Efficiency / at Ua rated, Ia rated
- 84 %
- Output overvoltage protection
- yes(<35V)
- electromagnetic compatibility (EMC) / emitted interference
- classBaccordingtoEN55022,IEC61000-6-3
- electromagnetic compatibility (EMC) / interference immunity
- EN61000-6-2,EN61000-4-2/-3/-4/-5/-11
Description
Product overview

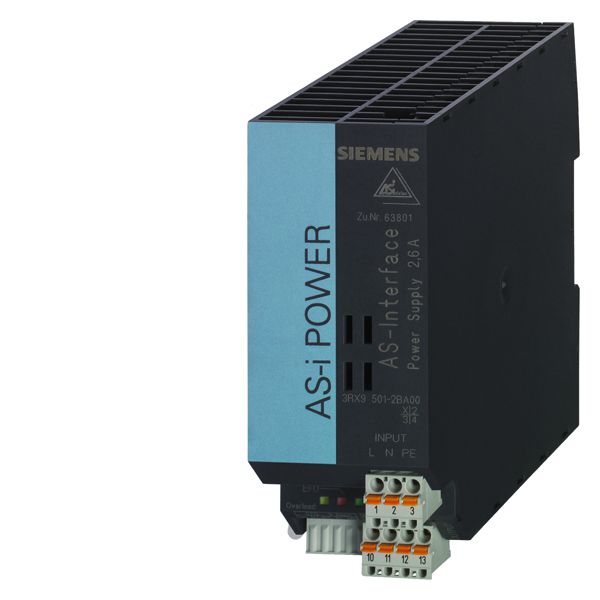

As-i power 2.6 a, max. 100 w 120 v/230 V AC as-interface power supply unit, IP20 in 120 V AC / 230 v out as-i, 2.6 a (30 V DC) limitation of the output power max. 100 w, IP20 with integr. ground fault detection with as-i data decoupling
As-i power 2.6 a, max. 100 w 120 v/230 V AC as-interface power supply unit, IP20 in 120 V AC / 230 v out as-i, 2.6 a (30 V DC) limitation of the output power max. 100 w, IP20 with integr. ground fault detection with as-i data decoupling
Manufacturer highlights
Additional manufacturer notes
- Short name
- S-A
- Feed description
- S-A 3RX9501-2BA00 ASI PS,120/230VAC
- Invoice description
- ASI PS,120/230VAC 30VDC,2.6A CLASS 2
Specifications
- UPC
- 754554945057
- UNSPSC
- 39122221
- Country of Origin
- RO
- Connections / Output
- spring-loadedterminalconnectionoutput(0.2...2.5mm²)/diagnosis(0.14...1.5mm²)
- Connections / input
- spring-loadedterminalconnectioninput(0.2...2.5mm2)/diagnosis(0.14...1.5mm2)
- Efficiency / at Ua rated, Ia rated
- 84 %
- Output overvoltage protection
- yes(<35V)
- electromagnetic compatibility (EMC) / emitted interference
- classBaccordingtoEN55022,IEC61000-6-3
- electromagnetic compatibility (EMC) / interference immunity
- EN61000-6-2,EN61000-4-2/-3/-4/-5/-11
- humidity rating
- climaticclassDIN50010,relativehumiditymax.100%withoutcondensation
- input / input voltage / built-in
- T3.15(notaccessible)
- input / recommended circuit breaker / (IEC 898) / in the main supply line
- 6A,characteristicC
- protection class / ( EN 60 950/IEC 950 )
- I
