Call Us Today: (800) 462-7733
Dale Electric Supply Co Inc

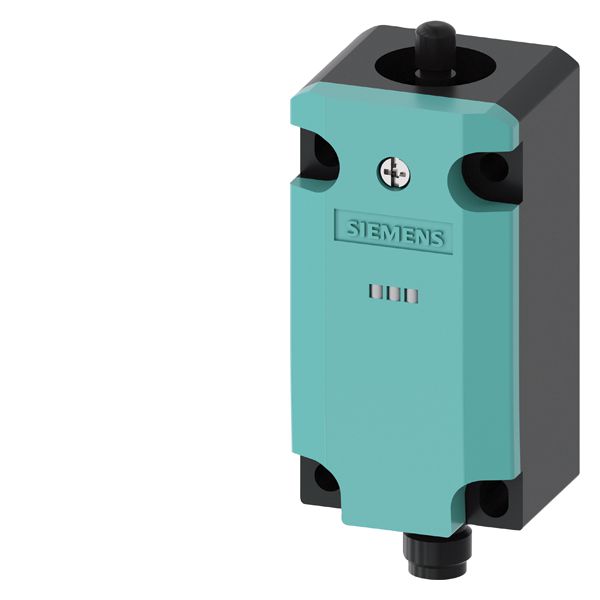

Basic switch for position switch 3SE51 metal enclosure 40 mm according to en 50041 1 no/1 nc quick action contacts with m12 connector, 5-pole, fixed with 2 leds, yellow/green, 24 V DC without actuator head pin assignment pin1=21, pin2=22 pin3=13 and led green, pin4=14 and led yellow, pin5=ground led
Basic switch for position switch 3SE51 metal enclosure 40 mm according to en 50041 1 no/1 nc quick action contacts with m12 connector, 5-pole, fixed with 2 leds, yellow/green, 24 V DC without actuator head pin assignment pin1=21, pin2=22 pin3=13 and led green, pin4=14 and led yellow, pin5=ground led

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

3SE51141CA001AF3

$223.30 / EA

manufacturer discounts
learn about discounts

  • $200.20 for $1,500.00+
  • $192.50 for $2,500.00+
  • $184.80 for $3,500.00+

In stock (0)
Lead time: over 7 days
may be longer on small orders

Basic switch for position switch 3SE51 metal enclosure 40 mm according to en 50041 1 no/1 nc quick action contacts with m12 connector, 5-pole, fixed with 2 leds, yellow/green, 24 V DC without actuator head pin assignment pin1=21, pin2=22 pin3=13 and led green, pin4=14 and led yellow, pin5=ground led

Basic switch for position switch 3SE51 metal enclosure 40 mm according to en 50041 1 no/1 nc quick action contacts with m12 connector, 5-pole, fixed with 2 leds, yellow/green, 24 V DC without actuator head pin assignment pin1=21, pin2=22 pin3=13 and led green, pin4=14 and led yellow, pin5=ground led

150

UPC
754554954400
UNSPSC
39121521
Country of Origin
DE
Ambient temperature / during operation / maximum:
60 °C
Ambient temperature / during operation / minimum:
-25 °C
Ambient temperature / during storage / maximum:
90 °C
Ambient temperature / during storage / minimum:
-40 °C
Cable entry type:
M12plug
Continuous current / of the C characteristic MCB:
1 A
Continuous current / of the DIAZED fuse link gG:
4 A
Continuous current / of the quick DIAZED fuse link:
4 A
Design of the housing / acc. to standard:
Yes
Type of voltage / of the supply voltage / of the optional LED indicator:
DC
