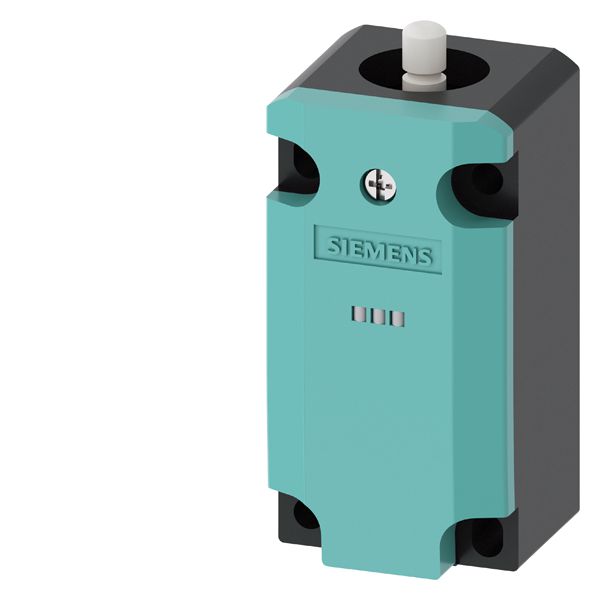

Basic switch for position switch 3SE5132 Plastic enclosure 40 mm according to EN 50041 Device connection 1 x (M20 x 1.5) with 2 LEDs, yellow/green, 24 V DC 230V AC 1 NO/2 NC slow-action contacts without actuator head
Basic switch for position switch 3SE5132 Plastic enclosure 40 mm according to EN 50041 Device connection 1 x (M20 x 1.5) with 2 LEDs, yellow/green, 24 V DC 230V AC 1 NO/2 NC slow-action contacts without actuator head

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

3SE51323KA00

$151.51 / EA

manufacturer discounts
learn about discounts

  • $135.84 for $1,500.00+
  • $130.61 for $2,500.00+
  • $125.39 for $3,500.00+
Available to order

Local stock: 0
Lead time: over 7 working days

Basic switch for position switch 3SE5132 Plastic enclosure 40 mm according to EN 50041 Device connection 1 x (M20 x 1.5) with 2 LEDs, yellow/green, 24 V DC 230V AC 1 NO/2 NC slow-action contacts without actuator head

Basic switch for position switch 3SE5132 Plastic enclosure 40 mm according to EN 50041 Device connection 1 x (M20 x 1.5) with 2 LEDs, yellow/green, 24 V DC 230V AC 1 NO/2 NC slow-action contacts without actuator head

150

UPC
040892620320
UNSPSC
39121521
Country of Origin
DE
Ambient temperature / during operation / maximum:
60 °C
Ambient temperature / during operation / minimum:
-25 °C
Ambient temperature / during storage / maximum:
90 °C
Ambient temperature / during storage / minimum:
-40 °C
Cable entry type:
1x(M20x1.5)
Continuous current / of the C characteristic MCB:
1 A
Continuous current / of the DIAZED fuse link gG:
6 A
Continuous current / of the quick DIAZED fuse link:
10 A
Design of the housing / acc. to standard:
Yes
Operating frequency / rated value / minimum:
50 Hz
