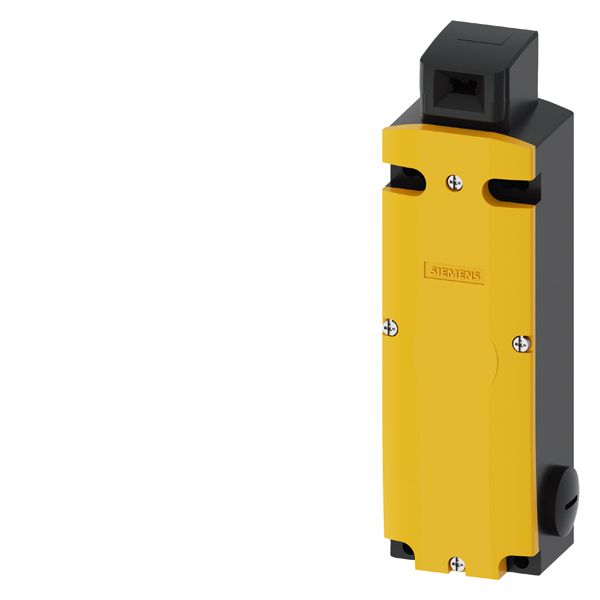

Siemens Industry, Inc. 3SE5312-0SB11 Limit Switch product image

Siemens Industry, Inc. 3SE5312-0SB11 Limit Switch product image view 2

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

Videos & documents

Documents

Spec Sheet

3SE5312-0SB11

SKU: 3SE5312-0SB11

MPN: 3SE5312-0SB11

Purchase options

$706.38 / EA

manufacturer discounts
learn about discounts

$633.31 for $1,500.00+
$608.95 for $2,500.00+
$584.59 for $3,500.00+

Available to order

Lead time: over 7 working days

Lead time: over 7 working days
Secure checkout with protected order handling.
Single-unit ordering available.

Dale Electric Supply ships electrical products across the U.S. and supports international orders through customer service. Local delivery may be available in defined regional delivery zones, and larger same-manufacturer orders may qualify for factory-direct shipping. Shipping and fulfillment can vary by product, vendor, manufacturer program, stock state, destination, quantity, and quote workflow.

Customer Service International Sales Factory Direct Shipping

Hill Electric Supply

Established 1948

Secure checkout and protected order handling
Phone support for compatibility and stock questions

Need cross-reference help?

Send us the SKU, manufacturer, photo, or catalog reference. We can cross-reference, confirm availability, and help source hard-to-find electrical supplies.

Contact support Browse catalog Search products

Key specs

View all

Ambient temperature / during storage / maximum: 80 °C
Ambient temperature / during storage / minimum: -40 °C
Cable entry type: 3x(M20x1.5)
Continuous current / of the C characteristic MCB: 1 A
Continuous current / of the DIAZED fuse link gG: 6 A
Continuous current / of the quick DIAZED fuse link: 10 A

Description

Product overview

Safety position switch with tumbler locking force 2600 n 5 directions of approaches solenoid-locked magnet voltage 24 V DC monitoring actuator 2 nc/1 no monitoring magnet 2 nc/1 no supplied without actuator. actuator 3SE5000-0av0. please order separately

Manufacturer highlights

Additional manufacturer notes

Feed description: S-A 3SE5312-0SB11 INTERLOCK SW,SOLE
Invoice description: INTERLOCK SW,SOLENOID LOCK,24VDC

Specifications

UPC: 754554951447

UNSPSC: 39122213

Country of Origin: DE

Ambient temperature / during storage / maximum: 80 °C

Ambient temperature / during storage / minimum: -40 °C

Cable entry type: 3x(M20x1.5)

Continuous current / of the C characteristic MCB: 1 A

Continuous current / of the DIAZED fuse link gG: 6 A

Continuous current / of the quick DIAZED fuse link: 10 A

Number of NC contacts / for the position monitoring of the activation element: 2

Number of NC contacts / for the position monitoring of the locking element: 2

Operating frequency / rated value / maximum: 60 Hz

Operating frequency / rated value / minimum: 50 Hz
