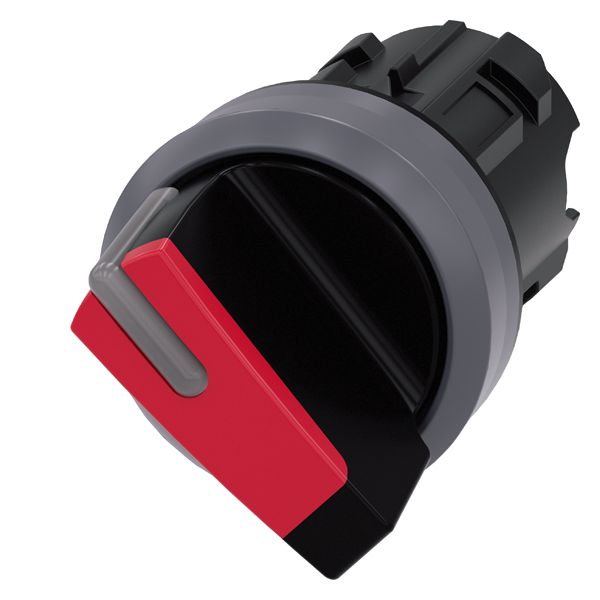

Siemens Industry, Inc. 3SU10322BF200AA0 Push Button Switch product image

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

Videos & documents

Product videos

Product video

Documents

Spec Sheet

3SU10322BF200AA0

SKU: 3SU10322BF200AA0

MPN: 3SU10322BF200AA0

Purchase options

$48.37 / EA

manufacturer discounts
learn about discounts

$43.37 for $1,500.00+
$41.70 for $2,500.00+
$40.03 for $3,500.00+

Available to order

Lead time: over 7 working days

Lead time: over 7 working days
Secure checkout with protected order handling.
Single-unit ordering available.

Dale Electric Supply ships electrical products across the U.S. and supports international orders through customer service. Local delivery may be available in defined regional delivery zones, and larger same-manufacturer orders may qualify for factory-direct shipping. Shipping and fulfillment can vary by product, vendor, manufacturer program, stock state, destination, quantity, and quote workflow.

Customer Service International Sales Factory Direct Shipping

Buying confidence

Established 1948
Secure checkout and protected order handling
Phone support for compatibility and stock questions

Need cross-reference help?

Send us the SKU, manufacturer, photo, or catalog reference. We can cross-reference, confirm availability, and help source hard-to-find electrical supplies.

Contact support Browse catalog Search products

Key specs

View all

Actuating angle / clockwise: 90 °
Ambient temperature / during operation / maximum: 70 °C
Ambient temperature / during operation / minimum: -25 °C
Ambient temperature / during storage / maximum: 80 °C
Ambient temperature / during storage / minimum: -40 °C
Mechanical service life (switching cycles) / typical: 1000000

Description

Product overview

SELECTOR SWITCH, CAN BE ILLUM., 22MM, ROUND, PLASTIC WITH METAL FRONT RING, RED, SHORT SELECTOR SWITCH, 2 SWITCH POSITIONS O-I, LATCHING, ACTUATING ANGLE 90 DEG., 10 30H/13 30H

Manufacturer highlights

Additional manufacturer notes

Short name: S-A
Feed description: S-A 3SU10322BF200AA0 SEL SW, 2POS,
Invoice description: SEL SW, 2POS, MTND, SHORT HANDLE, RED

Specifications

UPC: 804766066498

UNSPSC: 39122216

Country of Origin: CZ

Actuating angle / clockwise: 90 °

Ambient temperature / during operation / maximum: 70 °C

Ambient temperature / during operation / minimum: -25 °C

Ambient temperature / during storage / maximum: 80 °C

Ambient temperature / during storage / minimum: -40 °C

Mechanical service life (switching cycles) / typical: 1000000

Number of switching positions: 2

Operating frequency / maximum: 1800 1/h

Product component / front ring: Yes

Product extension / optional / Light source: Yes
