$179.32 / EA
manufacturer discounts
learn about discounts
- $160.77 for $1,500.00+
- $154.59 for $2,500.00+
- $148.40 for $3,500.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders

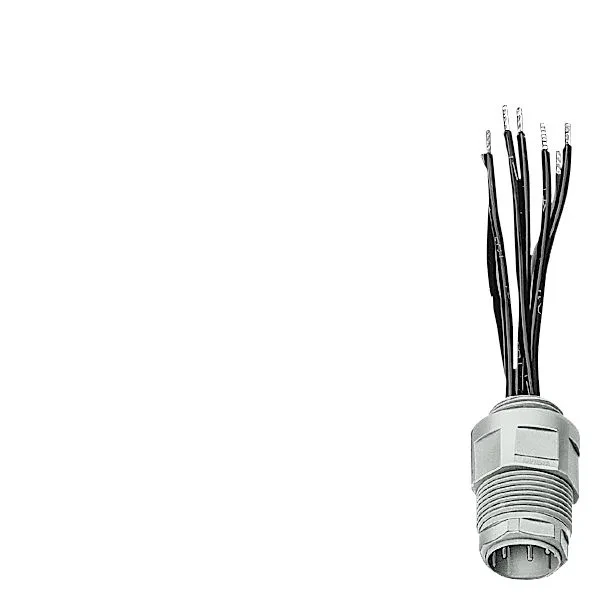

FOR CABLE PLUG 3SY3 123 FOR M20 X 1.5, SOCKET (6-POLE + PEN) ACCESSORIES FOR POSITION SWITCH
FOR CABLE PLUG 3SY3 123 FOR M20 X 1.5, SOCKET (6-POLE + PEN) ACCESSORIES FOR POSITION SWITCH
150
- UPC
- 754554864907
- UNSPSC
- 39122230
- Country of Origin
- DE
- Product designation:
- Plugconnector6-pin+PE,M20for3SE5
4AV2102-2EB000A
$950.59 /ea
POWER SUPPLY PHASES 1 PN(KW) 0,024 UPRI(V) 230-115 USEC(V DC) 24 ISEC(A DC) 1 F(HZ) 50...60 VECTOR GR./SHIELD WNG. II0 /0 PROTECTION CL. I TA/ISOKL 60 /B W(%) 5 IP00 TYPE OF TERMINALS SCREW/TAB CONNECTION INSTALLATION MOUNTING RAILS EN 61558-2-6, EN61131-2 >SAFETY ISOLATING TRANSFORMER
| Attributed Data | Included |
|---|---|
| Certificate of suitability | CE/cRUus Yes |
| Construction form of the iron core | EI66-88/18 Yes |
| Mounting type | standardrail Yes |
| Operating resource protection class | I Yes |
| Phase number / of the inputs | 1 Yes |
| Product designation | 4AV2102-2EB00-0A Yes |
| Product function / Insulation monitoring | No Yes |
| Product function / Short-circuit and overload proof | Yes Yes |
| Product function / Temperature monitoring | No Yes |
| Product function / varistor protective wiring | Yes Yes |
| Protection class IP | IP00 Yes |
| Thermal class / acc. to IEC 60085 | B Yes |
| Type of current / _1 / at output | DC Yes |
| Type of current / of the inputs | AC Yes |
| Type of electrical connection / at input / for main current circuit | screw-typeterminals/tabterminals Yes |
| Vector group | Ii0 Yes |
| product brand name | SIDAC Yes |
3SX1998
$27.78 /ea
ACC_SWITCH 3SX1998-
3SY3127
$78.88 /ea
For coupling plug 3rx1 505 for 250V, 4a m12, for m20 x 1.5, socket (4-pole), accessories for position switch
| Attributed Data | Included |
|---|---|
| Product designation | Plugconnector4-pin,M12for3SE5 Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
4AV2102-2EB000A
POWER SUPPLY PHASES 1 PN(KW) 0,024 UPRI(V) 230-115 USEC(V DC) 24 ISEC(A DC) 1 F(HZ) 50...60 VECTOR GR./SHIELD WNG. II0 /0 PROTECTION CL. I TA/ISOKL 60 /B W(%) 5 IP00 TYPE OF TERMINALS SCREW/TAB CONNECTION INSTALLATION MOUNTING RAILS EN 61558-2-6, EN6...
$950.59 / EA
|
3SX1998
ACC_SWITCH 3SX1998-
$27.78 / EA
|
3SY3127
For coupling plug 3rx1 505 for 250V, 4a m12, for m20 x 1.5, socket (4-pole), accessories for position switch
$78.88 / EA
|
|
| Attributed Data | |||
| Ambient temperature / rated value | 60 °C 60 °C | ||
| Certificate of suitability | CE/cRUus CE/cRUus | ||
| Construction form of the iron core | EI66-88/18 EI66-88/18 | ||
| Depth | 111 m 111 m | ||
| Electrical input frequency / maximum | 60 Hz 60 Hz | ||
| Electrical input frequency / minimum | 50 Hz 50 Hz | ||
| Height | 136 m 136 m | ||
| Input current / _1 / rated value | 0.2 A 0.2 A | ||
| Input current / _2 / rated value | 0.3 A 0.3 A | ||
| Input voltage / _1 / rated value | 230 V 230 V | ||
| Input voltage / _2 / rated value | 115 V 115 V | ||
| Input voltage / maximum | 243.80 V 243.80 V | ||
| Input voltage / minimum | 103.5 V 103.5 V | ||
| Mounting type | standardrail standardrail | ||
| Operating resource protection class | I I | ||
| Output current / _1 / rated value | 1 A 1 A | ||
| Output current / at DC / at 40 °C / rated value / maximum | 1.2 A 1.2 A | ||
| Output current / at DC / at 60 °C / rated value / maximum | 1 A 1 A | ||
| Output voltage / _1 / rated value | 24 V 24 V | ||
| Output voltage / of the measurement signal / at analog output / at DC / maximum | 28.8 V 28.8 V | ||
| Output voltage / of the measurement signal / at analog output / at DC / minimum | 20.4 V 20.4 V | ||
| Phase number / of the inputs | 1 1 | ||
| Product designation | 4AV2102-2EB00-0A 4AV2102-2EB00-0A | Plugconnector4-pin,M12for3SE5 Plugconnector4-pin,M12for3SE5 | |
| Product function / Insulation monitoring | No No | ||
| Product function / Short-circuit and overload proof | Yes Yes | ||
| Product function / Temperature monitoring | No No | ||
| Product function / varistor protective wiring | Yes Yes | ||
| Protection class IP | IP00 IP00 | ||
| Relative residual ripple / of the output voltage 1 / for main current circuit / maximum | 5 % 5 % | ||
| Thermal class / acc. to IEC 60085 | B B | ||
| Type of current / _1 / at output | DC DC | ||
| Type of current / of the inputs | AC AC | ||
| Type of electrical connection / at input / for main current circuit | screw-typeterminals/tabterminals screw-typeterminals/tabterminals | ||
| Vector group | Ii0 Ii0 | ||
| Width | 45 m 45 m | ||
| product brand name | SIDAC SIDAC | ||
| Add a product to the cart | Show more details | Show more details | Show more details |
