$1,702.53 / EA
manufacturer discounts
learn about discounts
- $1,526.41 for $1,500.00+
- $1,467.70 for $2,500.00+
- $1,408.99 for $3,500.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders

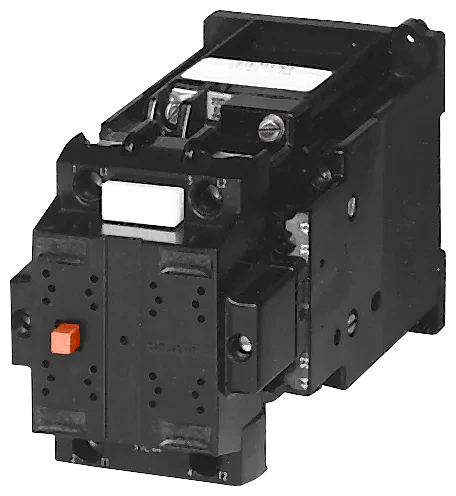

DC operation DC 230v auxiliary contacts 22 (2NO+2NC) DC-3 and 5,ratd.operat.curr.32a contactor, size 2, 2-pole
DC operation DC 230v auxiliary contacts 22 (2NO+2NC) DC-3 and 5,ratd.operat.curr.32a contactor, size 2, 2-pole
150
- UPC
- 754554185040
- UNSPSC
- 39121521
- Country of Origin
- DE
- Number Of Poles:
- 2
- Ambient temperature / during operation / maximum:
- 55 °C
- Ambient temperature / during operation / minimum:
- -25 °C
- Number Of Poles:
- 2
- Operating current / at DC-3 / at DC-5 / at 220 V / rated value:
- 32 A
- Operating current / at DC-3 / at DC-5 / at 440 V / rated value:
- 29 A
- Operating current / at DC-3 / at DC-5 / at 600 V / rated value:
- 21 A
- Operating current / at DC-3 / at DC-5 / at 750 V / rated value:
- 7.5 A
- Operating power / at DC-3 / at DC-5 / at 110 V / rated value:
- 2.5 kW
- Operating power / at DC-3 / at DC-5 / at 220 V / rated value:
- 5 kW
- Protection class IP:
- IP00
- Type of voltage:
- DC
