3TC48170BU0
SKU: 3TC48170BU0
MPN: 3TC48170BU0
Key specs
View all- Number Of Poles
- 2
Description
Product overview

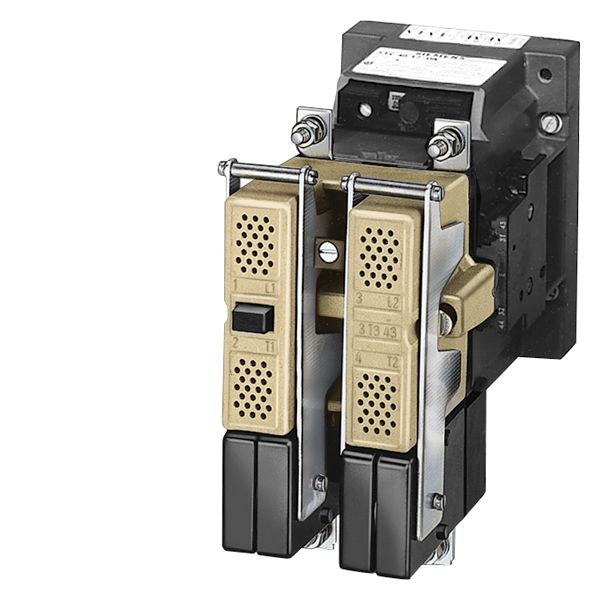

CONTACTOR, SIZE 4, 2-POLE DC-3 AND 5,RATD.OPERAT.CURR.75A AUXILIARY CONTACTS 22(2NO+2NC) AC OPERATION AC 240V 50HZ/AC 288V 60HZ
CONTACTOR, SIZE 4, 2-POLE DC-3 AND 5,RATD.OPERAT.CURR.75A AUXILIARY CONTACTS 22(2NO+2NC) AC OPERATION AC 240V 50HZ/AC 288V 60HZ
Manufacturer highlights
Additional manufacturer notes
- Short name
- S-A
- Feed description
- S-A 3TC48170BU0 CONTACTOR,S4,2P,240
- Invoice description
- CONTACTOR,S4,2P,240VAC 50HZ,288VAC 60HZ
Specifications
- UPC
- 887621063498
- UNSPSC
- 39121529
- Country of Origin
- DE
- Number Of Poles
- 2
- Ambient temperature / during operation / maximum
- 55 °C
- Ambient temperature / during operation / minimum
- -25 °C
- Number Of Poles
- 2
- Operating current / at DC-3 / at DC-5 / at 220 V / rated value
- 75 A
- Operating current / at DC-3 / at DC-5 / at 440 V / rated value
- 75 A
- Operating current / at DC-3 / at DC-5 / at 600 V / rated value
- 75 A
- Operating current / at DC-3 / at DC-5 / at 750 V / rated value
- 75 A
- Operating power / at DC-3 / at DC-5 / at 110 V / rated value
- 6.5 kW
- Operating power / at DC-3 / at DC-5 / at 220 V / rated value
- 13 kW
- Protection class IP
- IP00
- Type of voltage
- AC
