3TC52140BP0
SKU: 3TC52140BP0
MPN: 3TC52140BP0
Key specs
View all- Number Of Poles
- 2
Description
Product overview

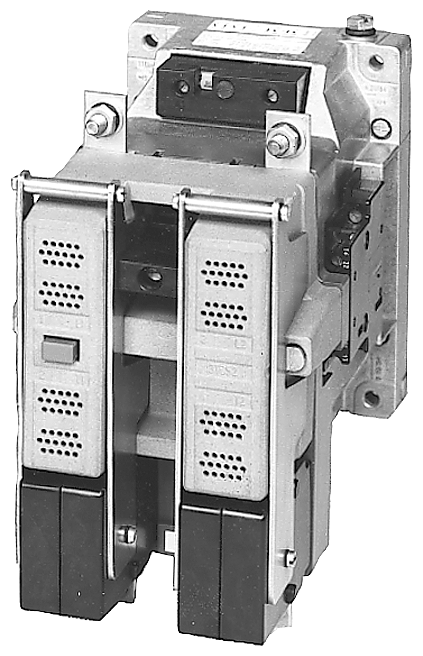

Contactor. Size 8. 2-pole. DC 4. Rated operating current 220 A Auxiliary switch44E (4 NO+4 NC) 230V AC 50Hz. 277 V 60 Hz AC operation
Contactor. Size 8. 2-pole. DC 4. Rated operating current 220 A Auxiliary switch44E (4 NO+4 NC) 230V AC 50Hz. 277 V 60 Hz AC operation
Manufacturer highlights
Additional manufacturer notes
- Short name
- S-A
- Feed description
- S-A 3TC52140BP0 CONTACTOR SIZE 8 2-
- Invoice description
- CONTACTOR SIZE 8 2-POLE
Specifications
- UPC
- 804766756474
- UNSPSC
- 39121529
- Country of Origin
- DE
- Number Of Poles
- 2
- Ambient temperature / during operation / maximum
- 55 °C
- Ambient temperature / during operation / minimum
- -25 °C
- Number Of Poles
- 2
- Operating current / at DC-3 / at DC-5 / at 220 V / rated value
- 220 A
- Operating current / at DC-3 / at DC-5 / at 440 V / rated value
- 220 A
- Operating current / at DC-3 / at DC-5 / at 600 V / rated value
- 220 A
- Operating current / at DC-3 / at DC-5 / at 750 V / rated value
- 170 A
- Operating power / at DC-3 / at DC-5 / at 110 V / rated value
- 20 kW
- Operating power / at DC-3 / at DC-5 / at 220 V / rated value
- 41 kW
- Protection class IP
- IP00
- Type of voltage
- AC
