$18,197.62 / EA
manufacturer discounts
learn about discounts
- $16,315.10 for $1,500.00+
- $15,687.60 for $2,500.00+
- $15,060.10 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days

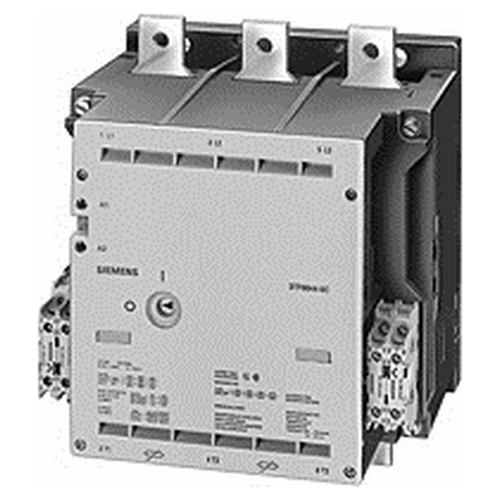

Contactor,IEC,Sirius Vacuum,3,Non-Reversing 200-240 50/60 Hz AC Coil Frame SizeS14,630A Panel Mount 4NO ( & ) 4NC Auxiliaries Varister Suppression Lugs (Not Included) Terminals Main Conducting Path UL File E31519 in Vol.1 Sec. 43
Contactor,IEC,Sirius Vacuum,3,Non-Reversing 200-240 50/60 Hz AC Coil Frame SizeS14,630A Panel Mount 4NO ( & ) 4NC Auxiliaries Varister Suppression Lugs (Not Included) Terminals Main Conducting Path UL File E31519 in Vol.1 Sec. 43
150
- UPC
- 754554188836
- UNSPSC
- 39121529
- Country of Origin
- TR
- Ambient temperature / during operation / maximum:
- 55 °C
- Ambient temperature / during operation / minimum:
- -25 °C
- Control version / of the switch operating mechanism:
- conventional
- Depth:
- 237 mm
- Height:
- 232 mm
- Operating current / at AC-3 / at 400 V / Rated value:
- 630.0 A
- Operating power / at AC-1 / at 400 V / rated value:
- 415.0 k kW
- Operating power / at AC-3 / at 400 V / rated value:
- 335.0 k kW
- Size of contactor:
- 14
- Width:
- 230 mm
