3UB81234CW2
SKU: 3UB81234CW2
MPN: 3UB81234CW2
Key specs
View all- Number Of Poles
- 3
- Size
- Frame A1
- Type
- Solid State Overload Relay
Description
Product overview

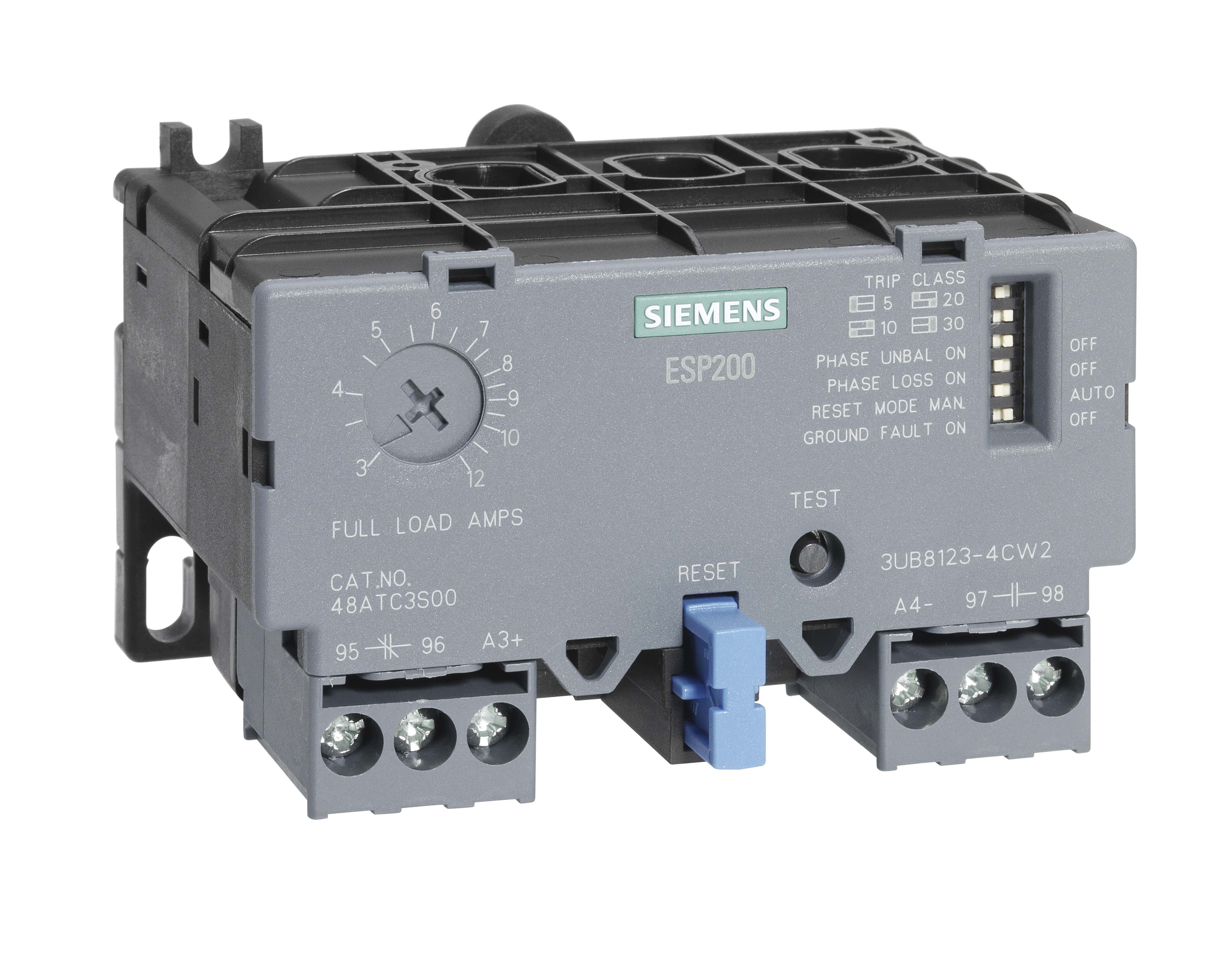

Esp200 catalog no 48atc3s00 solid state overload relay for motor protection 3 to 12 amp size a1, 3 phase class 5...30, switchable direct mounting and stand-alone main circuit windows auxiliary circuit scrw terminal manual automatic reset
Esp200 catalog no 48atc3s00 solid state overload relay for motor protection 3 to 12 amp size a1, 3 phase class 5...30, switchable direct mounting and stand-alone main circuit windows auxiliary circuit scrw terminal manual automatic reset
Manufacturer highlights
Additional manufacturer notes
- Short name
- S-A
- Feed description
- S-A 3UB81234CW2 Overload Relay,3-12
- Invoice description
- Overload Relay,3-12Amps,3Ph,ESP200
Specifications
- UPC
- 662643897203
- UNSPSC
- 39122330
- Country of Origin
- CZ
- Number Of Poles
- 3
- Size
- Frame A1
- Type
- Solid State Overload Relay
- Contact Configuration
- no/nc
- Contact Rating
- B600/R300
- Full Load Current Range
- 3 to 12 A
- Maximum Motor Voltage
- 600v
- Maximum Switching Voltage
- 600v
- Mounting
- direct/DIN Rail
- Number Of Poles
- 3
- Operating Temperature
- -25 to 60 C
- Reset Type
- auto/manual/remote
- Size
- Frame A1
- Standard
- cUL, CSA
- Sub Brand
- ESP200
- Temperature Trip Range
- -25 to 60 C
- Trip Type
- electronic
- Type
- Solid State Overload Relay
