3UG4513-1BR20
SKU: 3UG4513-1BR20
MPN: 3UG4513-1BR20
Key specs
View all- Ambient temperature / during operation / maximum
- 60 °C
- Ambient temperature / during operation / minimum
- -25 °C
- Control supply voltage / at AC / at 50 Hz / Rated value / maximum
- 690.0 V
- Control supply voltage / at AC / at 50 Hz / Rated value / minimum
- 160.0 V
- Control supply voltage / at AC / at 60 Hz / Rated value / maximum
- 690.0 V
- Control supply voltage / at AC / at 60 Hz / Rated value / minimum
- 160.0 V
Description
Product overview

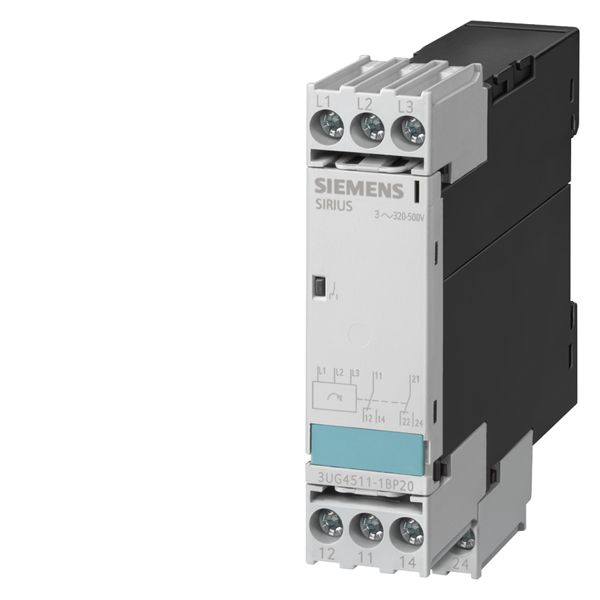

3ug3013-1b... follow-on product for screw terminal 2 changeover contacts delay time 0-20 s hysteresis 5% fixed AC 50 to 60 HZ 3x 160 to 690 v asymmetry 20% fixed settable undervoltage phase failure and sequence
3ug3013-1b... follow-on product for screw terminal 2 changeover contacts delay time 0-20 s hysteresis 5% fixed AC 50 to 60 HZ 3x 160 to 690 v asymmetry 20% fixed settable undervoltage phase failure and sequence
Manufacturer highlights
Additional manufacturer notes
- Short name
- S-A
- Feed description
- S-A 3UG4513-1BR20 3PH VOLTAGE MONIT
- Invoice description
- 3PH VOLTAGE MONITOR
Specifications
- UPC
- 754554928012
- UNSPSC
- 39121521
- Country of Origin
- DE
- Ambient temperature / during operation / maximum
- 60 °C
- Ambient temperature / during operation / minimum
- -25 °C
- Control supply voltage / at AC / at 50 Hz / Rated value / maximum
- 690.0 V
- Control supply voltage / at AC / at 50 Hz / Rated value / minimum
- 160.0 V
- Control supply voltage / at AC / at 60 Hz / Rated value / maximum
- 690.0 V
- Control supply voltage / at AC / at 60 Hz / Rated value / minimum
- 160.0 V
- Number of poles / for main current circuit
- 3
- Relative metering precision
- 5 %
- Surge voltage resistance / rated value
- 6 kV
- Type of electrical connection
- screw-typeterminals
