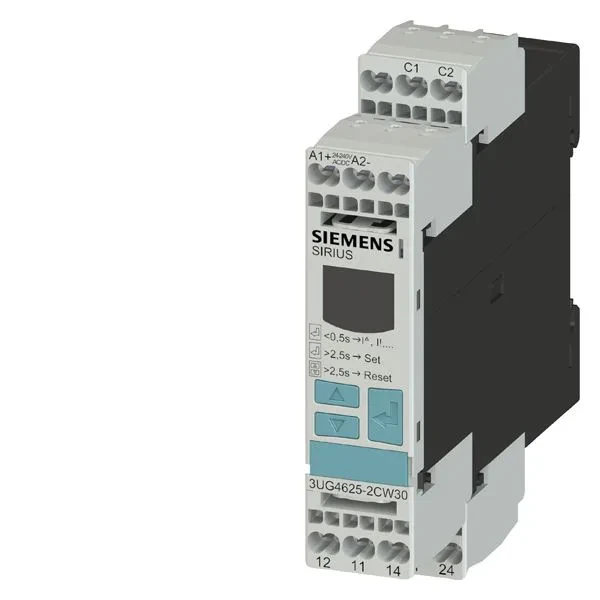

3UG46252CW30
SKU: 3UG46252CW30
MPN: 3UG46252CW30
Key specs
View all- Ambient temperature / during operation / maximum
- 60 °C
- Ambient temperature / during operation / minimum
- -25 °C
- Ambient temperature / during storage / maximum
- 85 °C
- Ambient temperature / during storage / minimum
- -40 °C
- Ampacity / of the output relay / at DC-13 / at 24 V
- 1 A
- Buffering time / in the event of power failure / minimum
- 10 ms
Description
Product overview
DIGITAL MONITORING RELAY FOR FAULT CURRENT MONITORING (W. CURRENT TRANSFORMER 3UL23) SETTING RANGE 0.03A TO 40A SEPARATE FOR ALARM THRESHOLD AND SWITCH-OFF VALUE SUPPLY VOLTAGE AC/DC 24 .. 240 V, 50 .. 60 HZ STARTUP AND TRIPPING DELAY 0.1 TO 20S SWITCH-OFF HYSTERESIS UP TO 50% ALARM HYSTERESIS 5% FIXED WIDTH 22.5 MM, 2 CO CONTACTS W. OR W/O ERROR LOG SPRING-LOADED TERMINAL
DIGITAL MONITORING RELAY FOR FAULT CURRENT MONITORING (W. CURRENT TRANSFORMER 3UL23) SETTING RANGE 0.03A TO 40A SEPARATE FOR ALARM THRESHOLD AND SWITCH-OFF VALUE SUPPLY VOLTAGE AC/DC 24 .. 240 V, 50 .. 60 HZ STARTUP AND TRIPPING DELAY 0.1 TO 20S SWITCH-OFF HYSTERESIS UP TO 50% ALARM HYSTERESIS 5% FIXED WIDTH 22.5 MM, 2 CO CONTACTS W. OR W/O ERROR LOG SPRING-LOADED TERMINAL
Manufacturer highlights
Additional manufacturer notes
- Short name
- S-A
- Feed description
- S-A 3UG46252CW30 DIGITAL MONITORING
- Invoice description
- DIGITAL MONITORING RELAY,40A,240V,60Hz
Specifications
- UPC
- 804766187476
- UNSPSC
- 39121106
- Country of Origin
- DE
- Ambient temperature / during operation / maximum
- 60 °C
- Ambient temperature / during operation / minimum
- -25 °C
- Ambient temperature / during storage / maximum
- 85 °C
- Ambient temperature / during storage / minimum
- -40 °C
- Ampacity / of the output relay / at DC-13 / at 24 V
- 1 A
- Buffering time / in the event of power failure / minimum
- 10 ms
- Continuous current / of the DIAZED fuse link of the output relay
- 4 A
- Operating frequency / rated value / maximum
- 400 Hz
- Operating frequency / rated value / minimum
- 16 Hz
