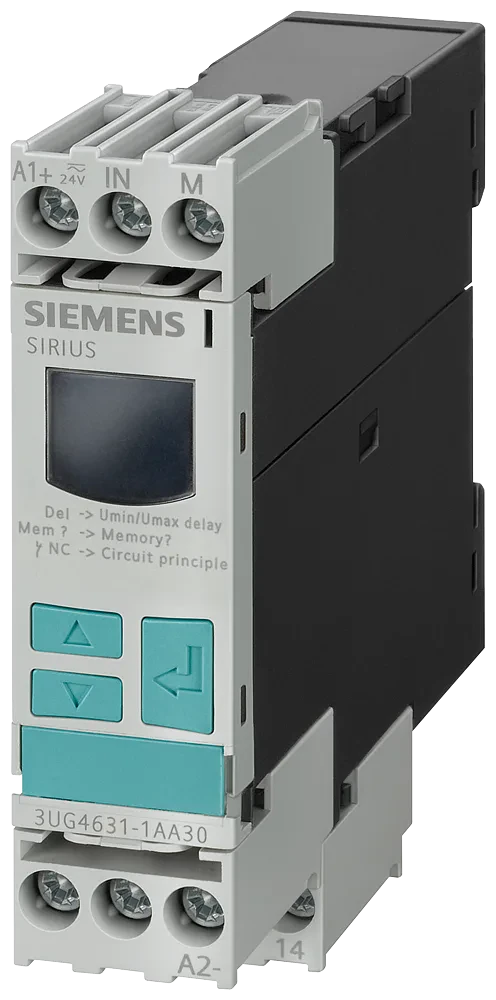

3UG4631-1AA30
SKU: 3UG4631-1AA30
MPN: 3UG4631-1AA30
Key specs
View all- Accuracy of digital display
- +/-1digit
- Adjustable response delay time / with lower or upper limit violation / Full-scale value
- 20 s
- Ambient temperature / during operation / maximum
- 60 °C
- Ambient temperature / during operation / minimum
- -25 °C
- Control supply voltage / at DC / Rated value / maximum
- 24.0 V
- Control supply voltage / at DC / Rated value / minimum
- 24.0 V
Description
Product overview
Digital monitoring relay voltage monitoring, 22.5 mm from 0.1 to 60 V AC/DC overshoot and undershoot 24 V AC/DC DC and AC 50 to 60 HZ spike delay 0 to 20 s hysteresis 0.1 to 30 v 1 changeover contact with or without error log screw terminal follow-on product for 3ug3531-1AC..
Digital monitoring relay voltage monitoring, 22.5 mm from 0.1 to 60 V AC/DC overshoot and undershoot 24 V AC/DC DC and AC 50 to 60 HZ spike delay 0 to 20 s hysteresis 0.1 to 30 v 1 changeover contact with or without error log screw terminal follow-on product for 3ug3531-1AC..
Manufacturer highlights
Additional manufacturer notes
- Short name
- S-A
- Feed description
- S-A 3UG4631-1AA30 DIGITAL MONITORIN
- Invoice description
- DIGITAL MONITORING RELAY
Specifications
- UPC
- 754554931494
- UNSPSC
- 39122333
- Country of Origin
- DE
- Accuracy of digital display
- +/-1digit
- Adjustable response delay time / with lower or upper limit violation / Full-scale value
- 20 s
- Ambient temperature / during operation / maximum
- 60 °C
- Ambient temperature / during operation / minimum
- -25 °C
- Control supply voltage / at DC / Rated value / maximum
- 24.0 V
- Control supply voltage / at DC / Rated value / minimum
- 24.0 V
- Relative metering precision
- 5 %
- Relative temperature-related measurement deviation
- 0.1 %
- Type of electrical connection
- screw-typeterminals
- Type of voltage / for monitoring
- AC/DC
Videos & documents
Documents
Similar items
Compare alternates in this category before ordering.
Similar item
3UG4621-1AW30
Digital monitoring relay current monitoring, 22.5 mm from 2 to 500 ma AC/DC overshoot and undershoot 24 to 240 V AC/DC DC and AC 50 to 60 HZ...
$362.85 / EA
Available to order
Similar item
3UG46222AW30
Digital monitoring relay current monitoring, 22.5mm from 0.05 to 10a AC/DC overshoot and undershoot AC/DC 24 to 240V DC and AC 50 to 60 HZ s...
$385.53 / EA
Available to order
Similar item

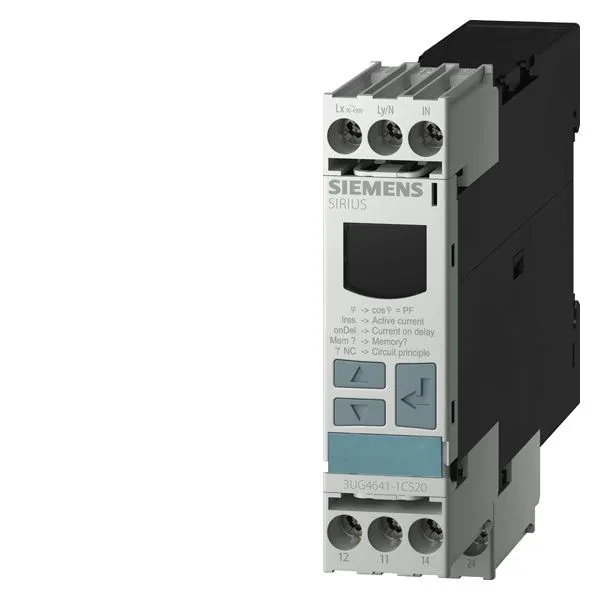

3UG46411CS20
