$399.53 / EA
manufacturer discounts
learn about discounts
- $358.20 for $1,500.00+
- $344.43 for $2,500.00+
- $330.65 for $3,500.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders
Digital monitoring relay cos phi and current monitoring from 90-690 V AC 0vershoot and undershoot self-supplied 50 to 60 HZ AC noise pulses delay 0.1 to 20 s hysteresis for (i) 0.1 to 2 a 2 change-over contacts with or without fault bufferscrew terminal successor product for 3ug3014
Digital monitoring relay cos phi and current monitoring from 90-690 V AC 0vershoot and undershoot self-supplied 50 to 60 HZ AC noise pulses delay 0.1 to 20 s hysteresis for (i) 0.1 to 2 a 2 change-over contacts with or without fault bufferscrew terminal successor product for 3ug3014
150
- UPC
- 754554937441
- UNSPSC
- 39122333
- Country of Origin
- DE
- Adaptable response value phase displacement angle / Full-scale value:
- 0.99 °
- Adaptable response value phase displacement angle / initial value:
- 0.1 °
- Adjustable response delay time / when starting / Full-scale value:
- 99 s
- Adjustable response delay time / with lower or upper limit violation / Full-scale value:
- 20 s
- Ambient temperature / during operation / maximum:
- 60 °C
- Ambient temperature / during operation / minimum:
- -25 °C
- Control supply voltage / at AC / at 60 Hz / Rated value / maximum:
- 690.0 V
- Control supply voltage / at AC / at 60 Hz / Rated value / minimum:
- 90.0 V
- Control supply voltage / rated value / maximum:
- 690 V
- Control supply voltage / rated value / minimum:
- 90 V
86403-GRNL
$249.69 /ea
RELAY, SOLID STATE 240V 45A 25-65HZ (91864038)
3UG4651-1AA30
$492.70 /ea

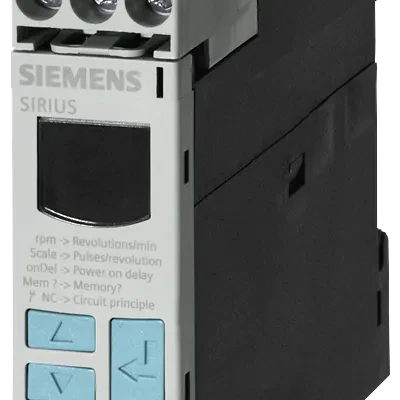

Digital monitoring relay speed monitoring from 0.1 to 2200 rev/min overshoot and undershoot AC/DC 24V DC and AC 50 to 60 HZ startup delay 1 to 900s tripping delayed 0.1 to 99.9s hysteresis 0.1 to 99 rev/min 1 changeover contact w. or w/o error log screw terminal replacement product f. 3ug3051
| Attributed Data | Included |
|---|---|
| Operating range factor control supply voltage rated value / at DC / Full-scale value | 1.1 Yes |
| Operating range factor control supply voltage rated value / at DC / initial value | 0.8 Yes |
3UG4651-1AW30
$528.60 /ea
Digital monitoring relay speed monitoring from 0.1 to 2200 rev/min overshoot and undershoot AC/DC 24 to 240V DC and AC 50 to 60 HZ startup delay 1 to 900s tripping delayed 0.1 to 99.9s hysteresis 0.1 to 99 rev/min 1 changeover contact w. or w/o error log screw terminal replacement product f. 3ug3051
| Attributed Data | Included |
|---|---|
| Operating range factor control supply voltage rated value / at DC / Full-scale value | 1.1 Yes |
| Operating range factor control supply voltage rated value / at DC / initial value | 0.8 Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
86403-GRNL
RELAY, SOLID STATE 240V 45A 25-65HZ (91864038)
$249.69 / EA
|
3UG4651-1AA30
Digital monitoring relay speed monitoring from 0.1 to 2200 rev/min overshoot and undershoot AC/DC 24V DC and AC 50 to 60 HZ startup delay 1 to 900s tripping delayed 0.1 to 99.9s hysteresis 0.1 to 99 rev/min 1 changeover contact w. or w/o error log sc...
$492.70 / EA
|
3UG4651-1AW30
Digital monitoring relay speed monitoring from 0.1 to 2200 rev/min overshoot and undershoot AC/DC 24 to 240V DC and AC 50 to 60 HZ startup delay 1 to 900s tripping delayed 0.1 to 99.9s hysteresis 0.1 to 99 rev/min 1 changeover contact w. or w/o error...
$528.60 / EA
|
|
| Attributed Data | |||
| Adjustable response value speed / Full-scale value | 2200 1/min 2200 1/min | ||
| Adjustable response value speed / initial value | 0.1 1/min 0.1 1/min | ||
| Buffering time / in the event of power failure / minimum | 10 ms 10 ms | ||
| Input current / at digital input 1 / maximum | 50 mA 50 mA | ||
| Input current / at digital input 2 / Full-scale value for signal<0> recognition | 1.2 mA 1.2 mA | ||
| Input current / at digital input 2 / Full-scale value for signal<1> recognition | 8.2 mA 8.2 mA | ||
| Input current / at digital input 2 / initial value for signal<1>-recognition | 2.1 mA 2.1 mA | ||
| Operating range factor control supply voltage rated value / at DC / Full-scale value | 1.1 1.1 | ||
| Operating range factor control supply voltage rated value / at DC / initial value | 0.8 0.8 | ||
| Add a product to the cart | Show more details | Show more details | Show more details |
